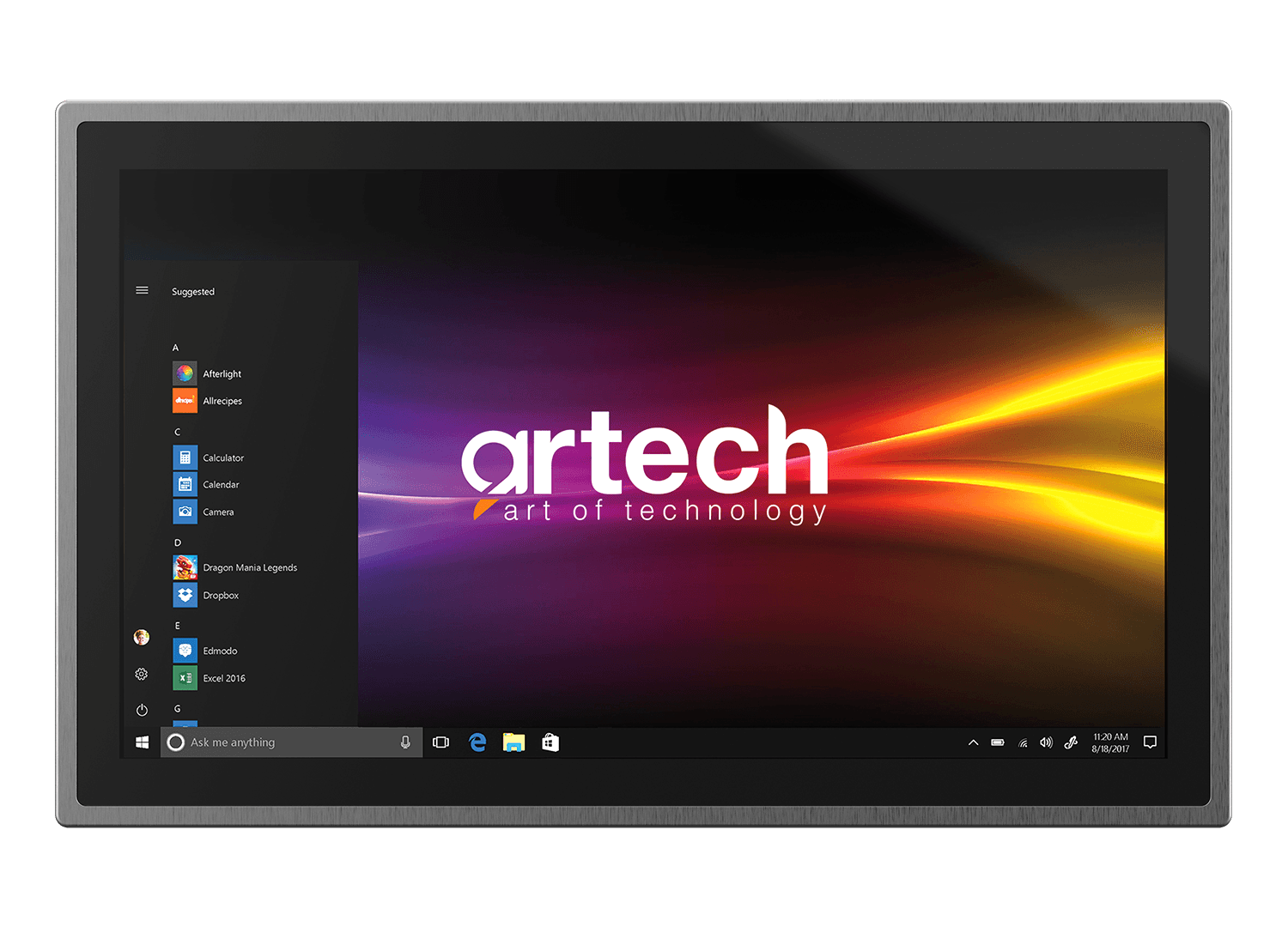

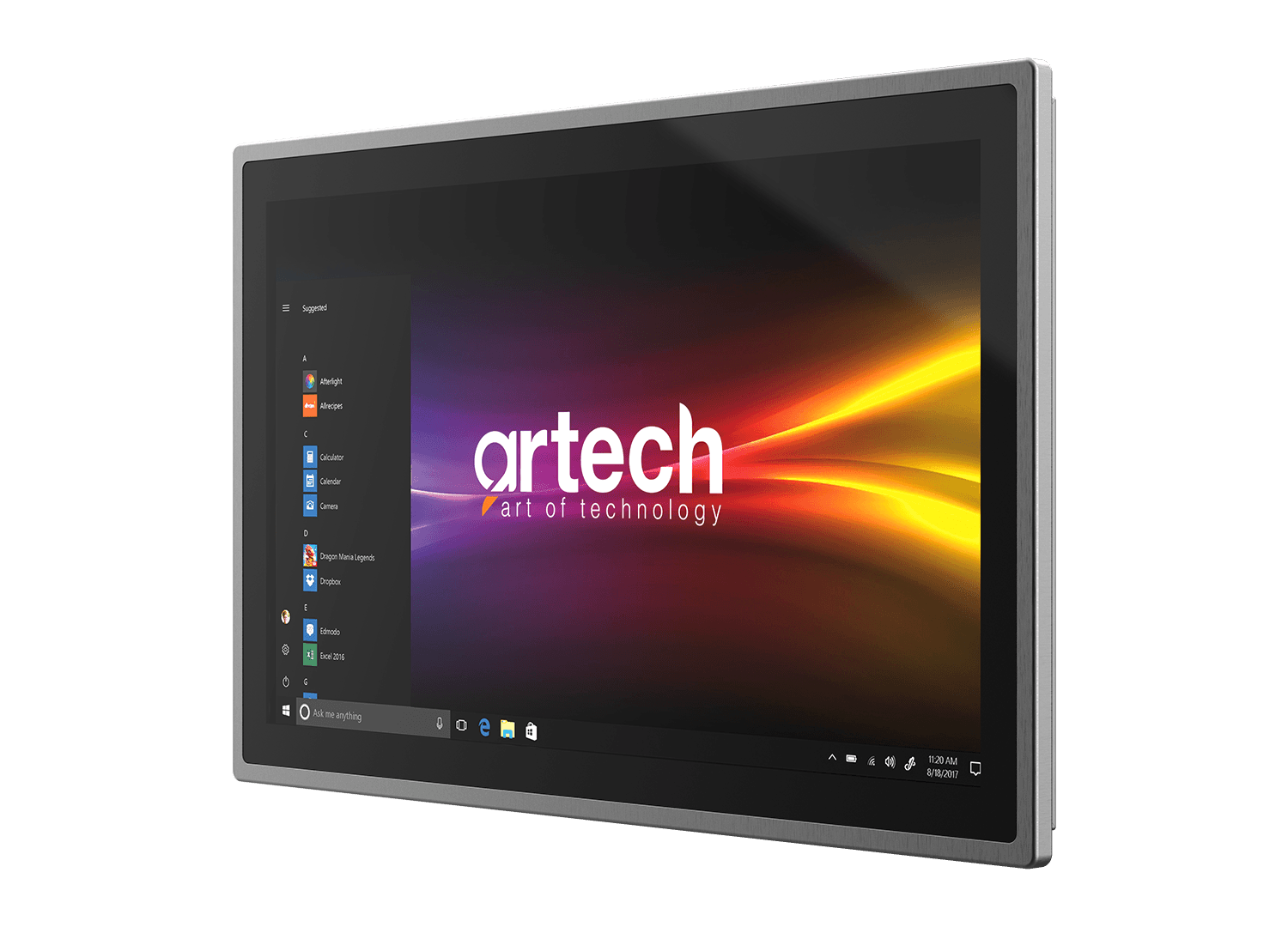

IPC-921 Ultra Serises

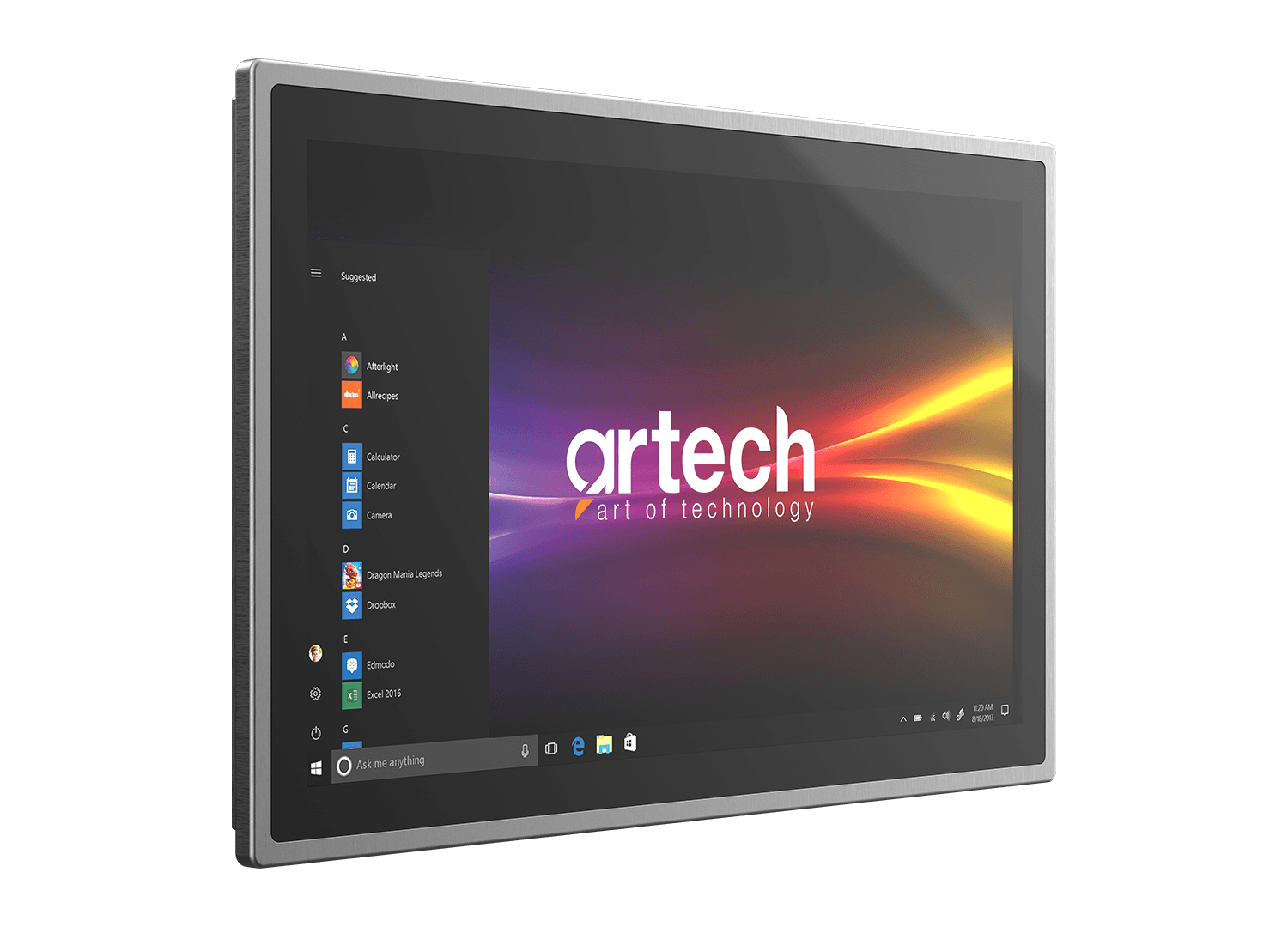

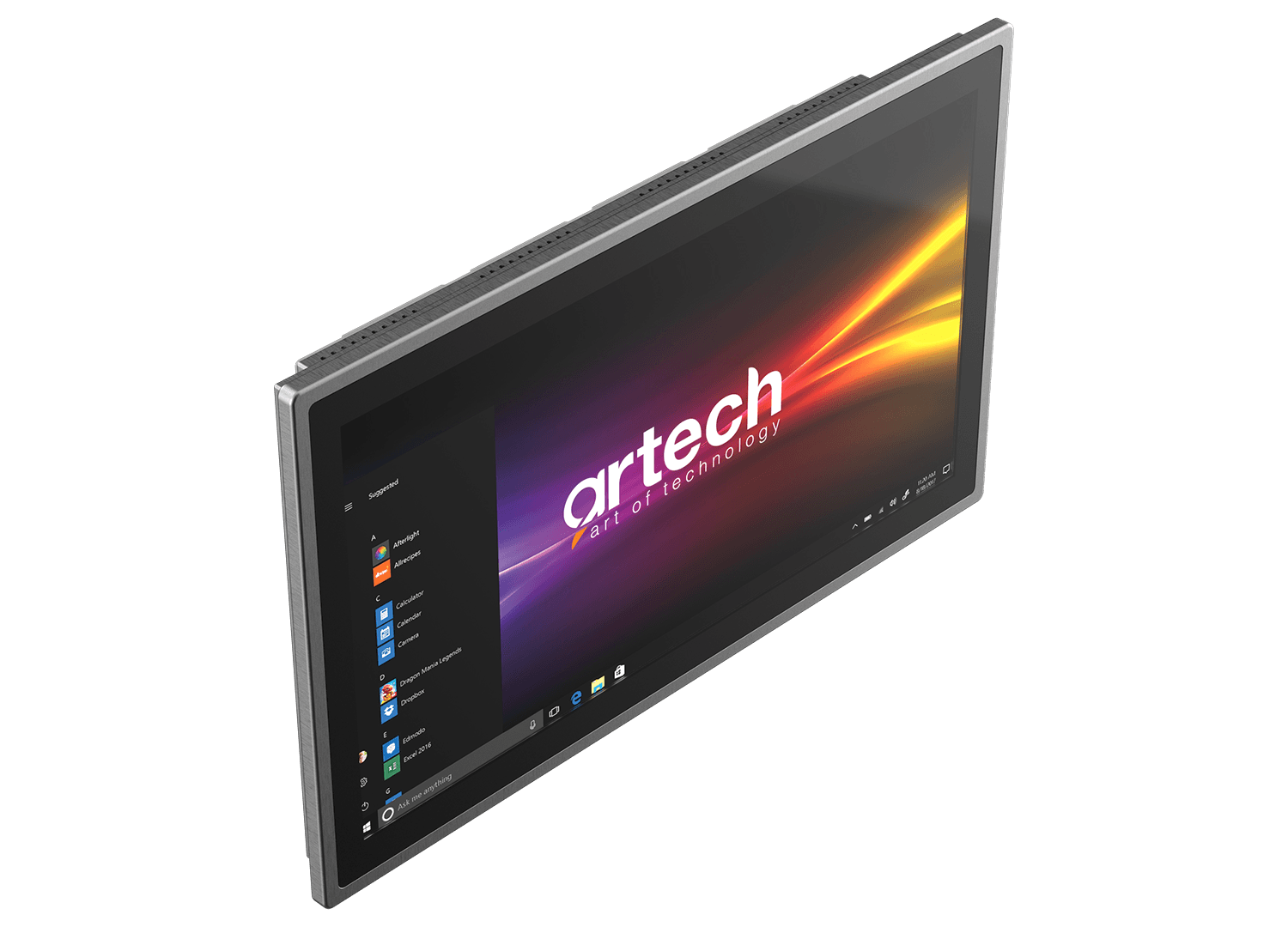

21.5" Touch Screen Industrial Panel PC

The Artech Ultra Series 21.5" Touch Industrial Panel PC is a solution designed to facilitate the digital transformation of production environments with its wide screen and capacitive touch technology. Powered by a 12th Gen Intel iCore processor, it delivers high performance and meets modern industrial needs with Full HD resolution and a variety of power input options. In addition to its high operational performance, enabled by the 12th Gen iCore processor, this series features performance-enhancing updates, including an improved cooling design that ensures longer service life and enhanced environmental durability.

Key Features:

  • Domestic Production Advantage: Reliable quality with local manufacturing standards.
  • 12th Gen Intel iCore Processor: Delivers high processing performance.

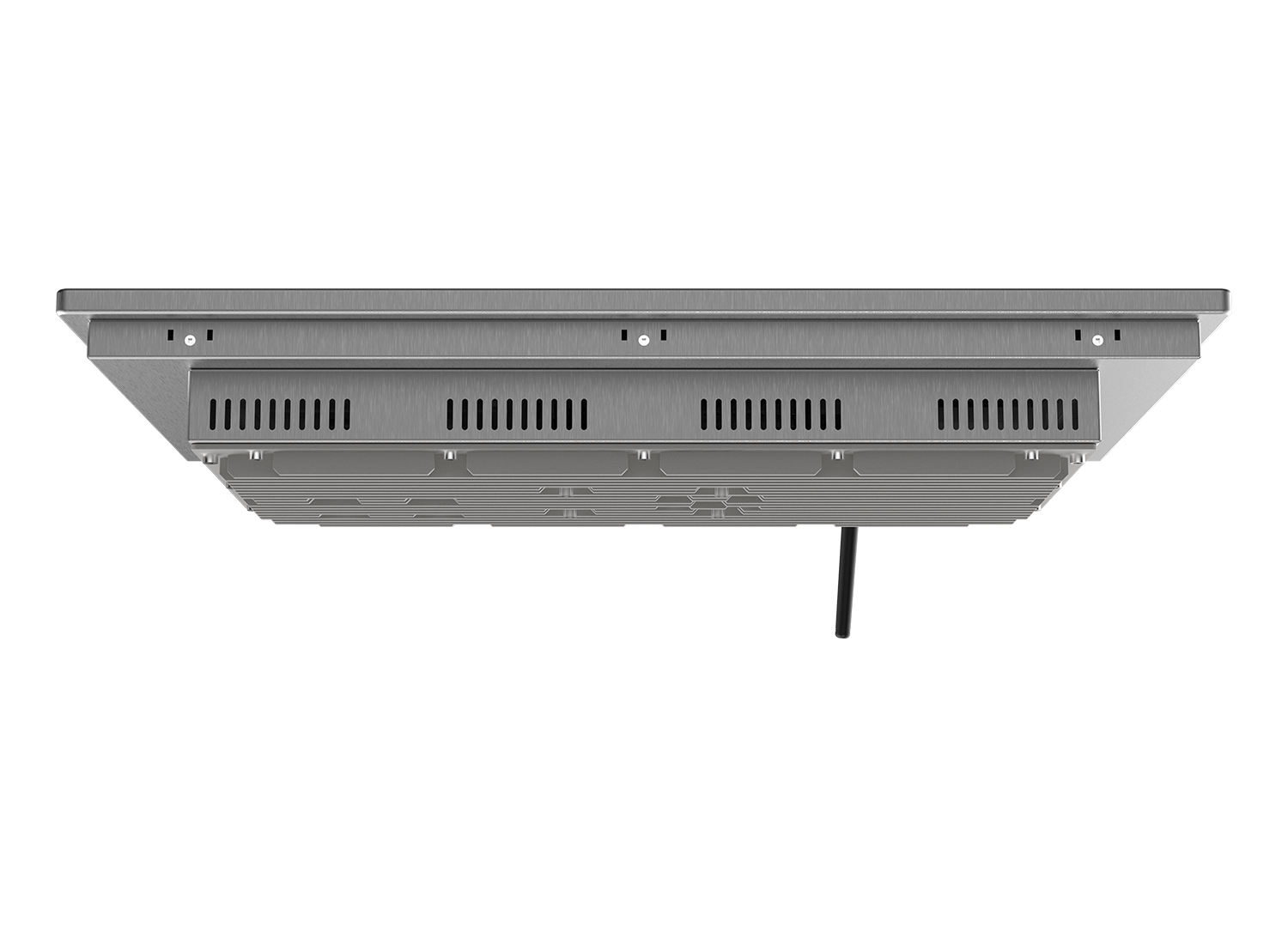

  • Enhanced Cooling Design: Optimized for long-term stability and reliable use.
  • Full HD Resolution: Ideal for sharp and clear visuals.
  • Capacitive Multi-Flat Touch Technology: Provides a seamless touch experience.
  • Easy-to-Remove and Replaceable Drive Bay: Simplifies data management and maintenance.
  • 0-60 °C Operating Temperature: Stable performance across a wide temperature range.
  • IP65 Front Panel Protection: Excellent protection against dust and water.
  • Stainless Steel Housing: Offers durability and a long lifespan.
  • Suitable for 24/7 Operation: Ideal for continuous use.
  • Flexible Power Options: Compatible with 12VDC or 24VDC power input.

With the advantage of local production, the Artech Ultra Series 21.5" Touch Industrial Panel PC is the perfect choice for professionals seeking high performance, environmental durability, and longevity in challenging industrial environments.

IP65 Front Panel Protection
IP65 Front Panel Protection

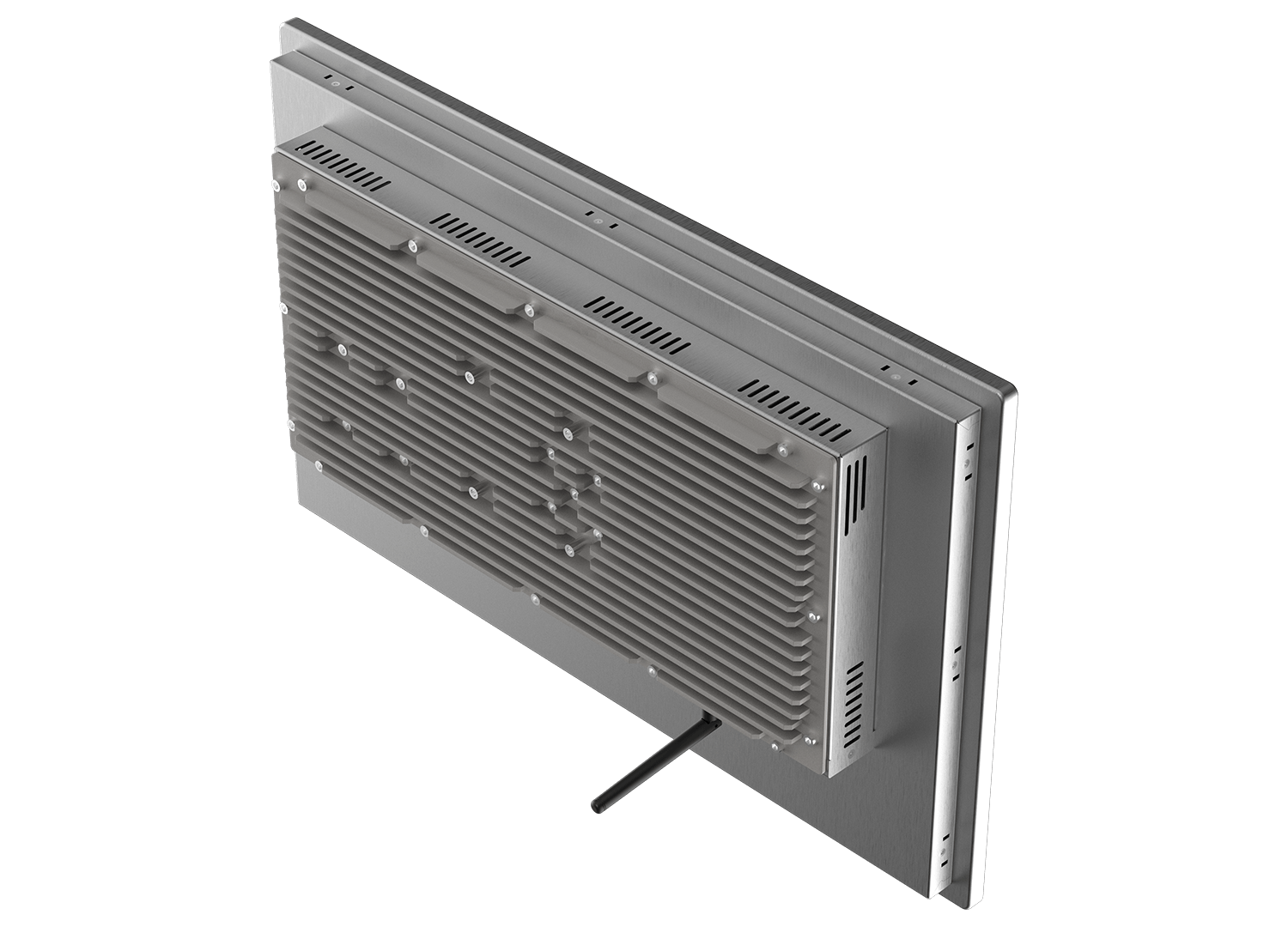

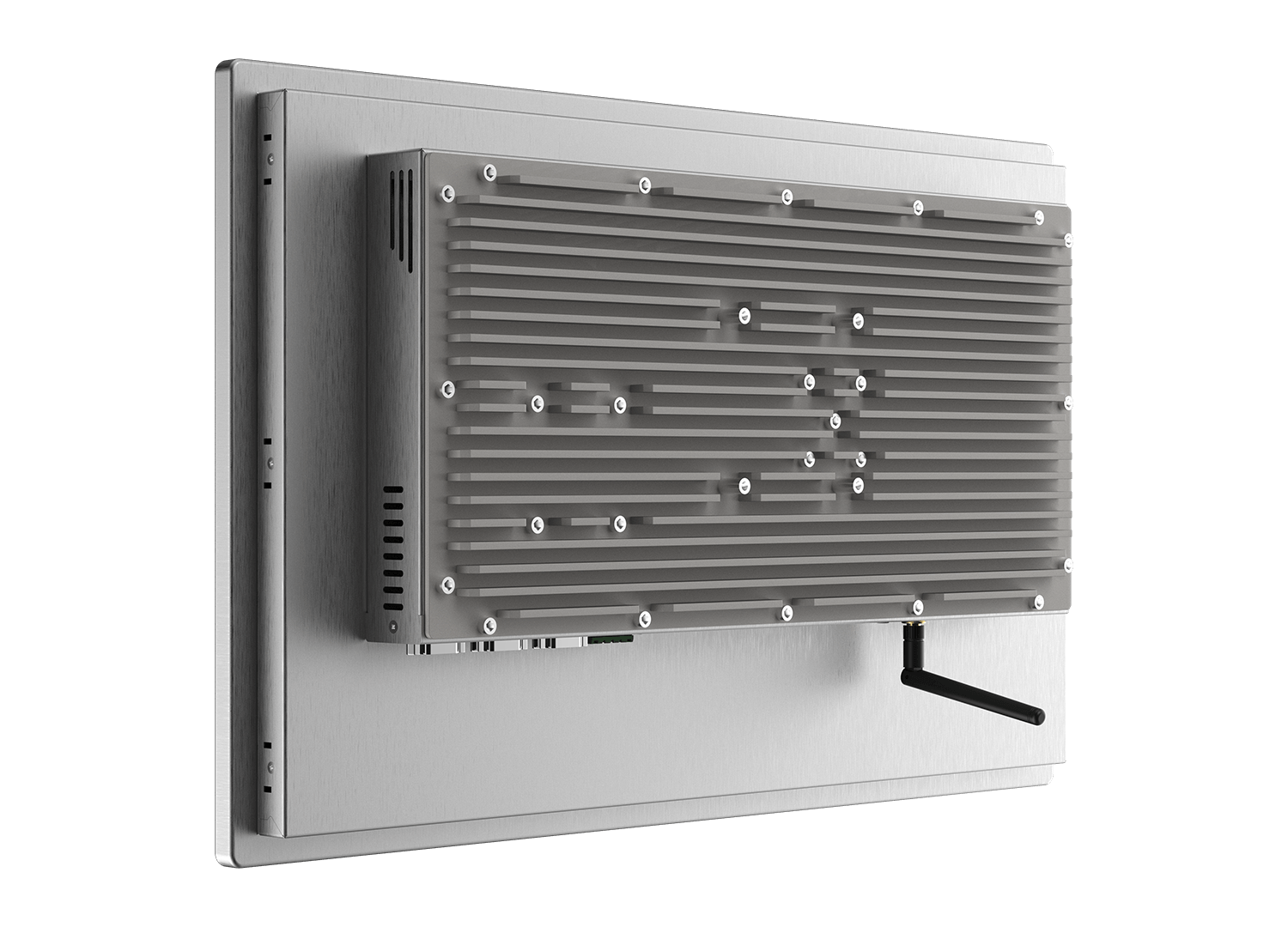

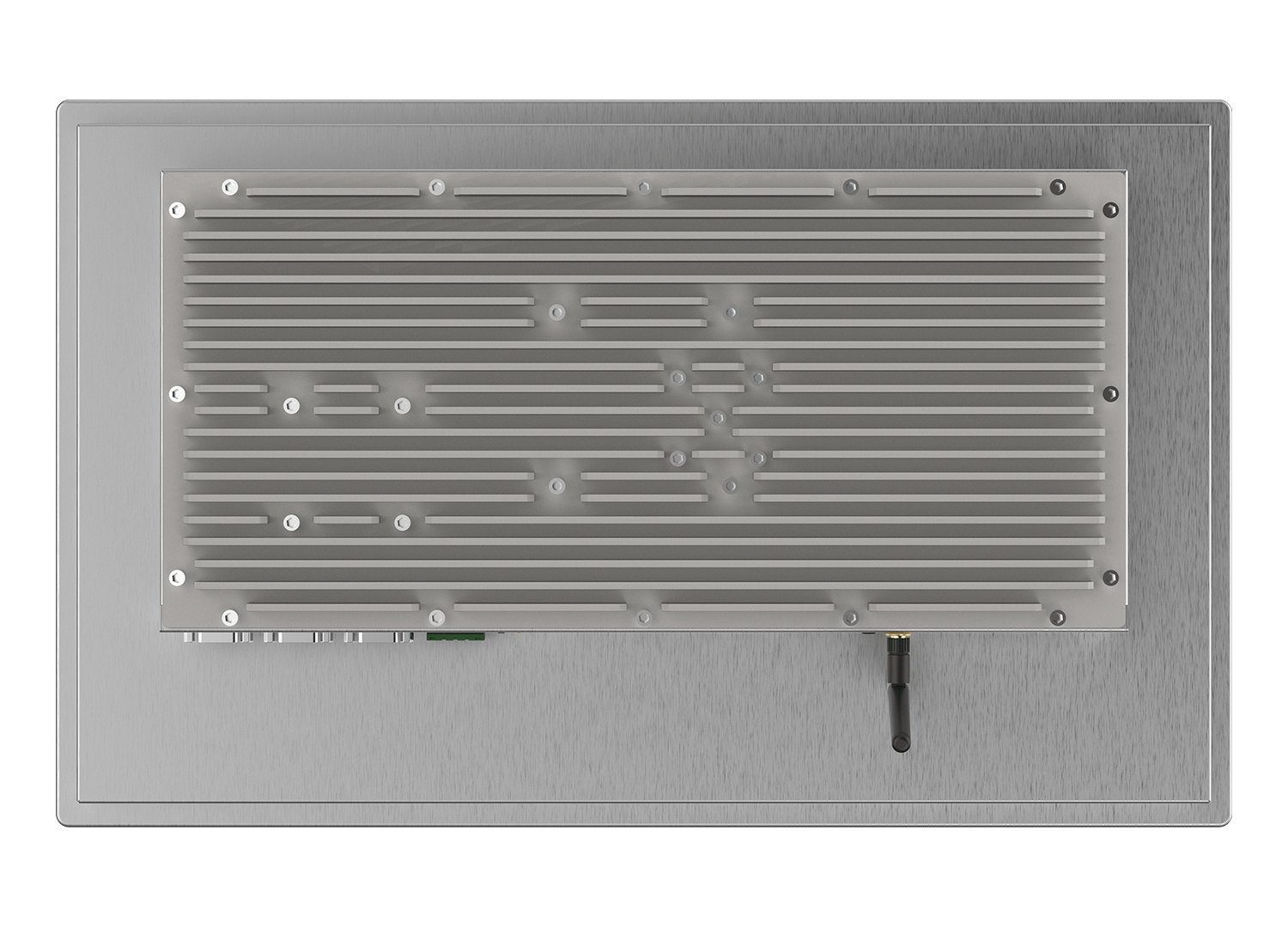

Industrial Stainless Steel Body
Industrial Stainless Steel Body
Special Lockable Slot for Easy Hard Drive Replacement (OPS)
Special Lockable Slot for Easy Hard Drive Replacement (OPS)
Durable and Long Lasting
Durable and Long Lasting

Sectors

Technical Specifications

System
CPU :
12th Gen Intel iCore
Memory :
DDR4-3200, 2*SO-DIMM, up to 64 GB
Video RAM :
Intel® HD Graphics
Chipset :
Intel®
Watchdog Timer :
255 Level Reset
System Fan :
Fanless

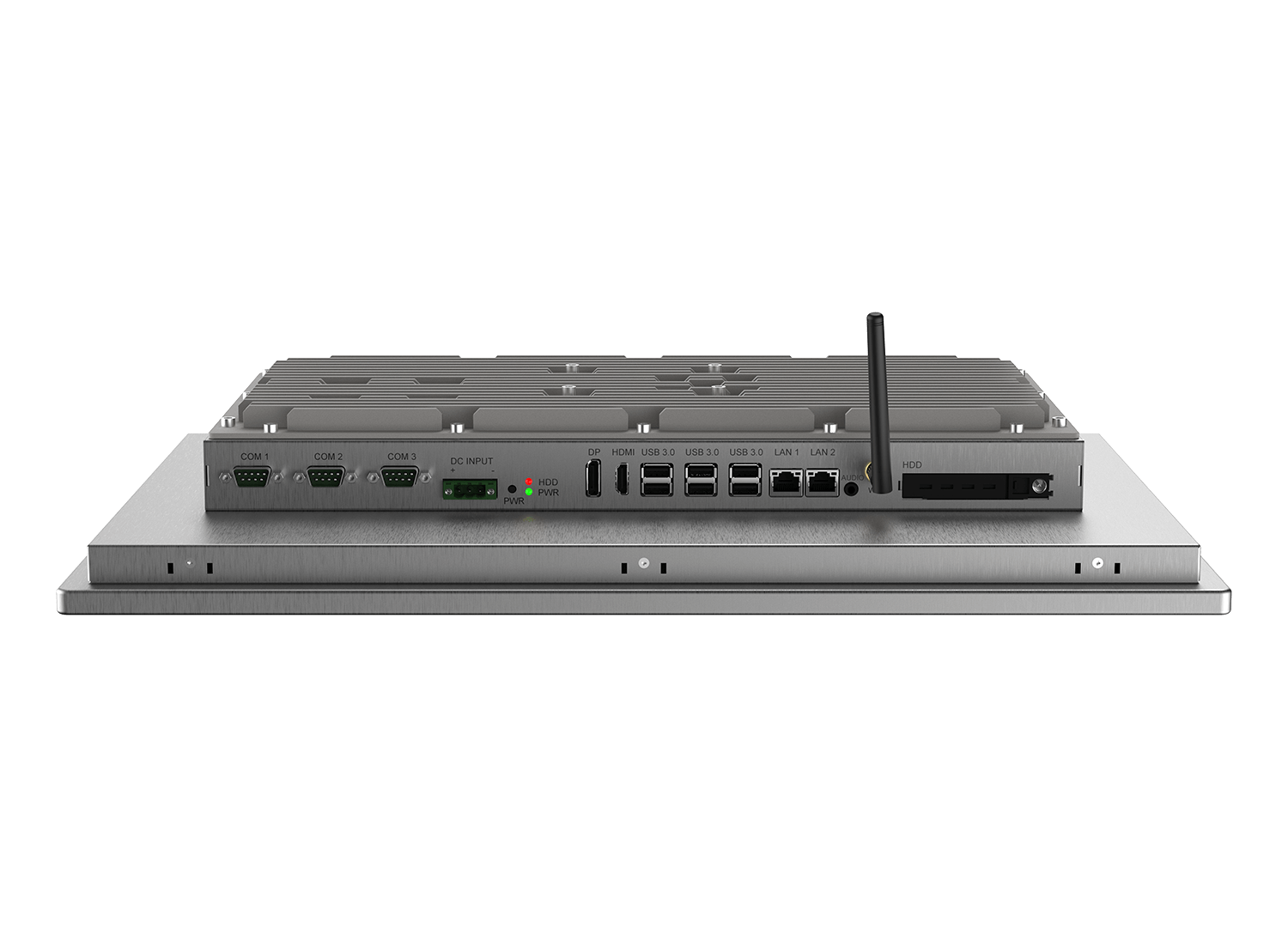

I/O
Serial Port :
3 x (RS232/RS422/RS485)
Parallel Port :
N.A.
USB Port :
6 (4 x USB 3.0 , 2 x USB 2.0)
LAN :
2 x Ethernet 10/100/1000 BaseT
Wireless LAN :
802.11 b / g / n (Optional)
Audio :
Realtek® 5.1 channel HDA Codec, with MIC/Line-out and Amplifier
Expansion Slot :
Mini PCIe
Data Storage
HDD / Type :
Fixed / Slide - Easy Change
SSD :
M.2 / 2.5" SSD | 64 GB / 128 GB / 256 GB / 512GB / 1TB
Feed
Input :
12-24 VDC
Extra Video Output
Type :
1x HDMI Display Output
LCD Screen
Type and Size :
21.5” LVDS (16:9 Widescreen)
Max. Resolution :
1920 x 1080
Pixel Pitch :
0.297(H) x 0.297(W)
Max Color :
16.7 M
Brightness (cd/m2) :
250cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 Hours
Touch Screen :
21.5" Touch - Projected Capacitive
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Dust Proof Stainless Steel Body - Front Frame
Front Frame :
IP65 Aluminium
Mounting :
Suitable for Panel, Kiosk or VESA Mounting
Order Code
CPU :
12th Gen Intel iCore
PSU :
12-24
RAM :
4 / 8 / 16 / 32 / 64
HDD :
64 / 128 / 256 / 512 / 1TB
Wifi :
NoWiFi / WiFi
