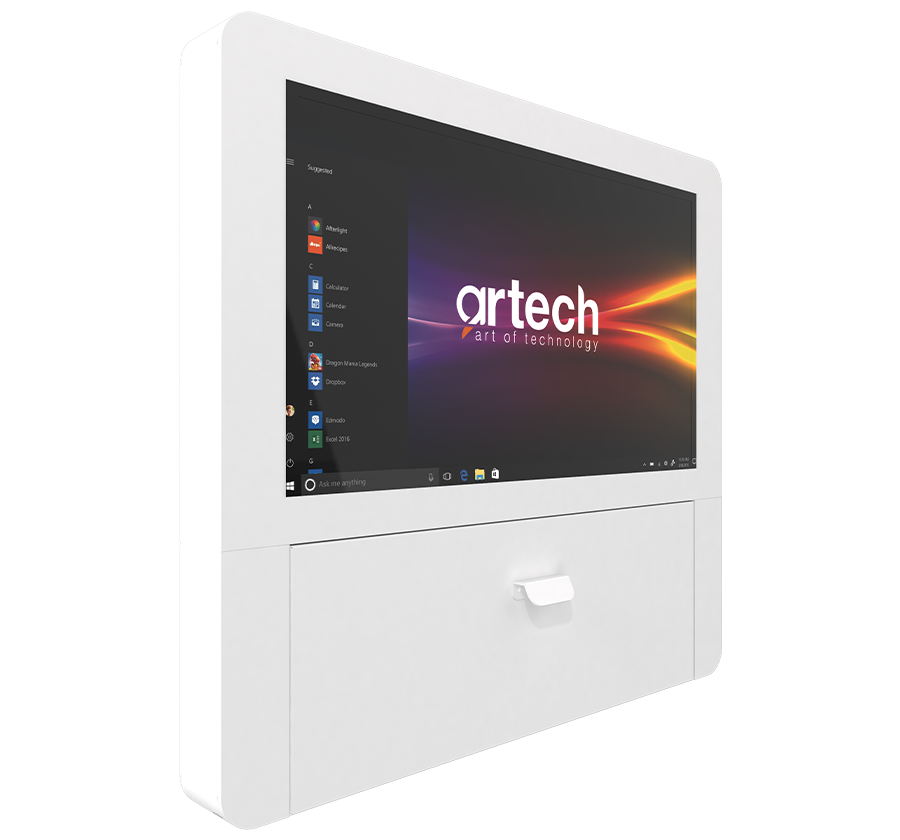

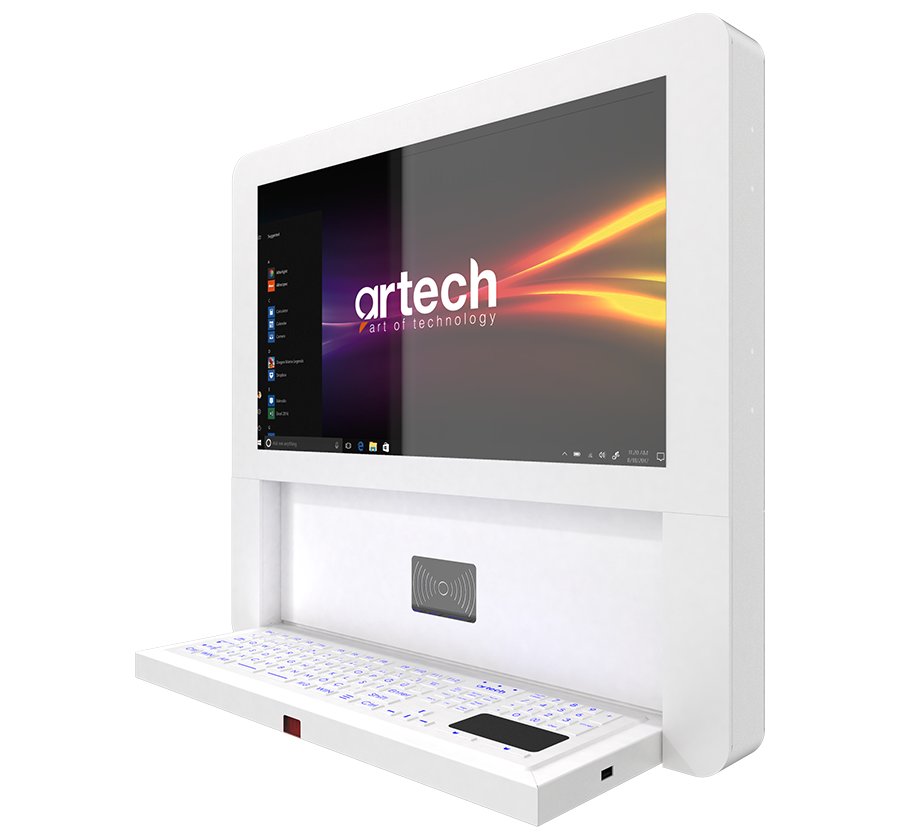

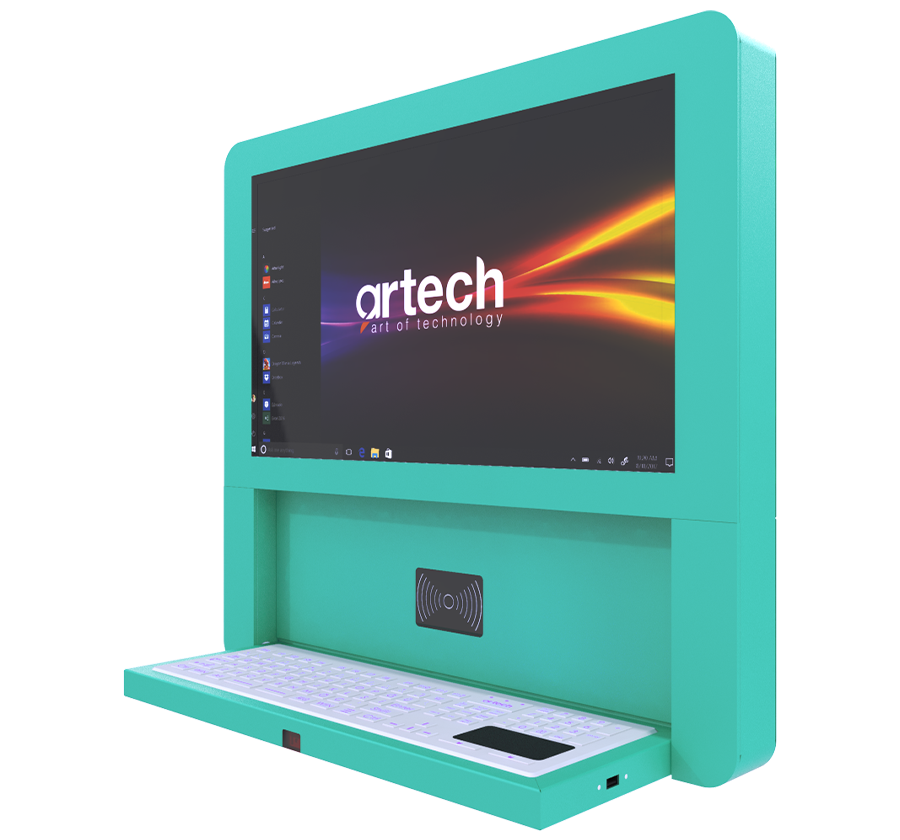

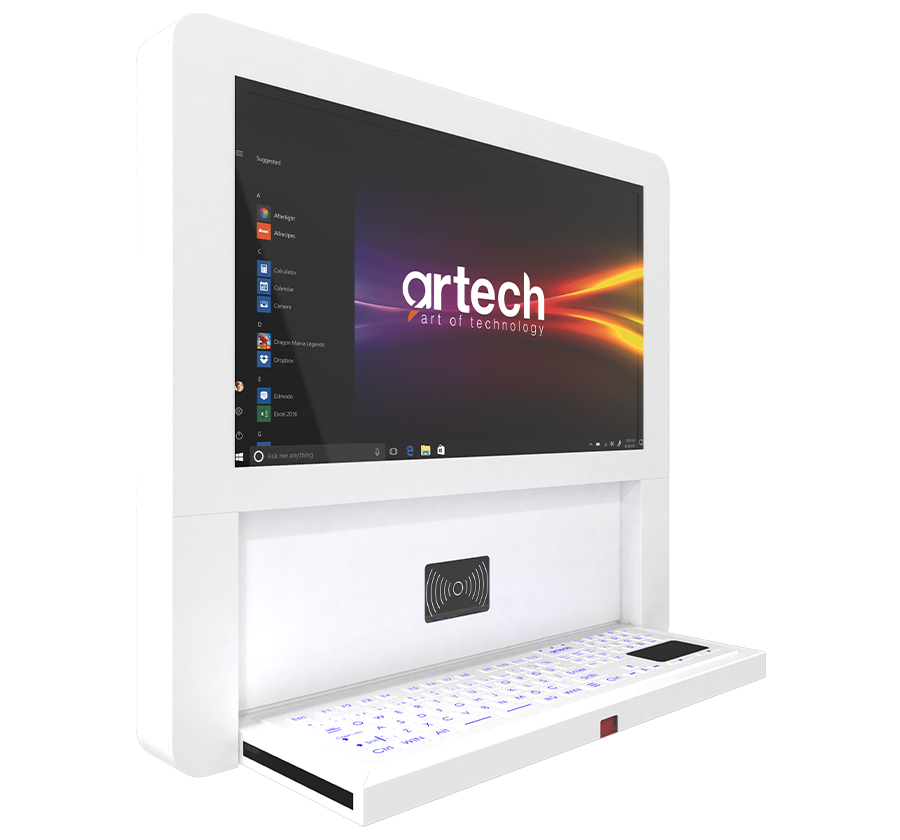

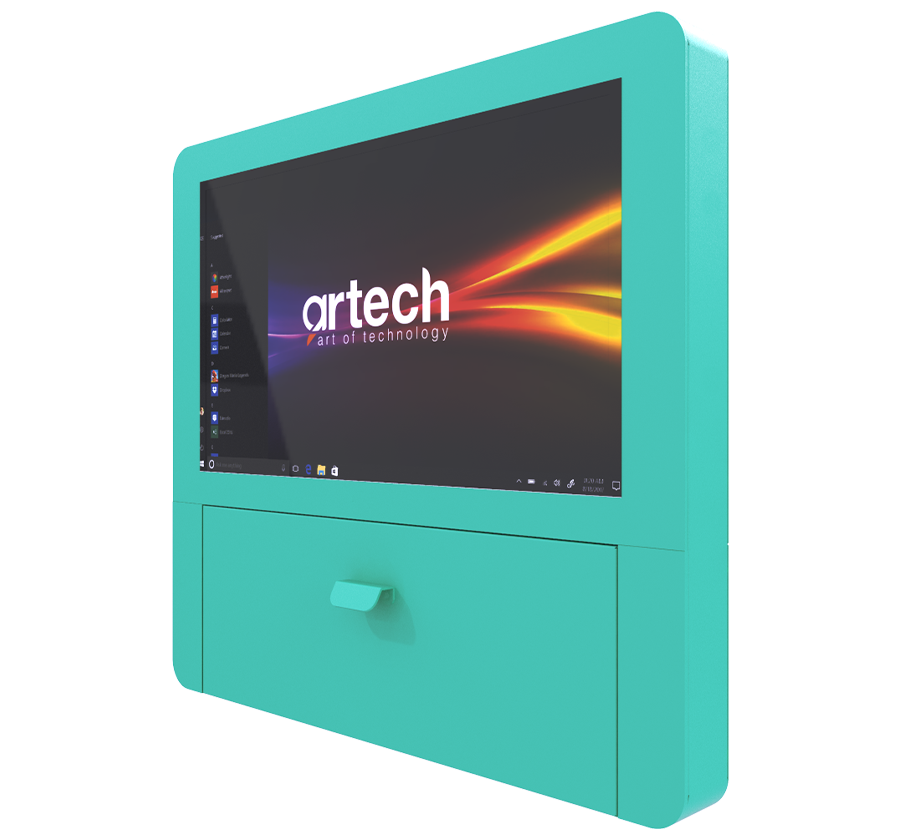

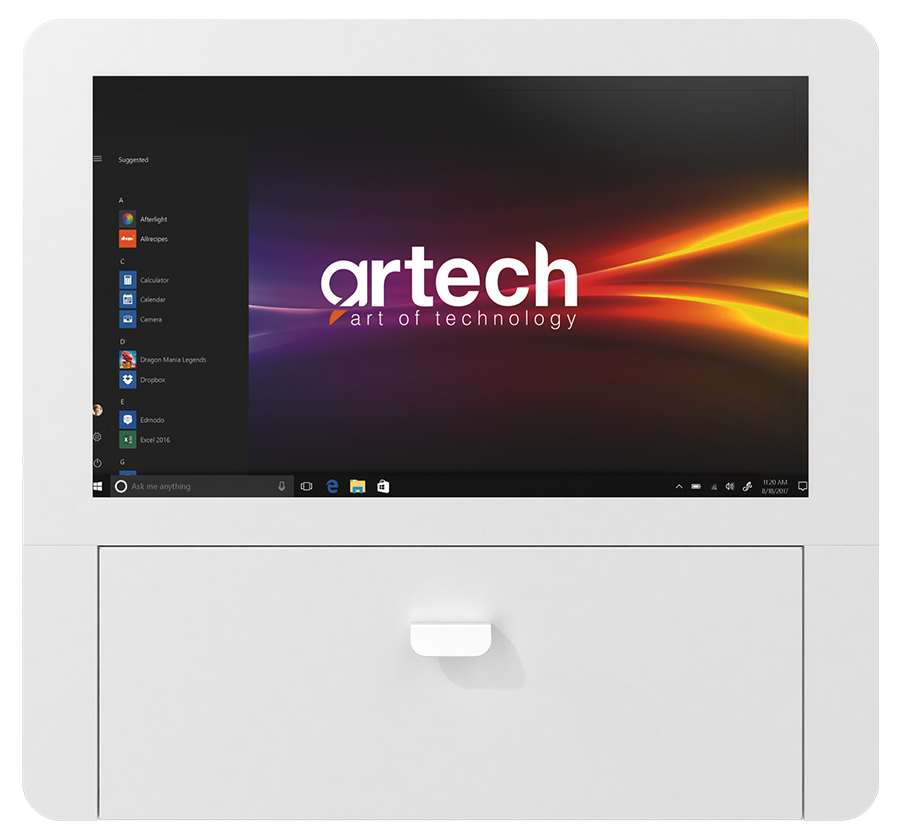

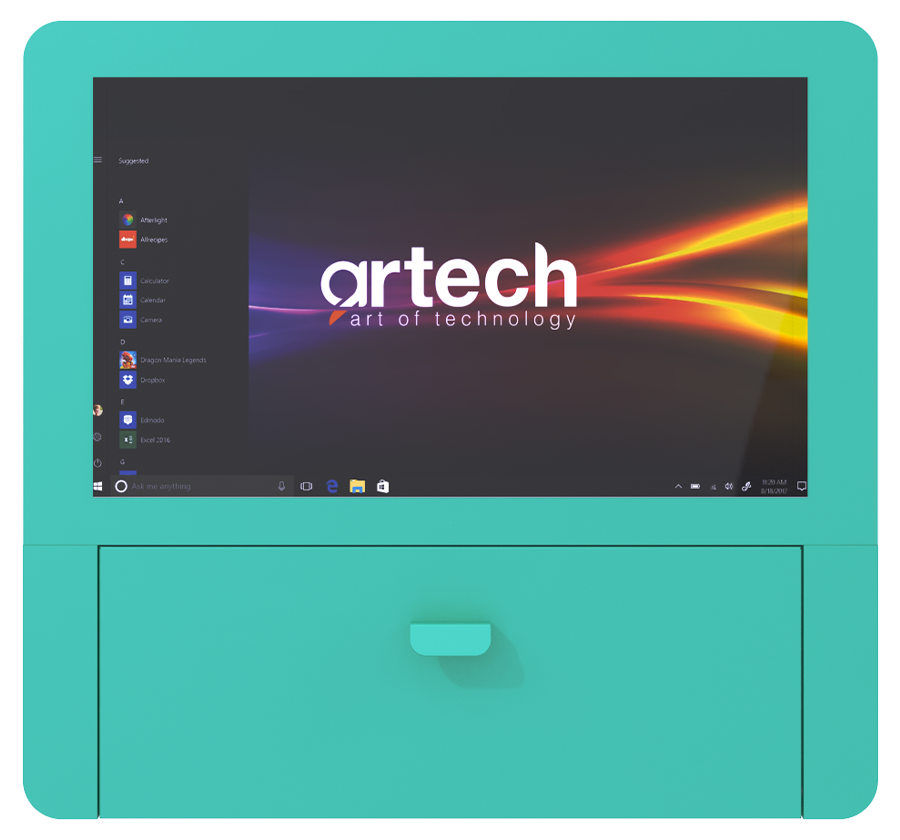

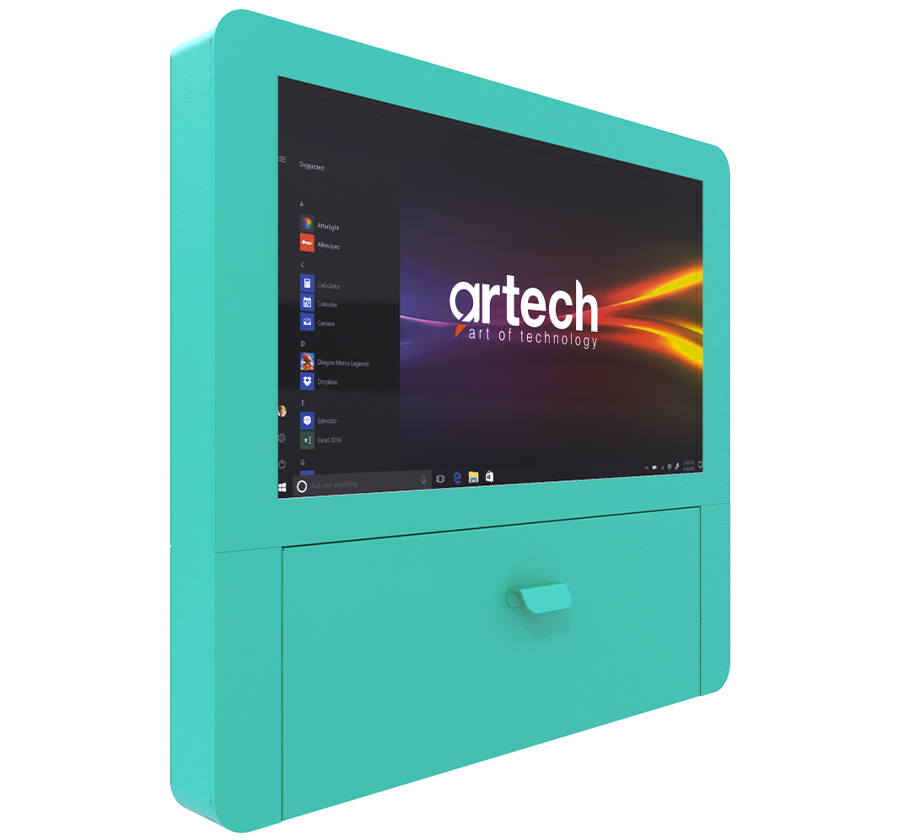

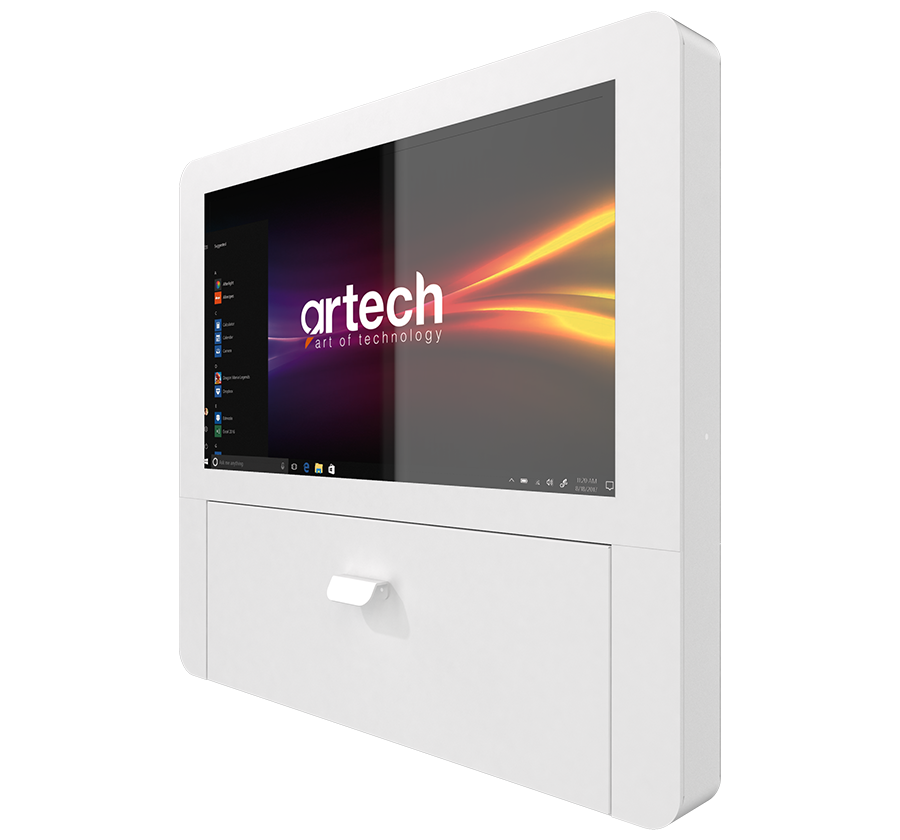

HBPC-421 Series

Artech Bedside & Intensive Care Computer, designed with a sterile keyboard and touch screen in accordance with hygienic environment conditions, facilitates access to information through the hospital information management system and provides reliable solutions for healthcare professionals to access correct information.

  • Access to Patient Information with HIS

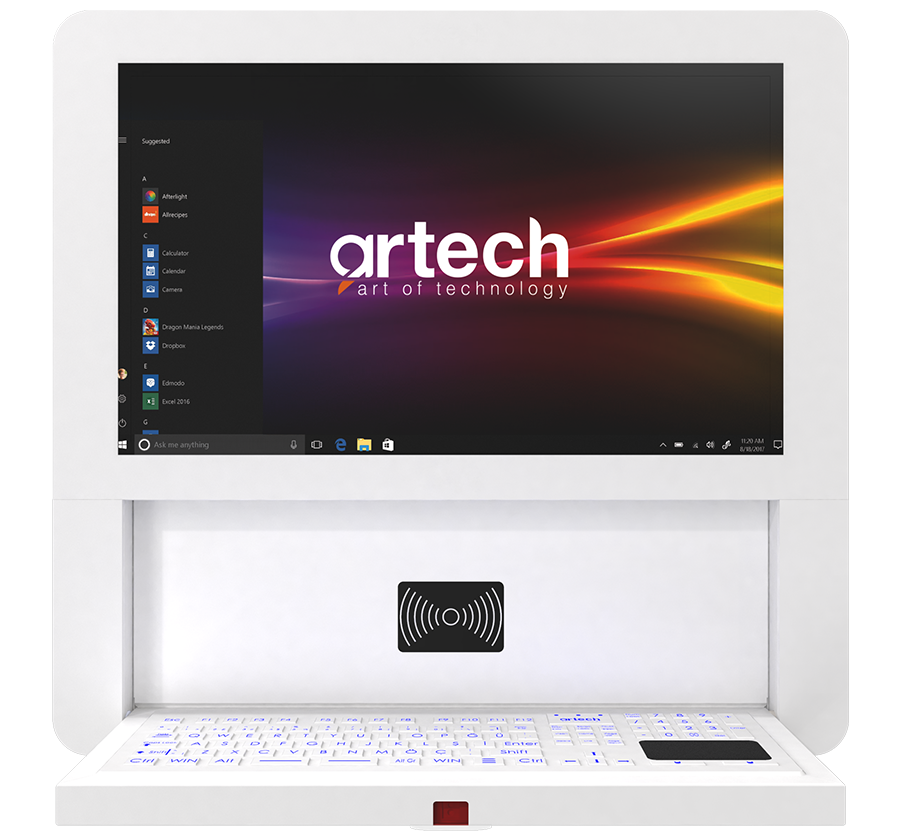

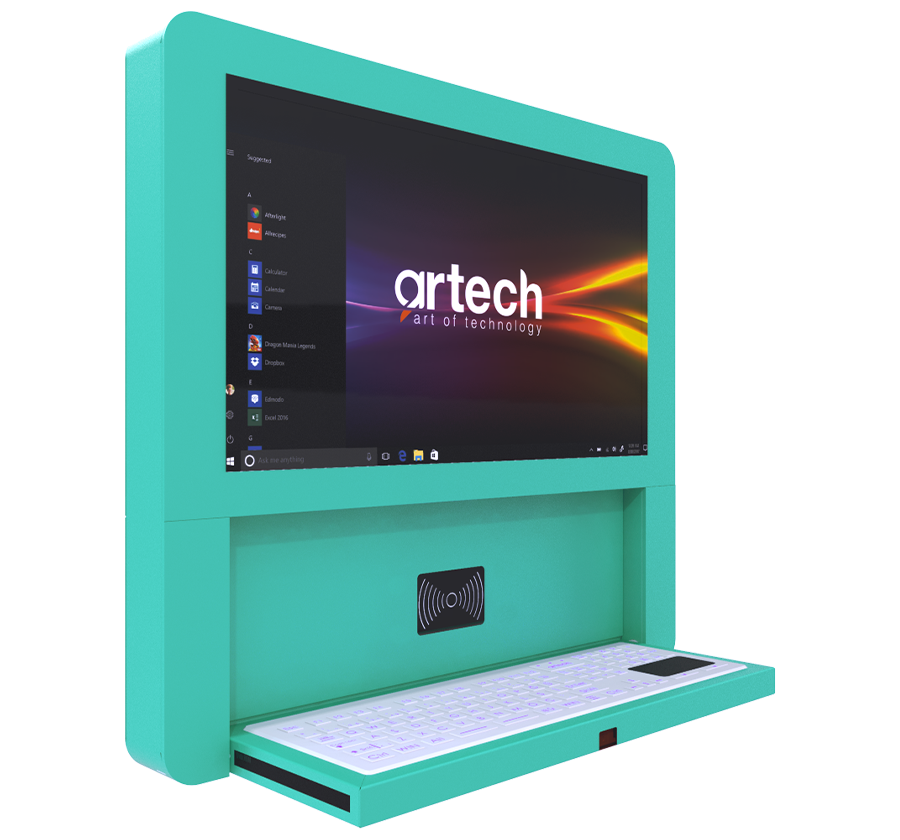

  • Anti Bacterial Keyboard and Touchpad
  • Barcode Reader
  • RFID Reader
  • Easy Sterilisation with IP65 Protection Class Front Face
  • Patient Tracking System with Bluetooth Control
  • Fanless Design and Automatic Standby Feature
Material and Consumable Tracking with Barcode and RFID System
Material and Consumable Tracking with Barcode and RFID System
Fanless Design, Silent Operation
Fanless Design, Silent Operation
Bluetooth Connected Control Function
Bluetooth Connected Control Function

Sectors

Technical Specifications

System
CPU :
Intel® Celeron® Processor J1900
Cache :
2nd Level depends on CPU
Memory :
2 x DDR3 SoDIMM max 4GB / 8GB
Video RAM :
Intel® Gen7 Intel® Graphics DX 11
Control :
Intel® Soc
Watchdog Timer :
255 Level Reset
System Fan :
N.A.
I/O
Serial Port :
3 x RS-232 Ports
Parallel Port :
SPP/EPP/ECP
USB Port :
4 x USB 2.0 / USB 3.0
LAN :
1 x LAN Realtek Gigabit Ethernet
Keyboard :
Integrated Antibacterial Turkish Keyboard
Mouse :
Integrated Antibacterial Touchpad
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
MiniPCIe
Readers :
Built-in QR Barcode Scanner Module (Optional)
Data Storage
HDD / Type :
Vibration Resistant Slot 2.5 ”(500 GB HDD)
SSD :
64 GB / 128GB / 256 GB
Feed
Input :
220VAC or 24VDC
LCD Screen
Type and Size :
21" / 16:9
Max. Resolution :
1920x1080
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
350cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
21" Touch-Capacitive
Extra Video Output
Type :
HDMI/DVI
Max. Resolution :
1920x1080
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Custom Built-in Glass
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size

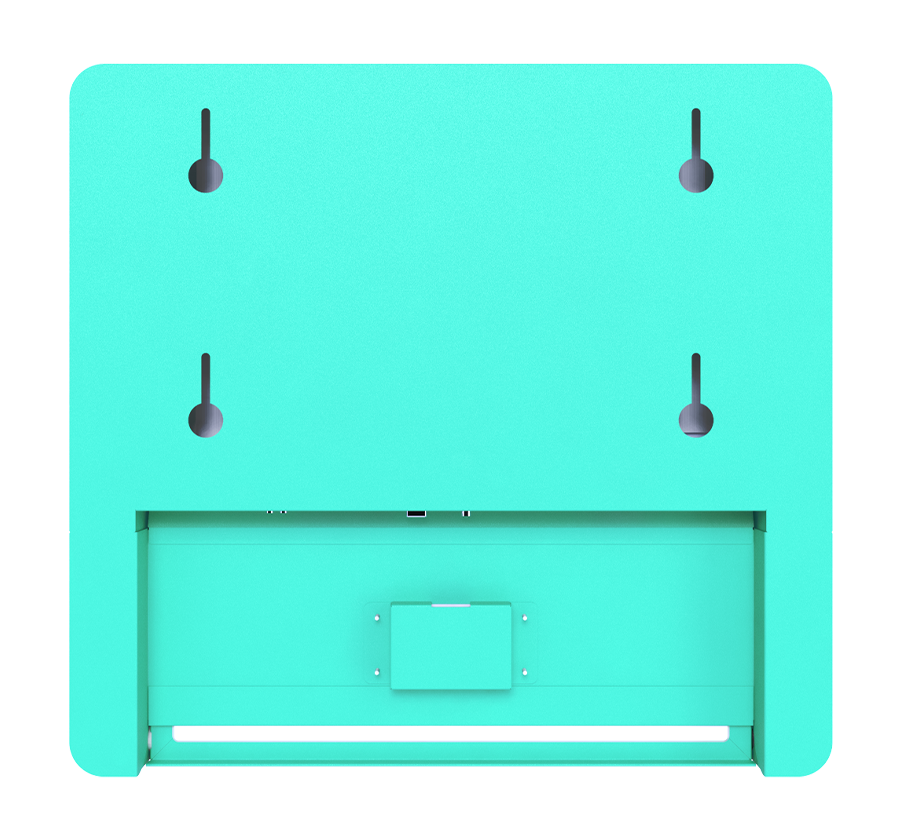

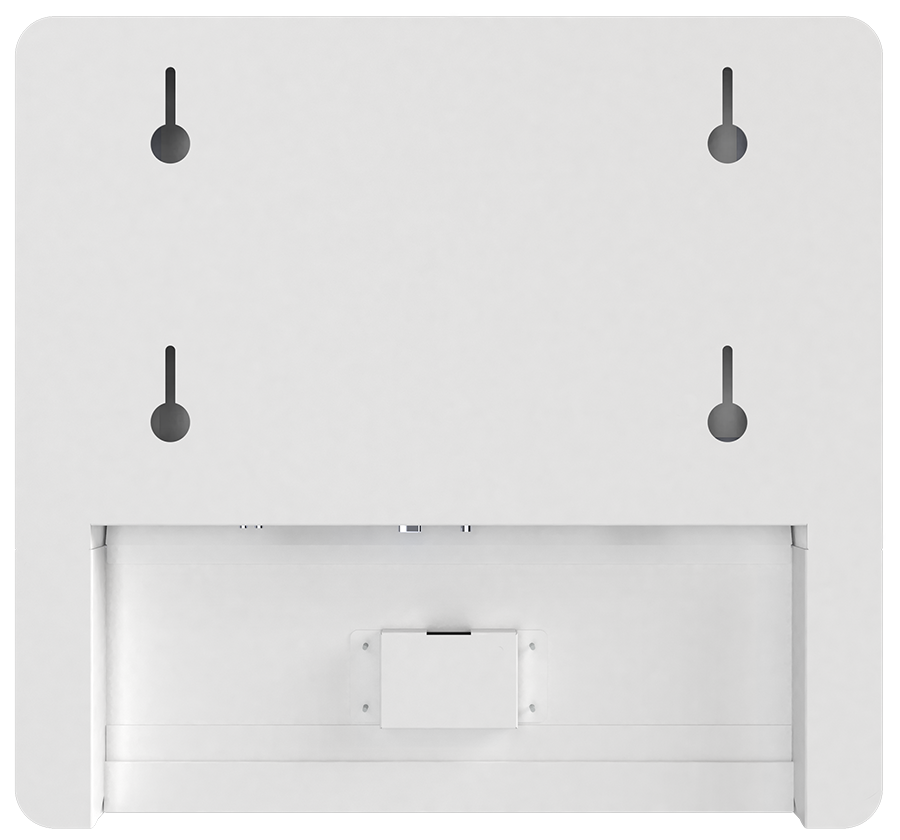

Mounting :
Surface Mounted
Order Code
CPU :
J1900
PSU :
AC220, DC24
Optical Drive :
DVD-RW
RAM :
R4, R8, R16
HDD :
500GB HDD(Opt), SSD64, SSD128, SSD256
Wifi :
Optional
RFID Reader :
Mifare, HID
Barcode Reader :
1D, QR
