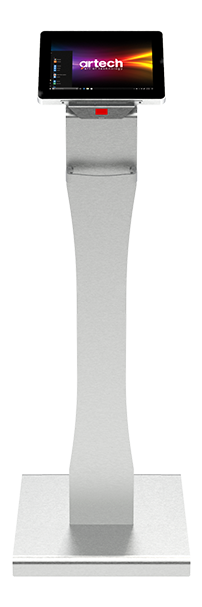

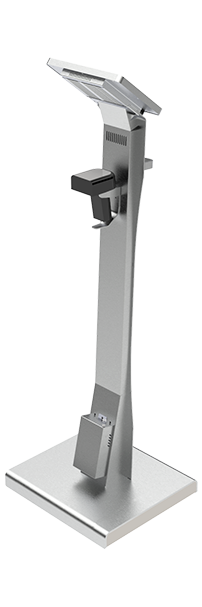

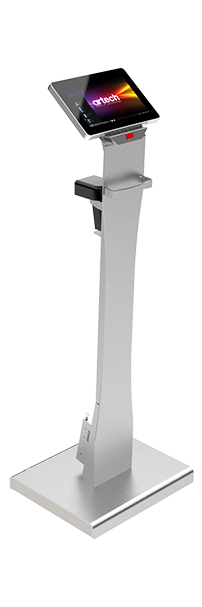

K-410 Series
With Artech Customer Satisfaction Kiosks, you can identify the factors that affect customer satisfaction and offer fast and reliable solutions.
- Fast Process Management
- Interactive Communication with Customer
- Corporate Color and Logo Options
Interactive Design
Customizing with Corporate Color and Logo
Fast Process Management
Technical Specifications
System
CPU :
Intel® Celeron™ Processor J1900 Low Power Fanless
Cache :
2MB
Memory :
2 x DDR3 SoDIMM maks. 4GB / 8GB
Video RAM :
Max 128 MB shared memory
Control :
N.A.
Watchdog Timer :
255 Level Reset
System Fan :
1 x 4cm / 10CFM
I/O
Serial Port :
3 x RS-232 ports
Parallel Port :
N.A.
USB Port :
4 x USB 2.0
KB / MS :
1 x PS2 K/B and Mouse
LAN :
1 x LAN Realtek Gigabit Ethernet,
Wireless LAN :
802.11 b / g (Optional)
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
MiniPCIe
Data Storage
HDD / Type :
2.5” HDD/SSD
Feed
Input :
110 / 220VAC - 12 / 24VDC - PoE
Extra Video Output
Type :
HDMI
Max. Resolution :
1920x1080 @ 60Hz
LCD Screen
Type and Size :
10.1” / 16:9
Max. Resolution :
10.1” 1280 x 800
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
250cd
Contrast Ratio :
700/1
Back Light MTBF :
50,000 hours
Touch Screen :
10.1” Capacitive Touch
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Glass
Weight :
Variable according to screen size
Dimensions :
Variable by screen size
Mounting :
Stand
Order Code
CPU :
J1900
PSU :
AC110/220, DC12/24, PoE
RAM :
R4, R8
HDD :
HDD 320GB, SSD 32GB, SSD 64GB
Wifi :
Optional
