ORC-417 Series

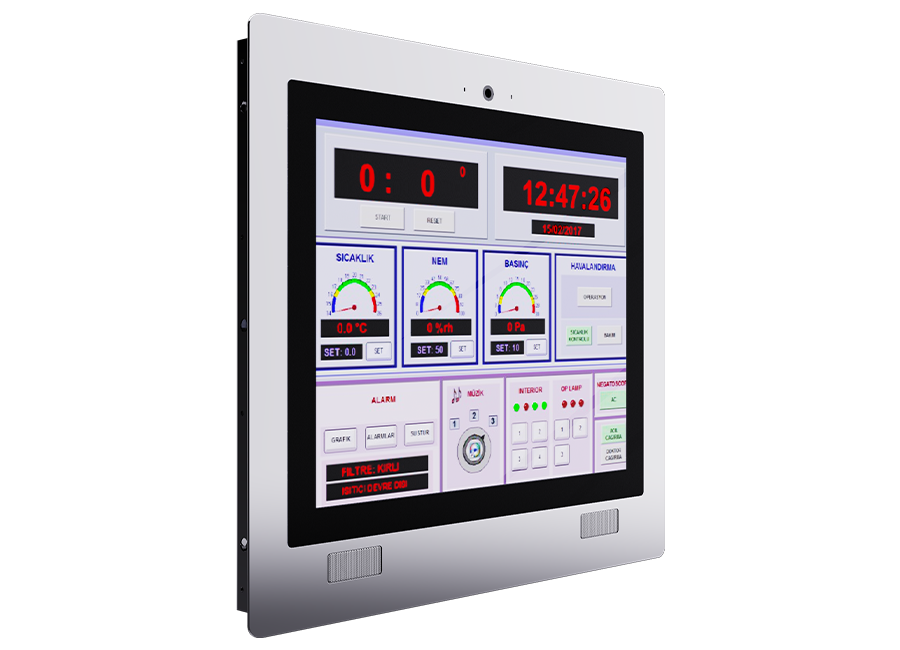

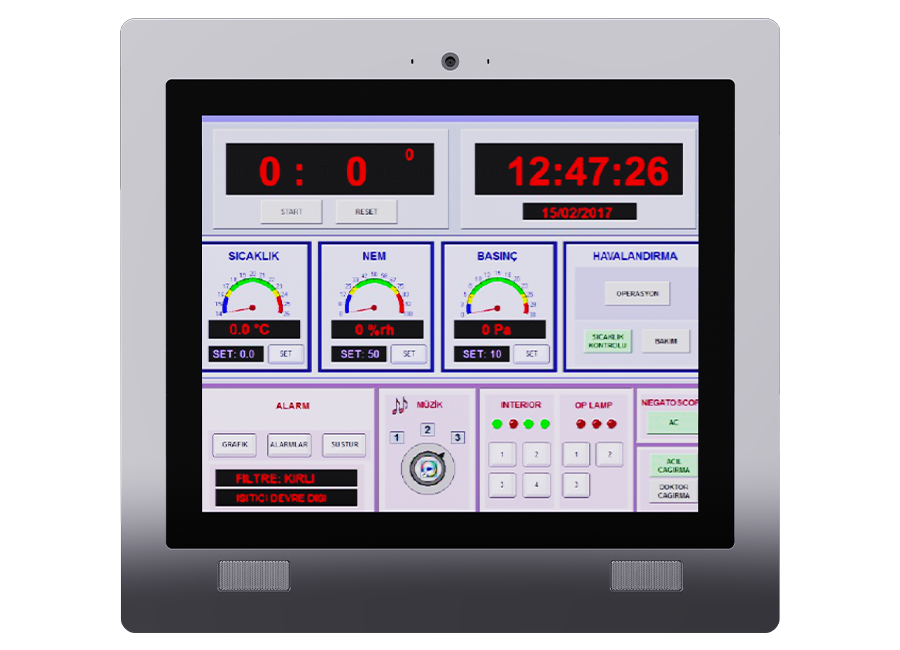

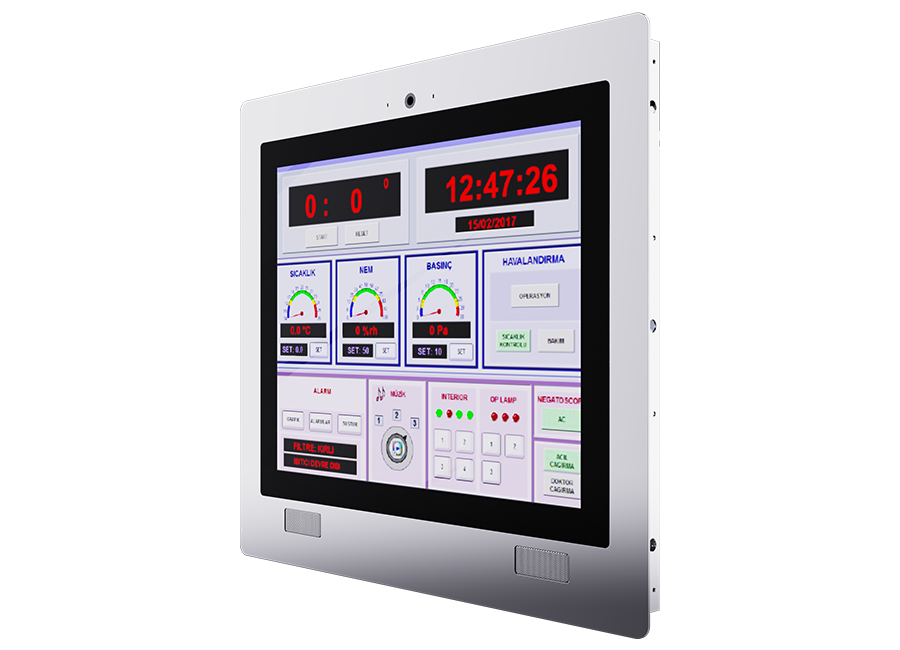

In order to provide the most suitable working conditions required for operating rooms, you can easily control the interior lighting, operation and sound-music systems with the Artech Operating Room Control Panel on the touch screen and record all the changes.

  • Temperature, Humidity, Room Pressure, Hepa Filter Control
  • Handsfree Video Call Feature
  • Parameter Record and Report Feature
  • Operation Systems, Sound and Music System Control and Command
    Feature
  • Control and Report Digital Negatoscope and Radiology Monitor
Setting and Controlling Parameters
Setting and Controlling Parameters
Handsfree Video Call
Handsfree Video Call
Control and Report Monitors and Systems
Control and Report Monitors and Systems

Sectors

Technical Specifications

System
CPU :
Intel® Celeron® Processor J1900/i5/i7
Cache :
2nd Level depends on CPU
Memory :
2 x DDR3 SoDIMM max. 4GB / 8GB
Video RAM :
Max128 MB shared memory
Control :
Intel® Soc
Watchdog Timer :
2 Level Reset
System Fan :
N.A.
I/O
Serial Port :
3 x RS-232 ports
Parallel Port :
SPP/EPP/ECP
USB Port :
4 x USB 2.0
KB / MS :
1 x PS2 K/B and Mouse
LAN :
2 x LAN Realtek Gigabit Ethernet
Wireless LAN :
802.11 b / g (Optional)
Audio :
Line in & out (AC’9 codec audio)
Expansion Slot :
PCIe/MiniPCIe
Data Storage
HDD / Type :
Vibration Resistant Slot 2.5 *(320 GB HDD)
SSD :
64 GB / 128GB / 2 6 GB
Feed
Input :
220VAC or 24VDC
LCD Screen
Type and Size :
1 " / 4:3
Max. Resolution :
1280x1024, XGA
Pixel Pitch :
0.29 mm x 0.29 mm
Max Color :
16. M
Brightness (cd/m2) :
3 0
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
1 " Touch-Resistive
Extra Video Output
Type :
HDMI/VGA
Max. Resolution :
1920x1080
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 9 % (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Glass/Stainless Steel
Weight :
Variable according to screen size (1 ~ 5)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Built-in
Order Code
CPU :
J1900, i5, i7
PSU :
AC220
RAM :
R4, R8
HDD :
HDD 320GB, SSD64, SSD128, SSD256
Wifi :
Optional
