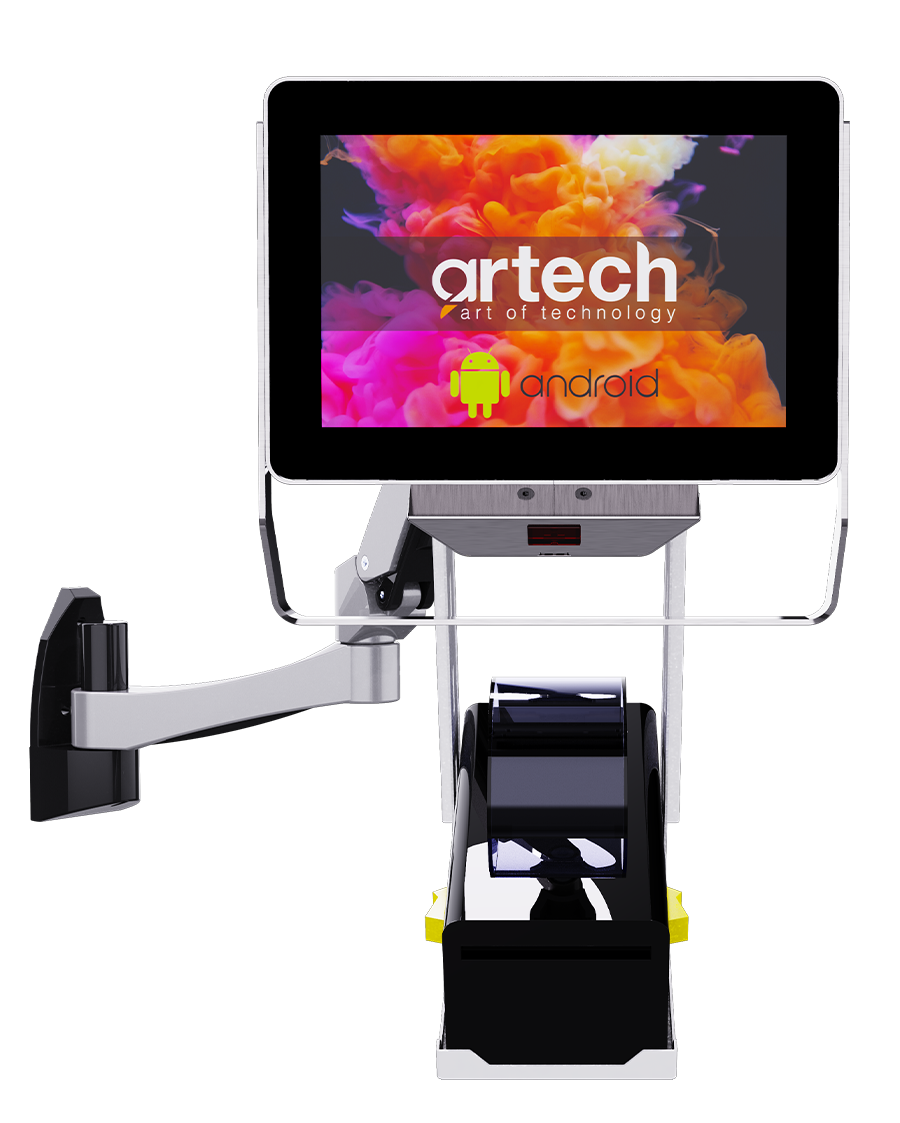

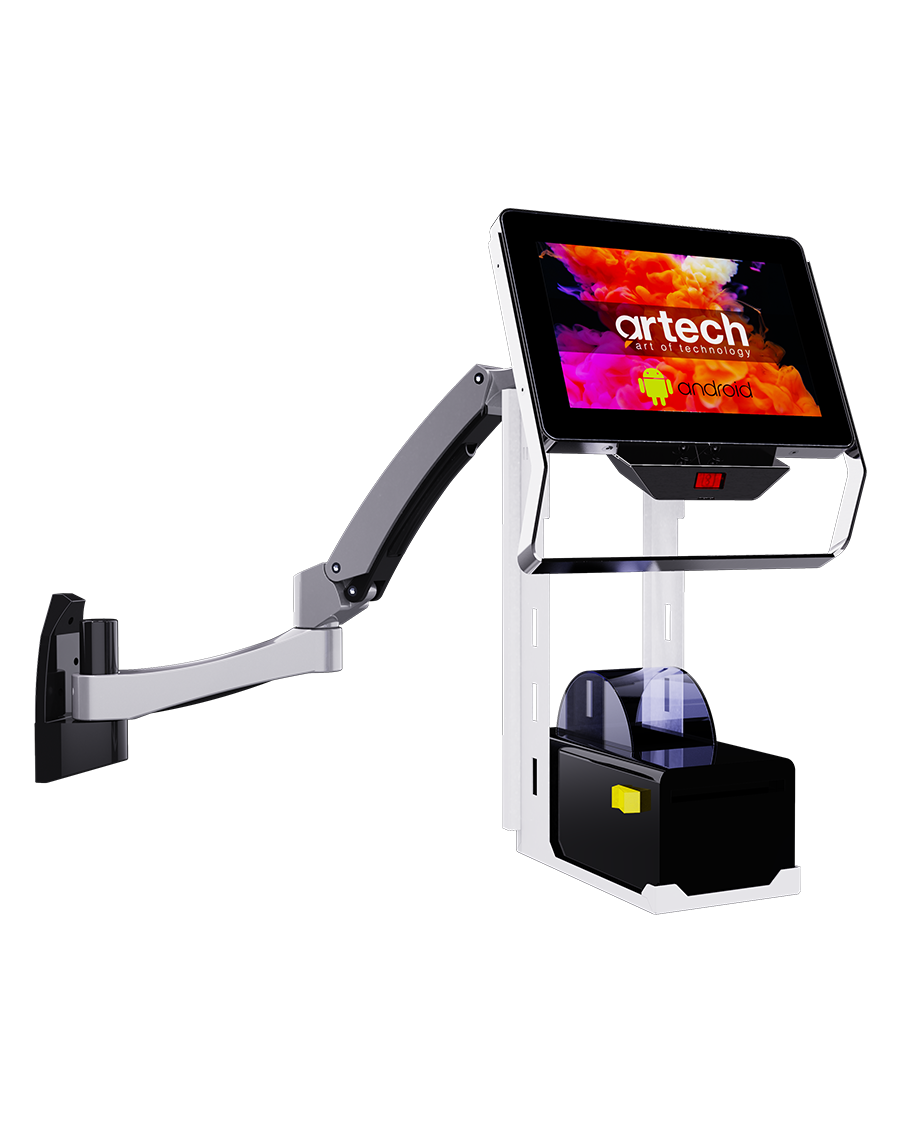

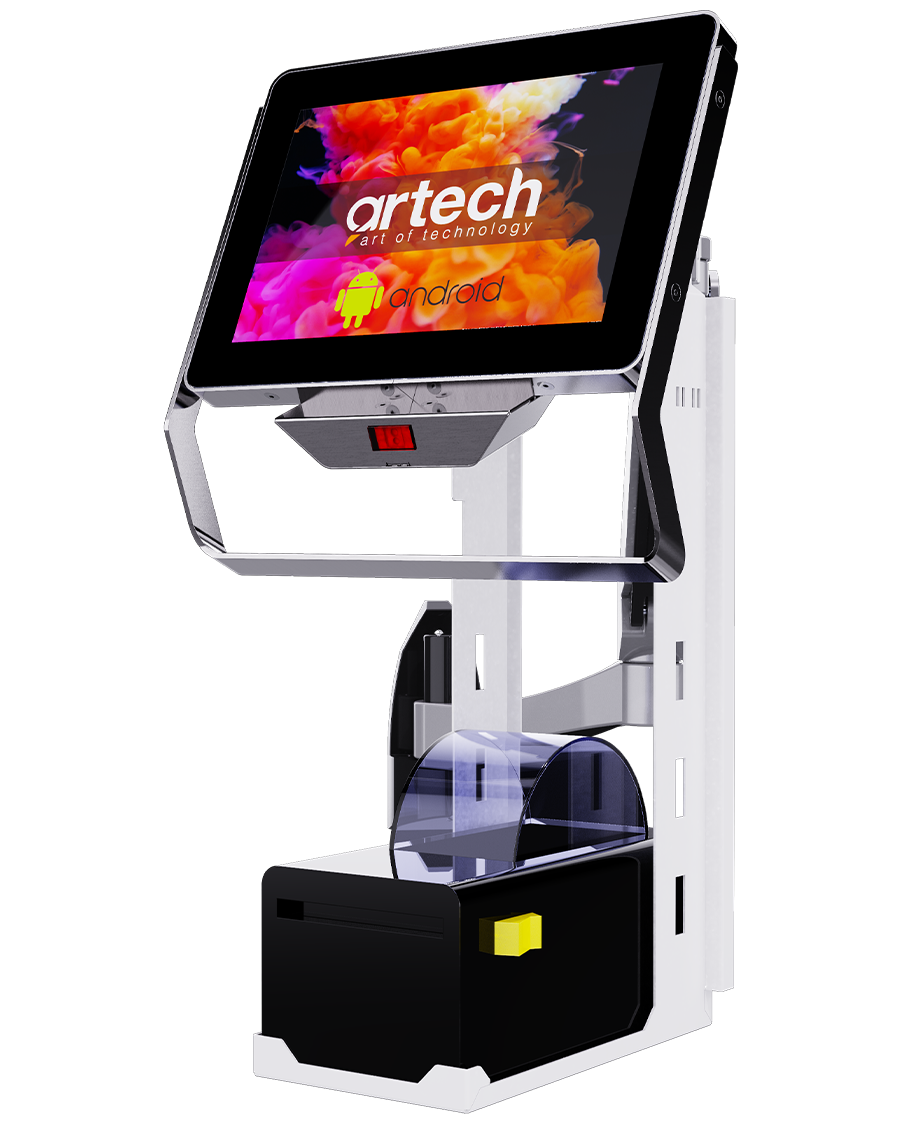

Pendant PC
Making Life Easier for Healthcare Personnel
Artech Pendant Computer solution is lightweight, suitable for medical use, easily movable in any direction, and has a space-saving compact structure. It is designed to make the lives of healthcare personnel working in confined spaces, such as blood collection booths, easier.
Key Features:
- Easy Movement with Pendant Arm: Provides flexibility and ease of use, allowing movement in any direction.
- Multi-Axis Pendant Arm: Offers ergonomic and flexible usage with the multi-axis pendant arm.
- Built-in Barcode Reader: Enables quick and accurate recording of patient information.
- Thermal Label Printer Carrier: Allows for practical and fast labeling with the label printer carrier feature.
- Medical-Grade Body: Hygienic and durable, suitable for medical use.
Thermal Label Printer Stand
Built-in Barcode Reader
Body for Medical Use
Sectors
Technical Specifications
System
CPU :
Intel® Celeron® Processor J6412, 1.5M Cache, up to 2.60 GHz (4 Core / 4 Thread) — Fanless
Cache :
1.5MB
Memory :
DDR4 — 8GB
Video RAM :
Max 128 MB shared memory
Chipset :
N.A.
Watchdog Timer :
255 Level Reset
System Fan :
Fanless
I/O
Printer Connectivity :
A barcode label printer can be connected — not included with the product.
Serial Port :
6x COM (RS-232/RS-485)
Parallel Port :
N.A.
USB Port :
3x USB 3.0 (Type-A) + 3x USB 2.0 (Type-A)
KB / MS :
1 x PS2 K/B and Mouse
LAN :
2x Intel® I225-V Gigabit LAN (RJ45, 10/100/1000 Mbps)
Wireless LAN :
Built-in Wi-Fi + antenna
Audio :
Line-out + MIC 3.5mm Jack
Expansion Slot :
MiniPCIe
Data Storage
HDD / Type :
256GB SSD
Feed
Input :
12V DC
Extra Video Output
Type :
2x HDMI
Max. Resolution :
4096x2160 @ 30Hz
LCD Screen
Type and Size :
10.1" — 16:10
Max. Resolution :
1280 x 800 (WXGA)
Pixel Pitch :
0.1695 mm x 0.1695 mm
Max Color :
16.7 M
Brightness (cd/m2) :
400 cd/m²
Contrast Ratio :
800:1
Viewing Angle :
170° (Horizontal — Left/Right) / 170° (Vertical — Up/Down)
Back Light MTBF :
30.000 hours
Touch Screen :
PCT (Projected Capacitive Touch) — Multi-touch, compatible with latex gloves
Mechanical Properties
1. :
Pendant Arm
2. :
Barcode Reader
3. :
Printer Stand
Mechanical & Environmental Specifications
Printer Stand :
Optional
IP Class :
IP65 — Front-panel design with protection against dust and liquid ingress
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Stainless steel and glass — Disinfectable antimicrobial surface
Front Frame :
Glass
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Built-in

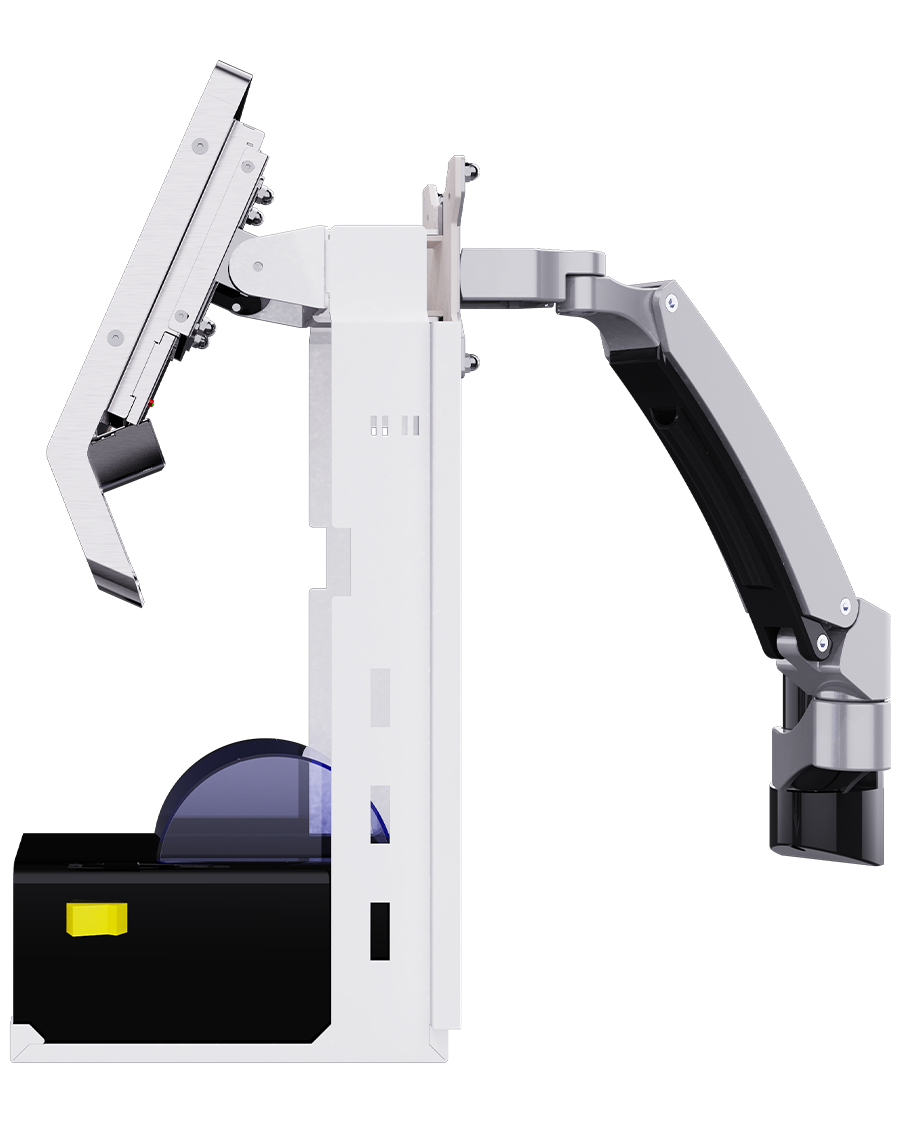

Pendant Arm
Mechanism :
Four-Bar Linkage Spring System
Specifications :
High-strength aluminum alloy
Horizontal Swivel :
±90°
Tilt :
-20° ~ +90°
Pivot :
360°
Height Adjustment Range :
315 mm — Spring-assisted free height adjustment
Load Capacity :
2 ~ 10 kg
VESA Compatibility :
75x75 mm / 100x100 mm
Cable Management :
Integrated internal cable management
Printer Mount :
Barcode label printer with mounting bracket included — printer not included.
Order Code
Operating System :
Compatible with Windows 10 / Windows 11 (64-bit)
CPU :
Intel® Celeron® Processor J6412, 1.5M Cache, up to 2.60 GHz (4 Core / 4 Thread) — Fanless
PSU :
12V DC
RAM :
8GB DDR4
HDD :
256GB SSD
Wifi :
Optional
QR Code Reader :
Built-in QR code and barcode scanner
Barcode Reader :
Built-in QR code and barcode scanner
