R-317 Series

It is a complete and sophisticated kiosk unit that can support all advanced functions required for Queue Management and Self Service Operations. It can integrate with one and two-dimensional barcode readers and hardware platforms such as Magstripe, Contact Chip, RFID and Memory Card readers. In addition, with its built-in thermal printer, it can produce queue slips or tickets.

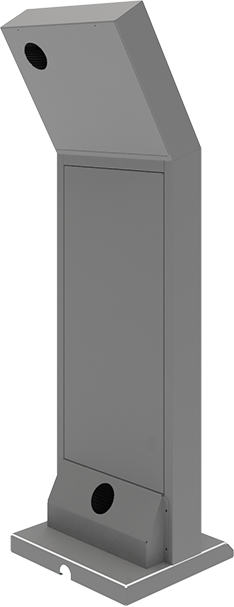

It has a front cover design for easy service and paper replacement, considering that there is no need to leave space to open a cover behind it and takes up less space. Kiosk screen protected against liquid contact.
Ergonomic and stylish design, which can be customized with your corporate colour and logo, will win the appreciation of your customers and provide prestige to your business.

  • High Resolution 16: 9 Wide Format Upright LCD Display with 21”/ 19” / 17” Screen Options
  • Capacitive Touch Technology Resistant to Break and Scratch
  • Fanless Intel® Celeron ™ Processor, Industrial Motherboard
  • OmniDirectional Internal Barcode and QRCode Reader
  • 2.4'' Thermal Receipt Printer With Long Life, Auto Cutter
  • Contactless and Contact Smart Card Reader
  • Space Saving, Front Cover, Easy Service and Paper Exchange Opportunity
  • Vandal Resistant Body
Vandal Resistance
Vandal Resistance

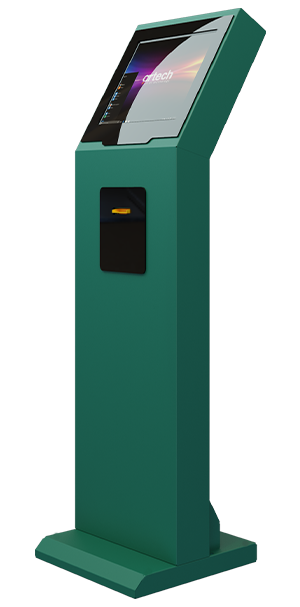

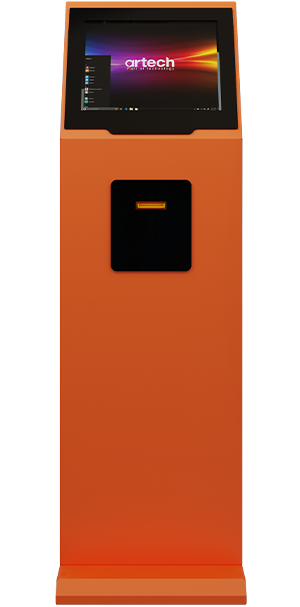

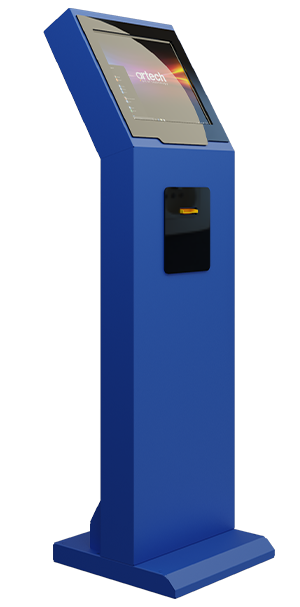

Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo
Kiosk in Desired Configuration
Kiosk in Desired Configuration

Sectors

Technical Specifications

System
CPU :
Intel® Celeron™ Processor J1900 Low Power Fanless
Cache :
2MB
Memory :
2 x DDR3 SoDIMM max. 4GB / 8GB
Video RAM :
Max128 MB shared memory
Control :
N.A.
Watchdog Timer :
255 Level Reset
System Fan :
1 x 4cm / 10CFM
I/O
Serial Port :
3 x RS-232 ports
Parallel Port :
N.A.
USB Port :
4 x USB 2.0
KB / MS :
1 x PS2 K/B and Mouse
LAN :
1 x LAN Realtek Gigabit Ethernet,
Wireless LAN :
802.11 b / g (Optional)
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
PCIe/MiniPCIe
Readers :
2d barcode reader
Writer :
Thermal Writer
Data Storage
HDD / Type :
2.5” HDD/SSD
Feed
Input :
110 / 220VAC veya 12 / 24VDC / Industrial Type Max 250W
Extra Video Output
Type :
HDMI
Max. Resolution :
1600 x 1200
LCD Screen
Type and Size :
17" / 4:3
Max. Resolution :
1280x1024, XGA
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
350
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
17" Touch-Resistive
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
N.A
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Floor Standing
Order Code
CPU :
J1900
PSU :
AC110/220, DC12/24
RAM :
R4, R8
HDD :
HDD 320GB, SSD32, SSD64
Wifi :
Optional
Writer :
Thermal Writer
Barcode Reader :
2d barcode reader
