SM-317 Series

Artech Elevator Information Displays: Interactive and Entertaining Information Experience in Elevators

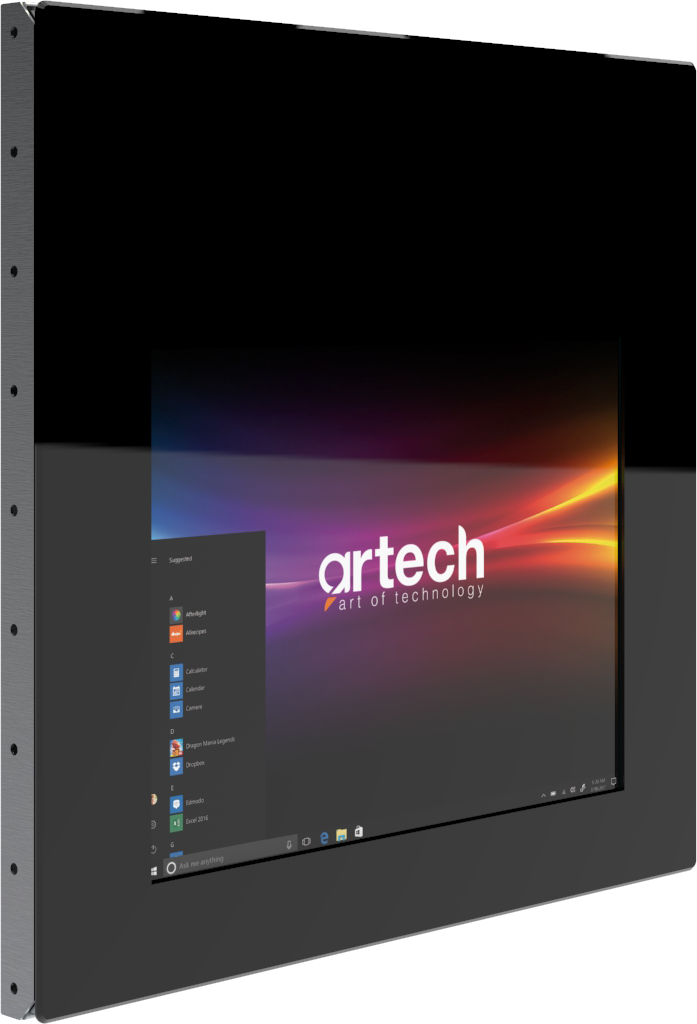

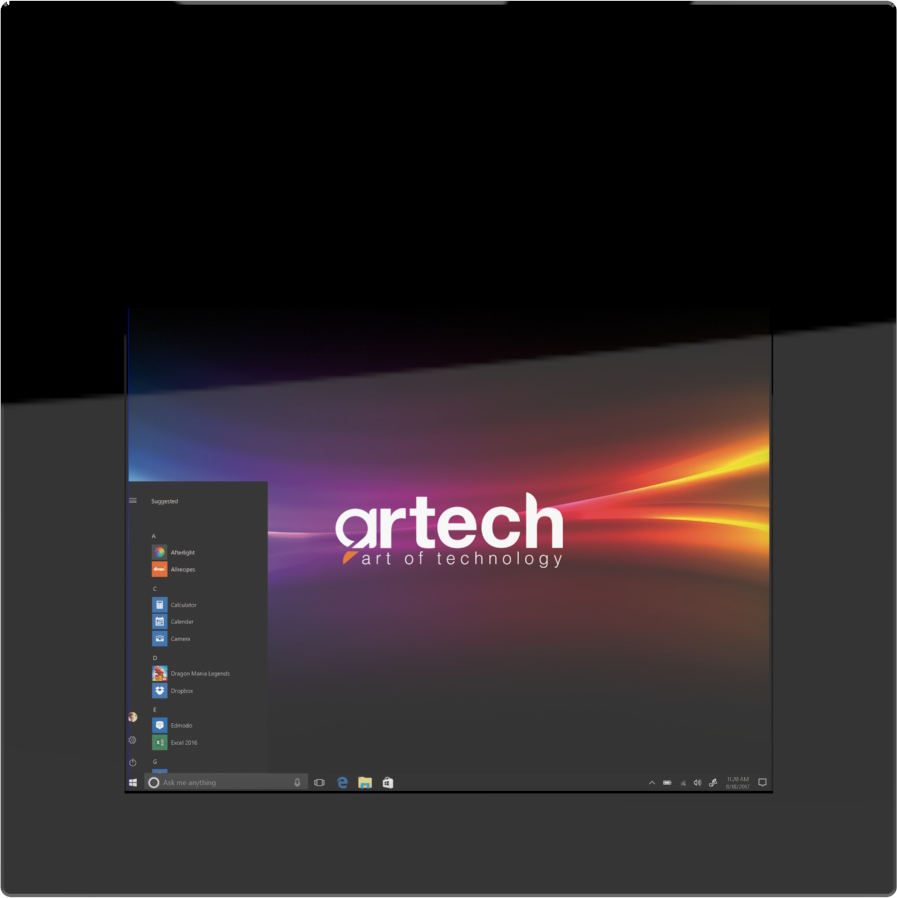

Artech Elevator Information Displays are Digital Signage Systems designed to make time spent in elevators more productive and enjoyable, effectively reaching your target audience. These systems transform elevator rides into a platform for information and entertainment, with the ability to broadcast various contents and manage them remotely. They feature a flush-mount casing for high retention, an easily serviceable screen and PC design, and a stylish design that suits elevator structures.

Key Features:

  • Flush-Mount Casing for High Retention: Perfectly fits into the elevator interior, offering an elegant design.
  • Easily Serviceable Screen and PC Design: Simplifies technical service and maintenance.
  • Stylish Design Suitable for Elevator Structures: Enhances the elevator experience with an aesthetically pleasing look.
Interactive Design
Interactive Design
Elegant Design
Elegant Design
Built-in Case
Built-in Case

Sectors

Technical Specifications

System
CPU :
All Winner R18, Quad Core,Cortex A53 1.5 GHz
Cache :
N.A.
Memory :
1G LPDDR3 (Option 2G)
Video RAM :
N.A.
Control :
N.A.
Watchdog Timer :
Support
Android OS :
Android 6.0
I/O
Parallel Port :
N.A.
USB Port :
2 x USB 2.0
KB / MS :
N.A.
LAN :
1x Lan
Wireless LAN :
802.11 b / g (Optional)
Audio :
Support L/R phone jack and 10W / 8Rx2
LCD Screen
Type and Size :
17" TFT Color / LVDS LCD
Max. Resolution :
1280x1024
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
250
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
Heavy-Duty Metal Case
Front Frame :
Glass
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Built-in
Order Code
CPU :
Cortex A53
PSU :
AC - 220VAC
RAM :
R2
HDD :
EMMC 8G, EMMC 32G
Wifi :
Optional

Support

Please contact us for information about the products or for technical support.
