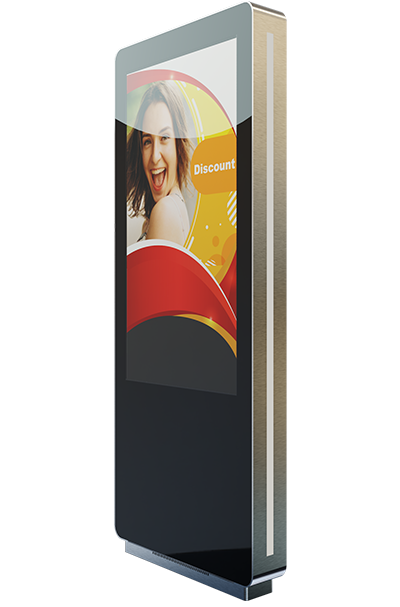

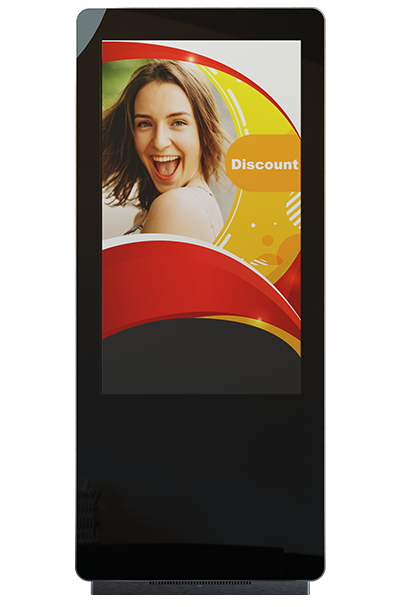

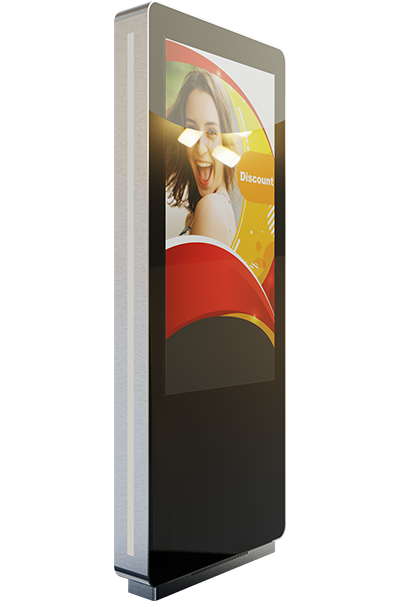

T-355 Series

Artech Totems, a digital information solution, allows you to perform your advertising, promotion, and information activities and publish content in many formats. With its aesthetic design and touch options, it offers the most appropriate solutions for corporate needs.

Slim and Aesthetic Design
Resistant to Vandalism
Corporate Color and Logo Options

Vandal Resistance

Elegant Design

Customizing with Corporate Color and Logo

Sectors

Technical Specifications

System

CPU :

All Winner R18, Quad Core,Cortex A53 1.5 GHz

Cache :

N.A.

Memory :

1G LPDDR3 (Option 2G)

Video RAM :

N.A.

Chipset :

N.A.

Watchdog Timer :

Support

Android OS :

Android 6.0

I/O

Serial Port :

N.A.

Parallel Port :

N.A.

USB Port :

2 x USB 2.0 compliant

LAN :

1 x Gigabit Ethernet (Opt 2 x Gigabit Ethernet)

Wireless LAN :

Optional - 802.11 b / g

Audio :

Support L/R phone jack and 10W / 8Rx2 2x10W Stereo Speaker

Data Storage

HDD / Type :

2.5” (500 GB HDD)

SSD :

64 GB / 128GB / 256 GB

Extra Video Output

Type :

Optional—VGA / DVI / HDMI

Max. Resolution :

1920x1080

LCD Screen

Type and Size :

55" LVDS

Max. Resolution :

1920x1080

Pixel Pitch :

0.630 mm x 0.630 mm

Max Color :

16.7 M

Brightness (cd/m2) :

450 cd

Contrast Ratio :

1000/1

Viewing Angle :

178°(H),178°(V)

Back Light MTBF :

50,000 hours

Mechanical & Environmental Features

Operating Temperature :

0 ~ 60°C

Storage Humidity :

10 ~ 90% (non-condensing)

Case :

Heavy-Duty Metal Case

Weight :

Variable according to screen size

Dimensions :

Variable according to screen size

Mounting :

Mobile/Ground Fixed - Optional

Touch :

Optional

Order Code

CPU :

Cortex A53

PSU :

AC - 220VAC

RAM :

HDD :

EEMC8G, EEMC32G(OPS)

Wifi :

Optional
