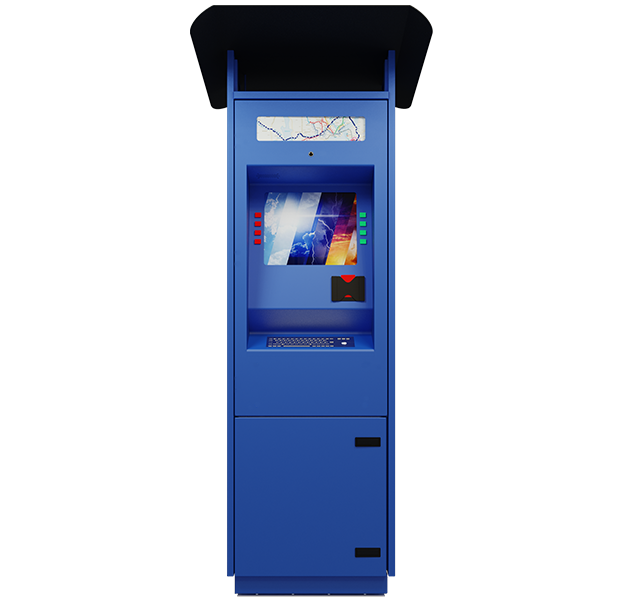

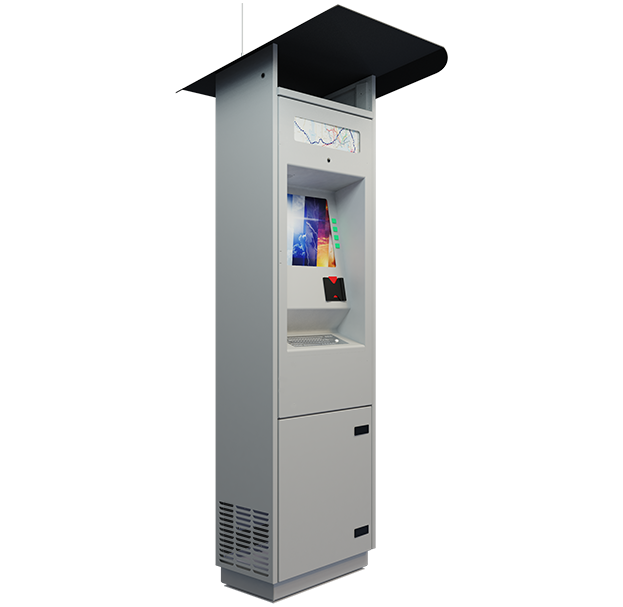

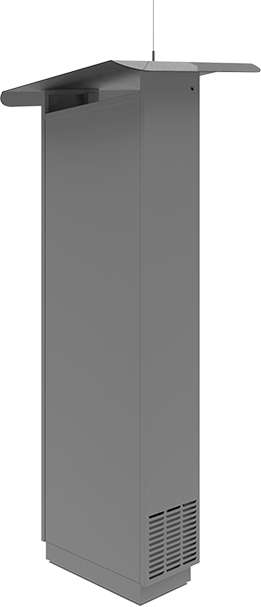

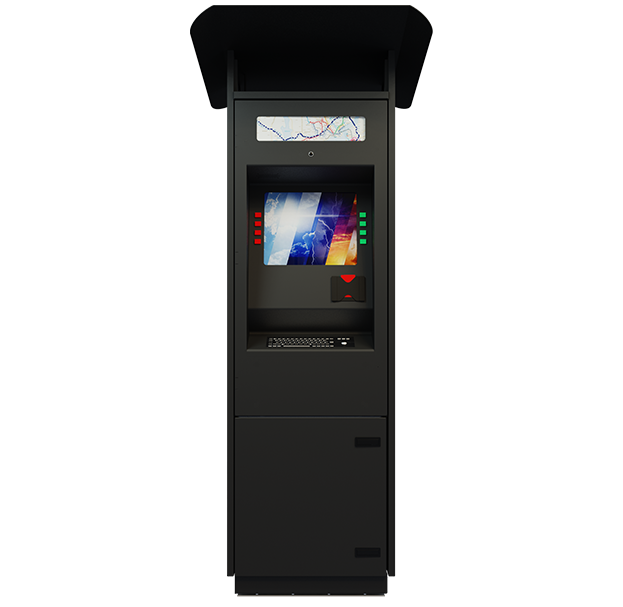

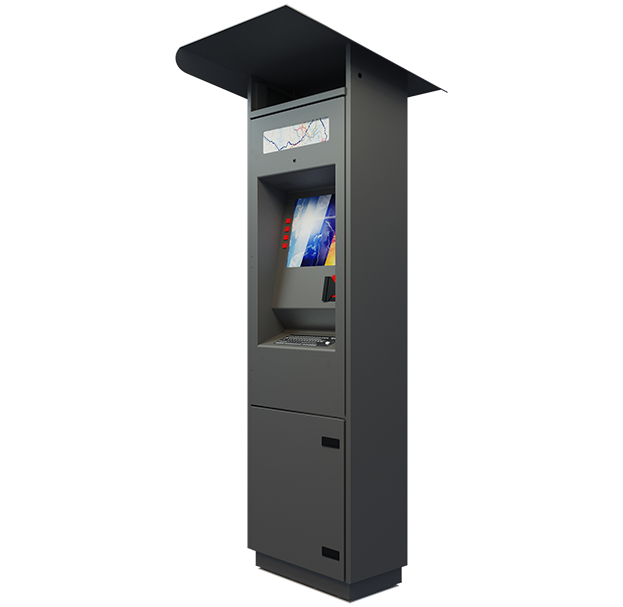

TVM-317 Series

Artech TVM and Pos Kiosks offer easy payment such as ticket sales and reservations, invoices or debt inquiries, and internet banking and provide more efficient human resources while providing intelligent solutions to your customers.

  • Kiosk Preference in Desired Configuration
  • Different Language and Currency Option
  • Customization Option with Corporate Color and Logo
  • Vandal Resistance

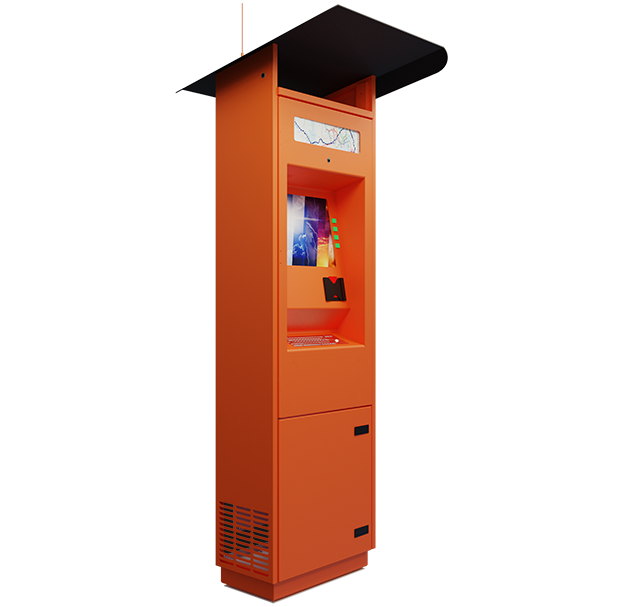

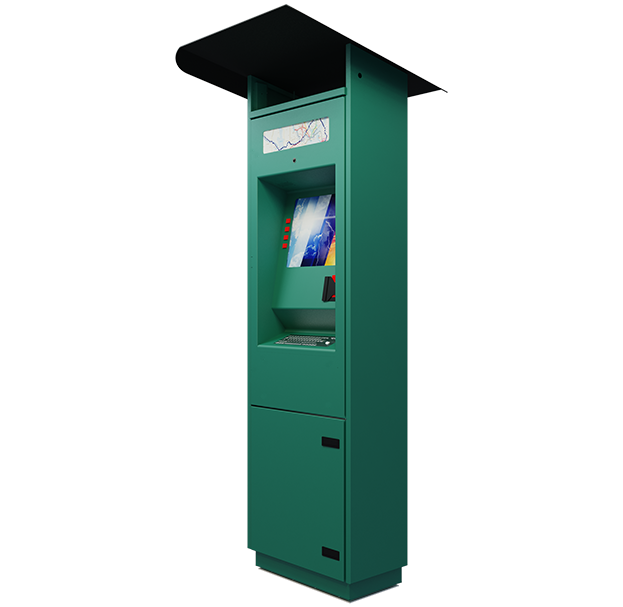

Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo
Kiosk in Desired Configuration
Kiosk in Desired Configuration
Language and Currency Selection
Language and Currency Selection

Sectors

Technical Specifications

System
CPU :
Intel® Celeron® Processor J1900
Cache :
2nd Level depends on CPU
Memory :
2 x DDR3 SoDIMM max 4GB / 8GB
Video RAM :
Intel® Gen7 Intel® Graphics DX 11
Control :
Intel® Soc
Watchdog Timer :
255 Level Reset
System Fan :
N.A.
I/O
Serial Port :
N.A.
Parallel Port :
N.A.
USB Port :
2 x USB 2.0 compliant
LAN :
1 x Gigabit Ethernet (Optional 2 x Gigabit Ethernet)
Audio :
2x10W Stereo Speaker
Readers :
Barcode Reader
Card :
Credit Card Slot
Keypad :
Credit Card KeyPad
Microphone :
6MM mic
Writer :
60mm Thermal Printer
Camera :
2Mp Usb Camera
Data Storage
HDD / Type :
2.5” (500 GB HDD)
SSD :
64 GB / 128GB / 256 GB
Feed
Input :
220VAC
UPS :
1KVA
Extra Video Output
Type :
Optional—VGA / DVI / HDMI
Max. Resolution :
1920x1080
LCD Screen
Type and Size :
17"
Max. Resolution :
1280x1024, XGA
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
1000cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
17" Touch
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
10 ~ 90% (non-condensing)
Case :
Heavy-Duty Metal Case
İklimlendirme :
Active Fan System and Filter
Weight :
Variable according to screen size
Dimensions :
Variable according to screen size
Mounting :
Mobile/Ground Fixed - Optional
Order Code
CPU :
J1900
PSU :
AC - 220VAC
RAM :
R4, R8
HDD :
HDD 500GB(OPS), SSD64, SSD128, SSD256
Wifi :
N.A

Support

Please contact us for information about the products or for technical support.
