M-415 Series

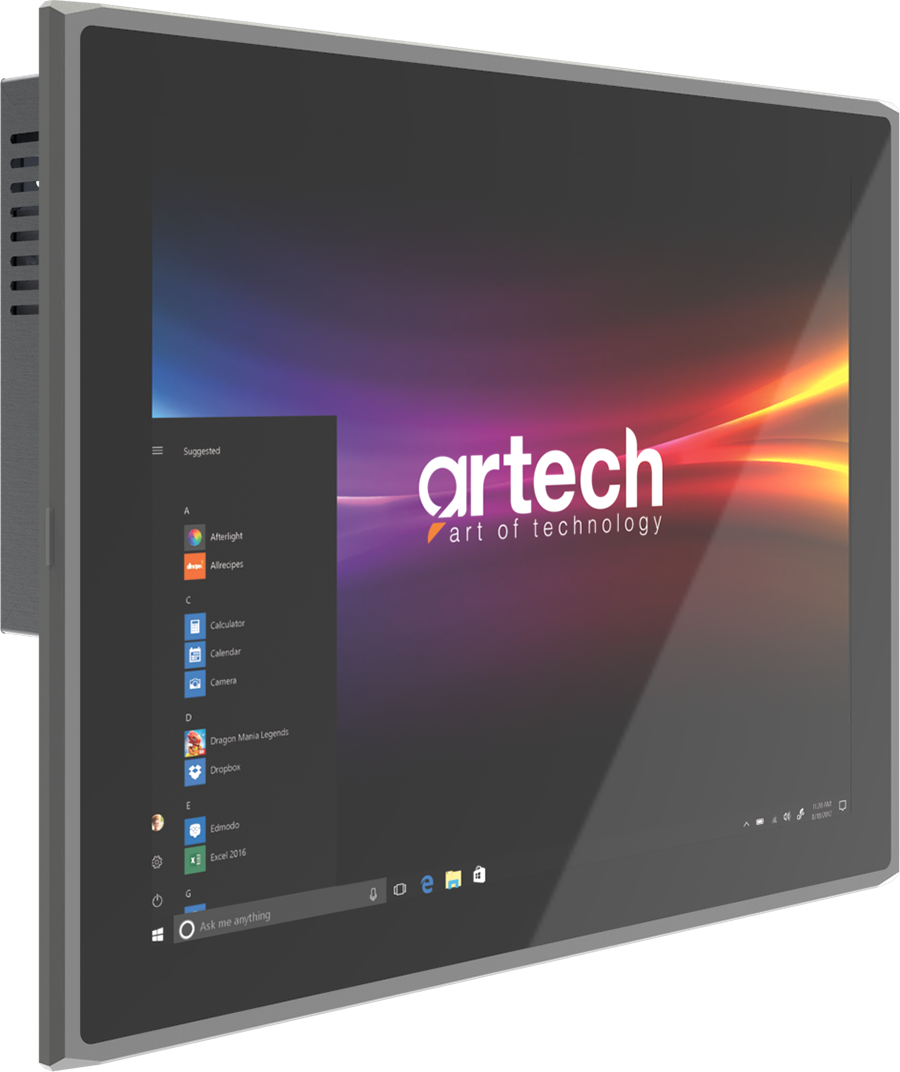

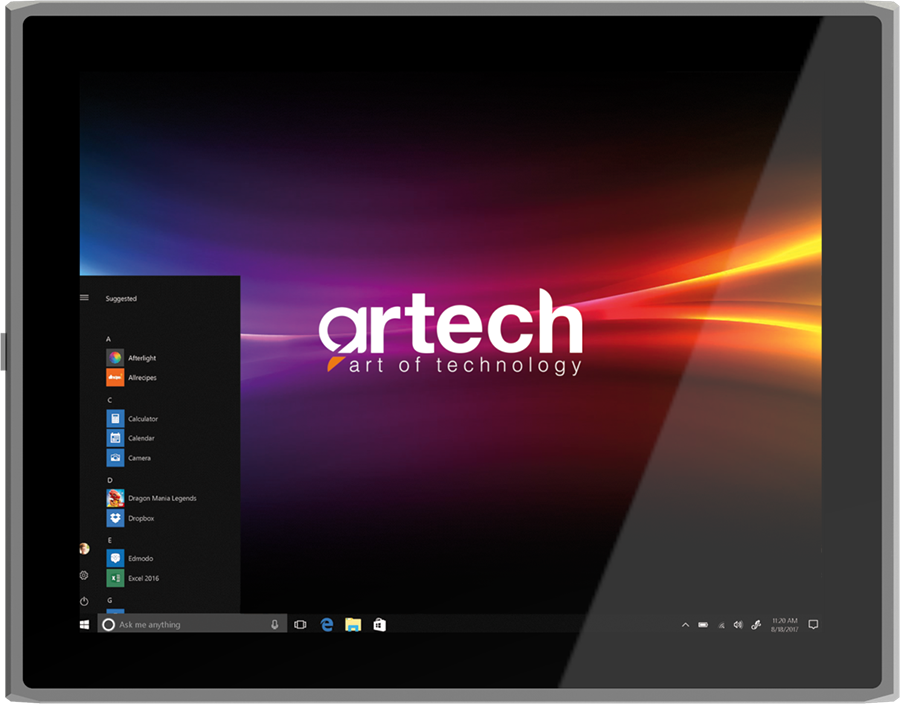

Artech Industrial Monitor is an industrial grade compact LCD display solution designed for digital information and corporate communication applications.

  • IP65 Front Panel Protection
  • Industrial Stainless Steel Body
  • Power Supply Filter
  • Suitable for 24/7 Working
Power Supply Filter
Power Supply Filter
IP65 Front Panel Protection
IP65 Front Panel Protection
Industrial Stainless Steel Body
Industrial Stainless Steel Body

Sectors

Technical Specifications

Feed
Power (Max) :
15W
Input :
110 / 220VAC or 12 / 24VDC
LCD Screen
Type and Size :
15" LVDS
Max. Resolution :
1024 X 768 , XGA
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
350cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
15" Touch - Resistive
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Order Code
PSU :
AC - 110/220 VAC, DC - 12/24 VDC
Video Input
Type :
HDMI/DVI/VGA

Support

Please contact us for information about the products or for technical support.
