M415-E Series

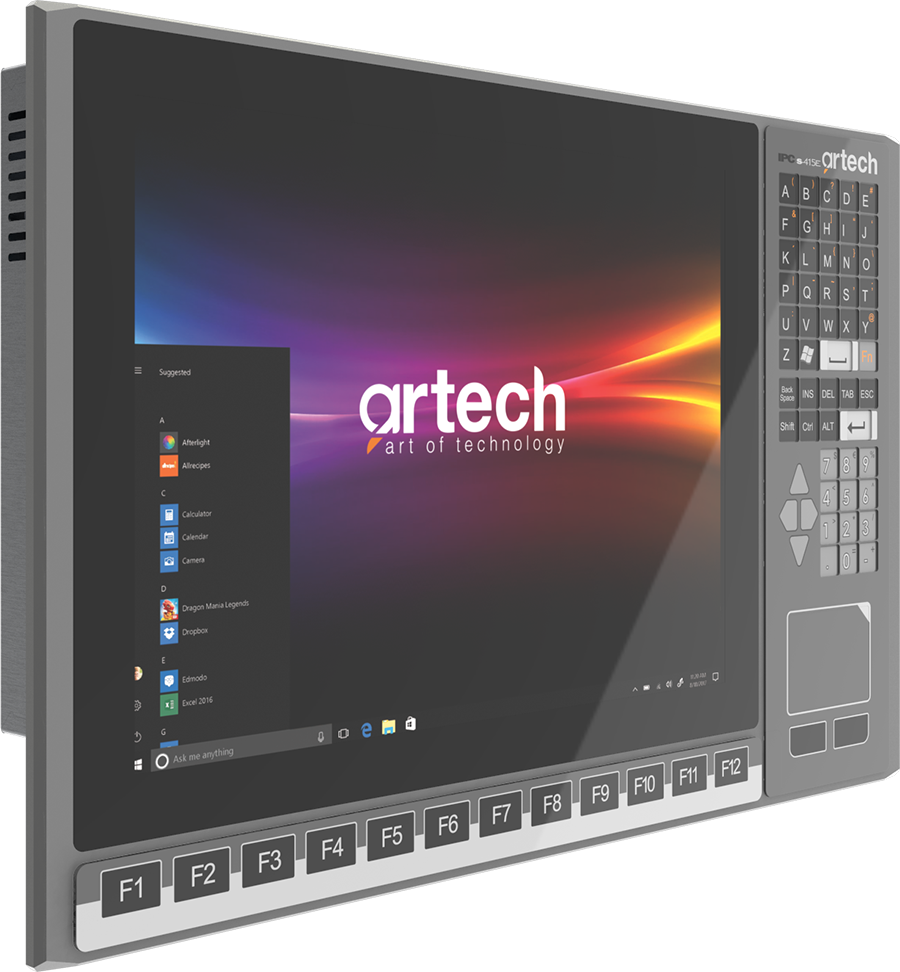

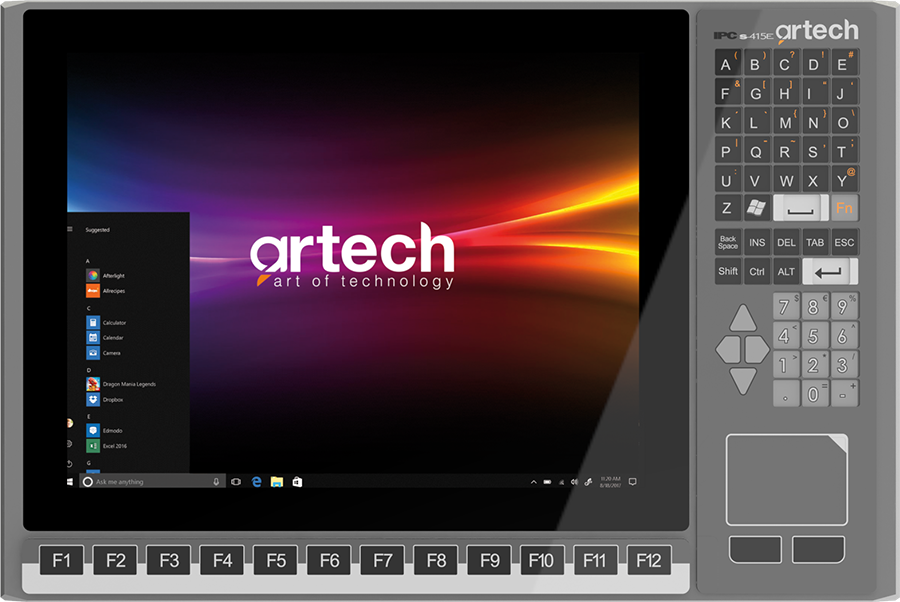

Artech Industrial Monitor is an industrial grade compact LCD display solution designed for digital information and corporate communication applications.

  • Suitable for 24/7 Working
  • Internal Industrial Keyboard and Touchpad Option
  • Power Supply Filter
  • Dust Proof, Industrial Type Metal Body
Industrial Dust Proof Metal Case
Industrial Dust Proof Metal Case
IP65 Front Panel Protection
IP65 Front Panel Protection
Industrial Stainless Steel Body
Industrial Stainless Steel Body
Power Supply Filter
Power Supply Filter

Sectors

Technical Specifications

Feed
Power (Max) :
15W
Input :
110 / 220VAC or 12 / 24VDC
LCD Screen
Type and Size :
15" LVDS
Max. Resolution :
1024 X 768 , XGA
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
350cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
15" Touch - Rezistif
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Order Code
PSU :
AC - 110/220 VAC, DC - 12/24 VDC
Output
Usb :
Usb Integrated Industrial Type Membrane Switch Full Keyboard & Touchpad
Video Input
Type :
HDMI/DVI/VGA

Support

Please contact us for information about the products or for technical support.
