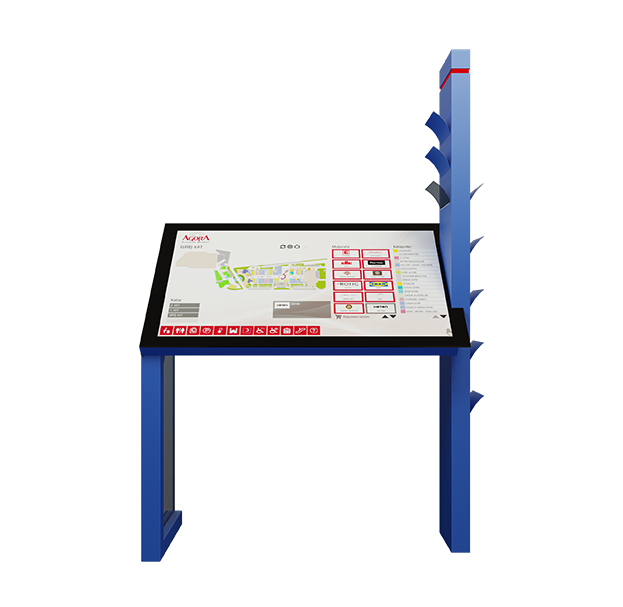

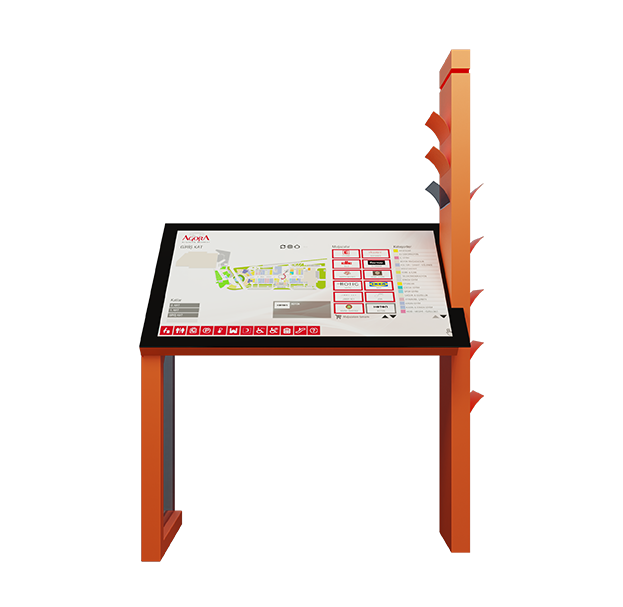

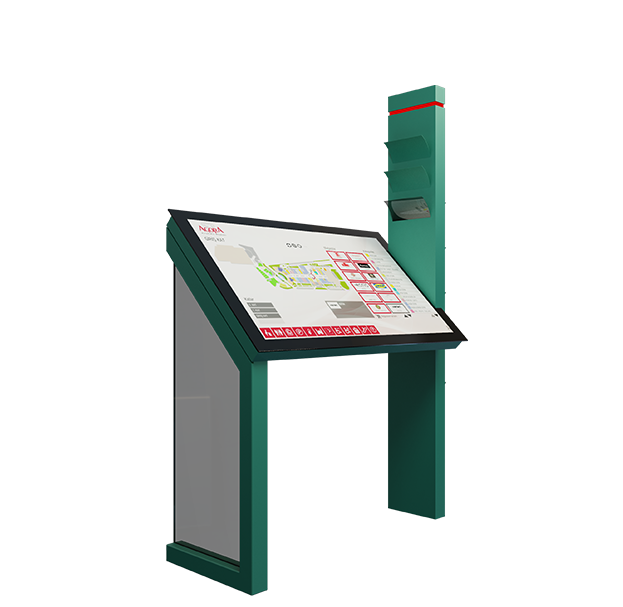

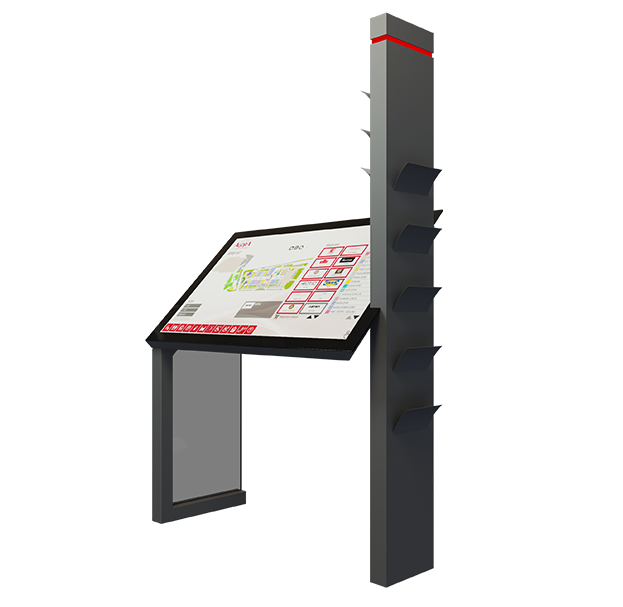

TM-355 Series

Wayfinding Kiosk, enables people to easily find the location of stores, restaurants, departments in shopping malls, hospitals, airports and public institutions.

Artech Wayfinding Kiosk; It is our solution that provides the fastest and easiest way for people to reach the destination they want to without getting support from the facility officers. Artech Wayfinding Kiosks can be positioned in areas such as shopping malls, plazas, airports, public institutions, where the density is high.

  • Horizontal Touch Solution
  • Ergonomic and Stylish Design
  • Interactive Solution Opportunity for Customers
  • Vandal Resistant Design
  • Customization with Corporate Color and Logo
Interactive Design
Interactive Design
Wide Touch Screen
Wide Touch Screen
Ergonomic Design
Ergonomic Design

Sectors

Technical Specifications

System
CPU :
Intel® Icore i5/i7
Cache :
2nd Level depends on CPU
Memory :
4GB / 8GB
Video RAM :
Max 128 MB shared memory
Control :
Intel® Soc / QM77
Watchdog Timer :
255 Level Reset
System Fan :
N.A.
I/O
Serial Port :
N.A.
USB Port :
2 x USB 2.0
LAN :
1 x LAN Realtek Gigabit Ethernet
Wireless LAN :
802.11 b / g(Optional)
Audio :
2x10W Stereo Speaker
Data Storage
HDD / Type :
2.5 ”(500 GB HDD)
SSD :
64 GB / 128GB / 256 GB
Feed
Input :
220VAC
LCD Screen
Type and Size :
55" LVDS
Max. Resolution :
1920x1080
Pixel Pitch :
0.630 mm x 0.630 mm
Max Color :
16.7 M
Brightness (cd/m2) :
450cd
Contrast Ratio :
1000/1
Viewing Angle :
178°(H),178°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
Capacitive Touchscreen
Extra Video Output
Type :
HDMI/DVI/VGA Optional
Max. Resolution :
1920x1080
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
10 ~ 90% (non-condensing
Case :
Heavy-Duty Metal Case
Front Frame :
Metal
Weight :
Variable according to screen size
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Mobile / Fixed on Ground
Order Code
CPU :
J1900, i5, i7
PSU :
AC - 220VAC
RAM :
R4, R8, R16
HDD :
HDD 500GB(OPS), SSD64, SSD128, SSD256
Wifi :
Optional

Support

Please contact us for information about the products or for technical support.
