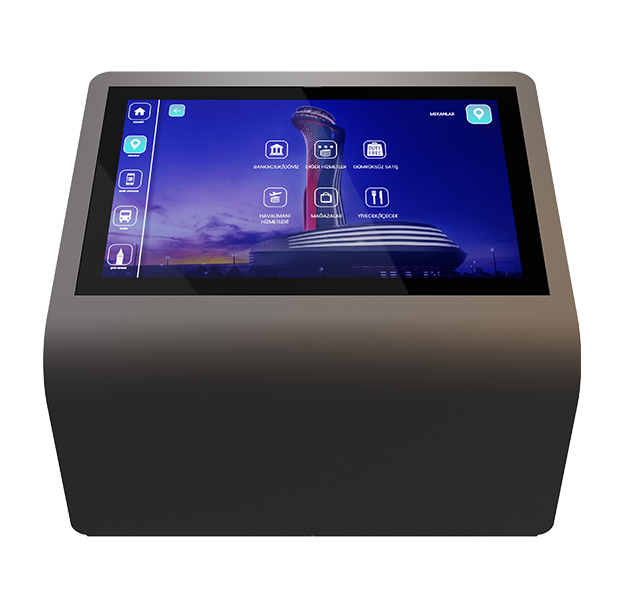

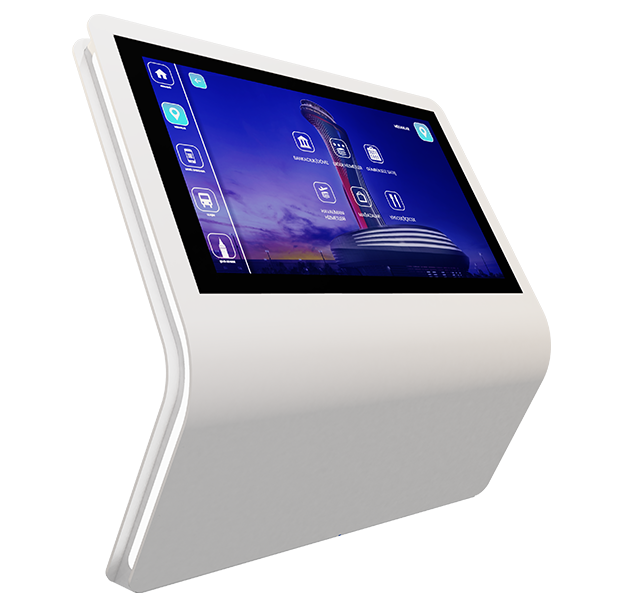

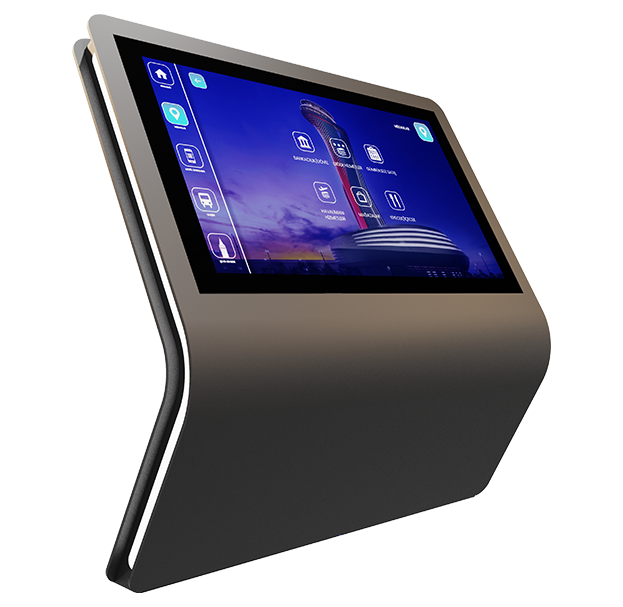

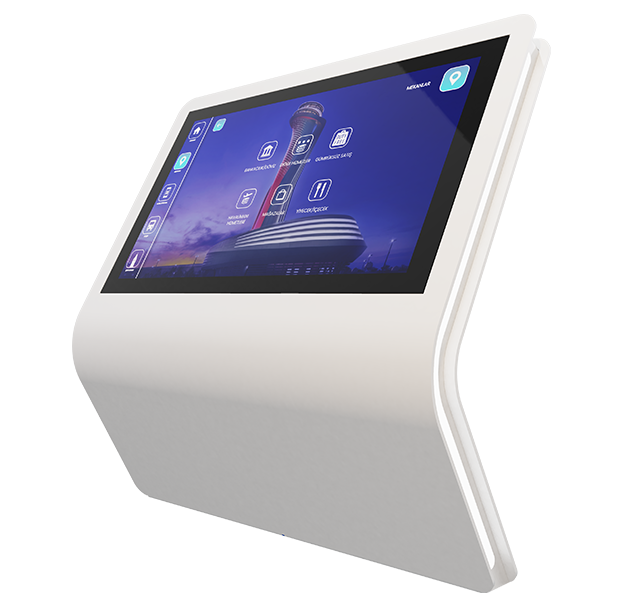

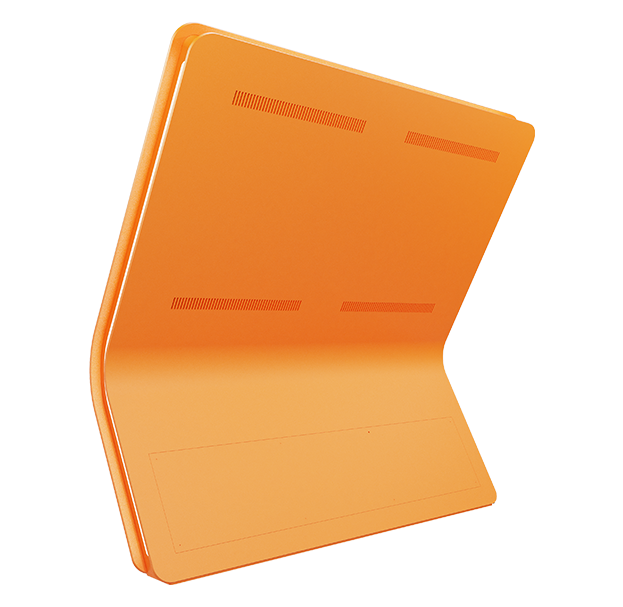

TM-455 Series

Artech Wayfinding Kiosk; It is our solution that provides the fastest and easiest way for people to reach the destination they want to without getting support from the facility officers. Artech Wayfinding Kiosks can be positioned in areas such as shopping malls, plazas, airports, public institutions, where the density is high.

  • Horizontal Touch Solution
  • Ergonomic and Stylish Design
  • Interactive Solution Opportunity for Customers
  • Vandal Resistant Design
  • Customization with Corporate Color and Logo
Vandal Resistance
Vandal Resistance
Elegant Design
Elegant Design

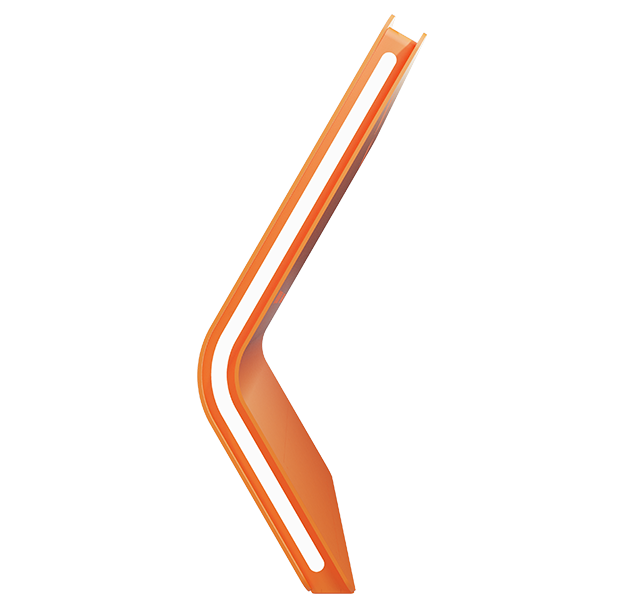

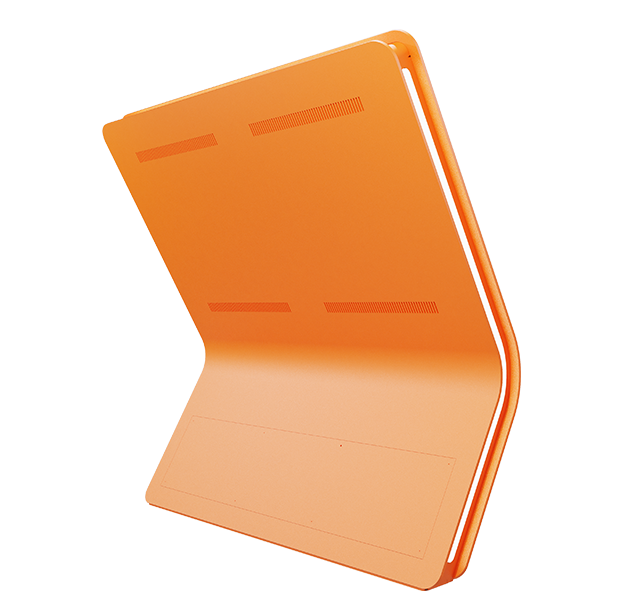

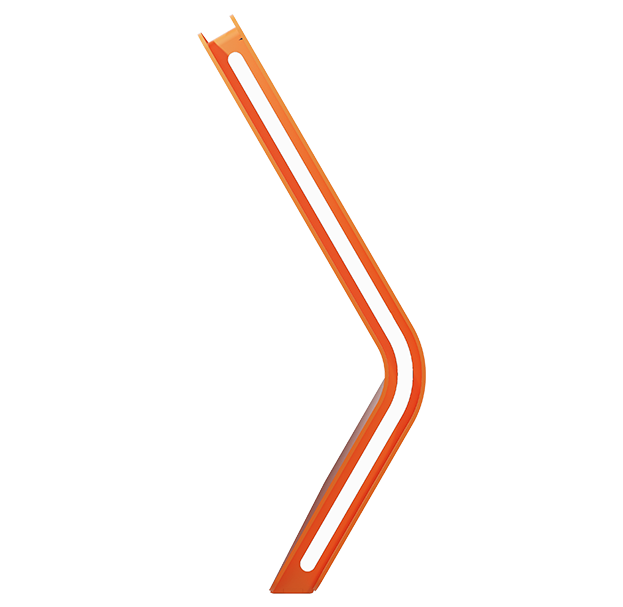

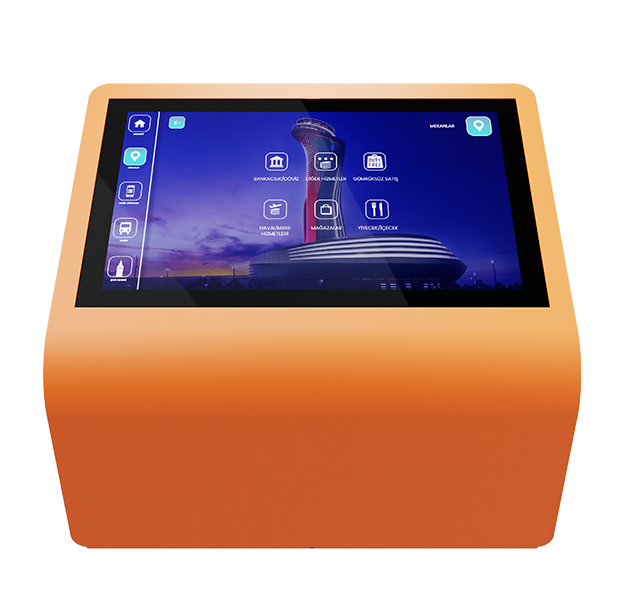

Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo
Touch Screen Options
Touch Screen Options
Ergonomic Design
Ergonomic Design

Sectors

Technical Specifications

System
CPU :
Intel i7/ i5/ i3
Cache :
By CPU
Memory :
8GB/ 16GB/ 32GB
Video RAM :
Intel® Gen9 Graphics DX 11/12(Shared)
Chipset :
H110
Watchdog Timer :
0, 1, 2, ...255sec
System Fan :
N.A
I/O
Serial Port :
N.A
Parallel Port :
N.A
USB Port :
2 x USB 3.1
LAN :
1 x Intel Gigabit LAN
Wireless LAN :
N.A
Audio :
Mic-in, Line-out
Data Storage
HDD / Type :
N.A
SSD :
64GB/ 128GB/ 256GB/ 512GB
Feed
Input :
220V
LCD Screen
Type and Size :
55" TFT LCD
Max. Resolution :
1920 x 1080 pixels
Pixel Pitch :
0.630(H) x 0.630(W)
Max Color :
16.7M
Brightness (cd/m2) :
450 cd
Contrast Ratio :
1100/1
Viewing Angle :
178°(H),178°(V)
Back Light MTBF :
50,000 hrs
Touch Screen :
55" Touch - Capacitive
Extra Video Output
Type :
2x HDMI
Max. Resolution :
4096x2160@24Hz
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
10 ~ 90% (non-condensing)
Case :
Heavy Duty Metal Case
Weight :
Variable According to the Screen Size
Dimensions :
1490mm x 1500mm x 593mm
Mounting :
Fixing to the Ground
Order Code
CPU :
Intel i7/ i5/ i3
PSU :
220V
RAM :
8GB/ 16GB/ 32GB
HDD :
64GB/ 128GB/ 256GB/ 512GB
Wifi :
Optional

Support

Please contact us for information about the products or for technical support.
