Technical Specification
TO-355 Series

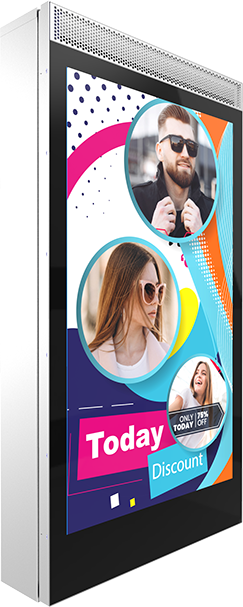

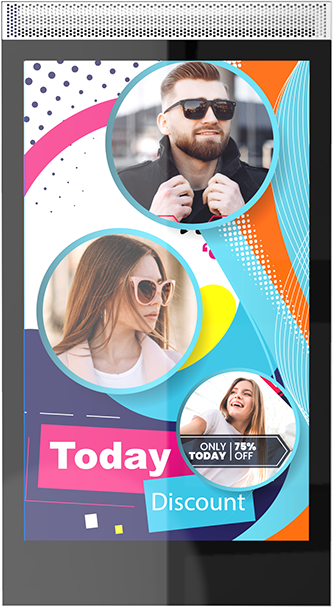

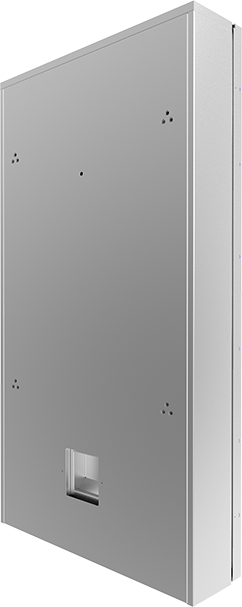

Artech Outdoor Totem allows you to perform advertising, promotion and information activities without being affected by environmental conditions.
Artech Outdoor Totem allows you to perform advertising, promotion and information activities without being affected by environmental conditions. It is a digital information solution that will enable you to publish content in many formats. Aesthetic design and touch options offer the most appropriate solutions for your corporate needs.
- Slim, Aesthetic Design and Interactive Solutions
- Suitable for Outdoor Conditions
- Corporate Color and Logo Options
Elegant Design
Customizing with Corporate Color and Logo
Durable and Long Lasting
Sectors
Technical Specifications
System
CPU :
Intel® Core i7 / i5
Cache :
By CPU
Memory :
4GB / 8GB
Video RAM :
Max128 MB shared memory
Control :
Intel® / QM77
Watchdog Timer :
255 Level Reset
System Fan :
N.A.
I/O
Serial Port :
N.A.
Parallel Port :
N.A.
USB Port :
2 x USB 2.0 compliant
LAN :
1 x Gigabit Ethernet (Opsiyonel 2 x Gigabit Ethernet)
Wireless LAN :
Optional - 802.11 b / g
Audio :
2x10W Stereo Speaker
Data Storage
HDD / Type :
2.5” (500 GB HDD)
SSD :
64 GB / 128GB / 256 GB
Feed
Extra Video Output
Type :
Optional—VGA / DVI / HDMI
Max. Resolution :
1920x1080
LCD Screen
Type and Size :
55" LVDS
Max. Resolution :
1920x1080
Pixel Pitch :
0.4902 mm x 0.4902 mm
Max Color :
16.7 M
Brightness (cd/m2) :
2500 cd
Contrast Ratio :
3000/1
Viewing Angle :
178°(H),178°(V)
Back Light MTBF :
50,000 hours
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
10 ~ 90% (non-condensing)
Case :
Heavy-Duty Metal Case
Weight :
Variable according to screen size
Dimensions :
Variable according to screen size
Mounting :
Mobile/Ground Fixed - Optional
Order Code
CPU :
i5, i7
PSU :
AC - 220VAC
RAM :
R4, R8, R16
HDD :
500GB HDD(Opt), SSD 64GB, SSD 128GB, SSD 256GB
Wifi :
Optional
