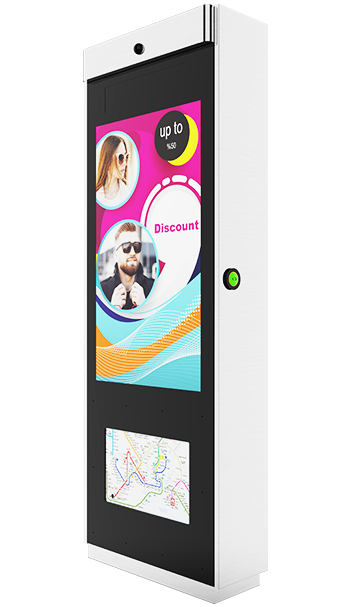

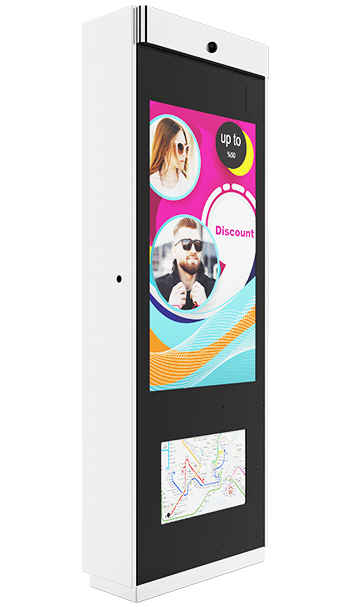

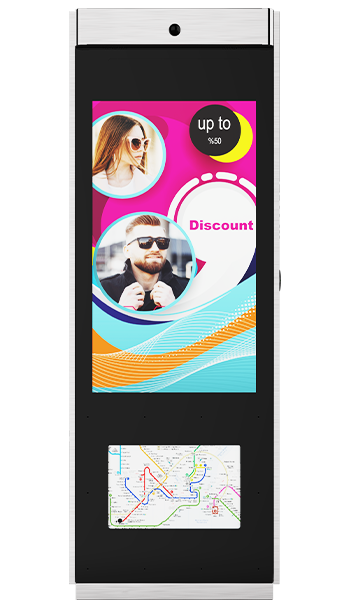

TO-455 Series

Artech Outdoor Totem allows you to carry out your advertising, promotion and information activities without being affected by environmental conditions. It is a digital information solution that allows you to publish content in many formats. It offers the most suitable solutions for your corporate needs with its aesthetic design and touch options.

Stylish Design and Interactive Solutions
Working Feature Suitable for Outdoor Conditions
Corporate Color and Logo Options

Elegant Design

Customizing with Corporate Color and Logo

Durable and Long Lasting

Sectors

Transportation

Entertainment

Smart City

Technical Specifications

System

CPU :

All Winner R18, Quad Core,Cortex A53 1.5 GHz

Cache :

N.A.

Memory :

1G LPDDR3 (Option 2G)

Video RAM :

N.A.

Chipset :

N.A.

Watchdog Timer :

Support

Android OS :

Android 6.0

I/O

Serial Port :

3 x RS-232 ports (Optional)

USB Port :

2 x USB 2.0 compliant

LAN :

1 x Lan

Wireless LAN :

Optional - 802.11 b / g

Audio :

2x10W Stereo Speaker

Camera :

Mobil Dome Network Camera

Data Storage

HDD / Type :

2.5” (500 GB HDD)

SSD :

64 GB / 128GB / 256 GB

Extra Video Output

Type :

Optional—VGA / DVI / HDMI

Max. Resolution :

1920x1080

LCD Screen

Type and Size :

55" LVDS

Max. Resolution :

1920x1080

Pixel Pitch :

0.4902 mm x 0.4902 mm

Max Color :

16.7 M

Brightness (cd/m2) :

2500 cd

Contrast Ratio :

3000/1

Viewing Angle :

178°(H),178°(V)

Back Light MTBF :

50,000 hours

Mechanical & Environmental Features

Operating Temperature :

0 ~ 60°C

Storage Humidity :

10 ~ 90% (non-condensing)

Case :

Heavy-Duty Metal Case

Weight :

Variable according to screen size

Dimensions :

Variable according to screen size

Mounting :

Mobile/Ground Fixed - Optional

Order Code

CPU :

Cortex A53

PSU :

AC - 220VAC

RAM :

HDD :

500GB HDD(Opt), SSD 64GB, SSD 128GB, SSD 256GB

Wifi :

Optional
