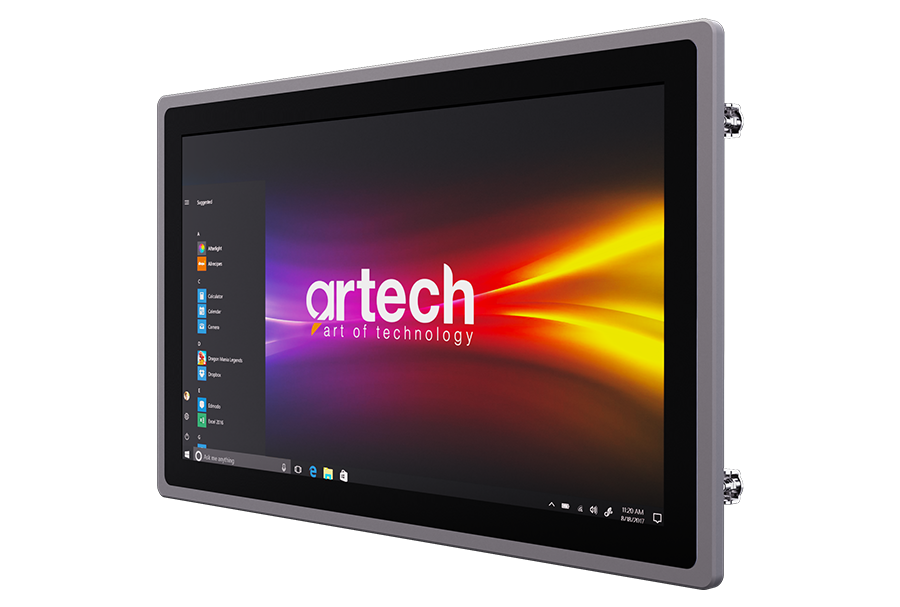

IPC-621 Ultimate Series

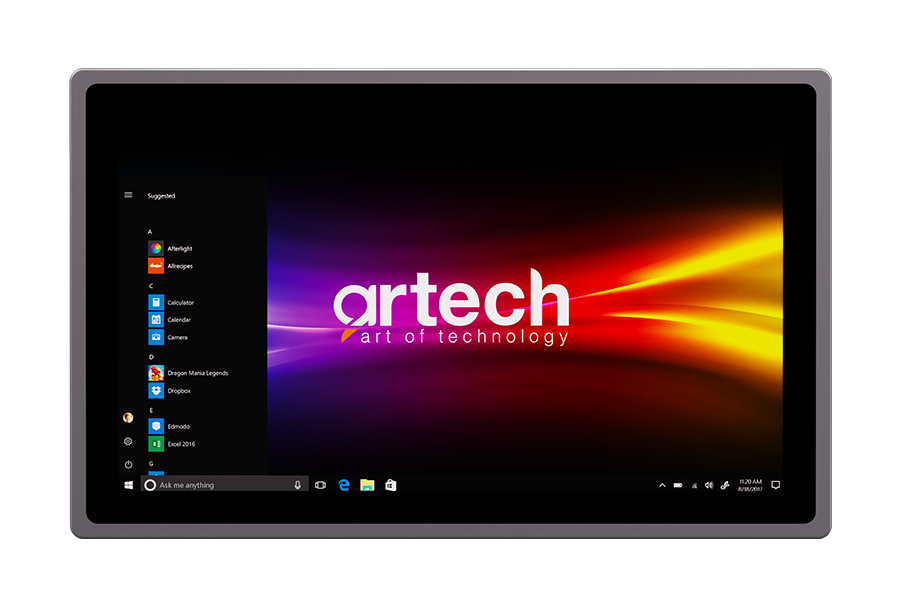

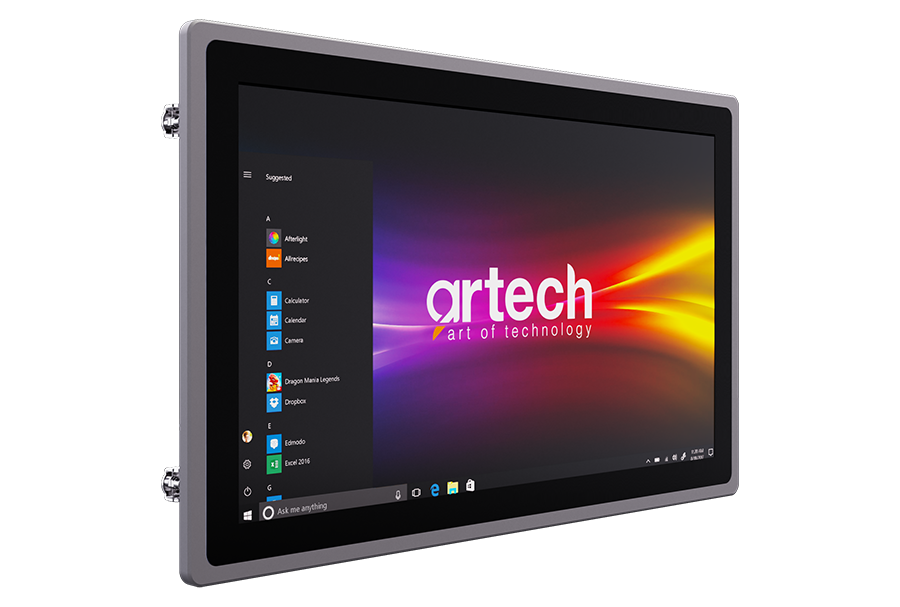

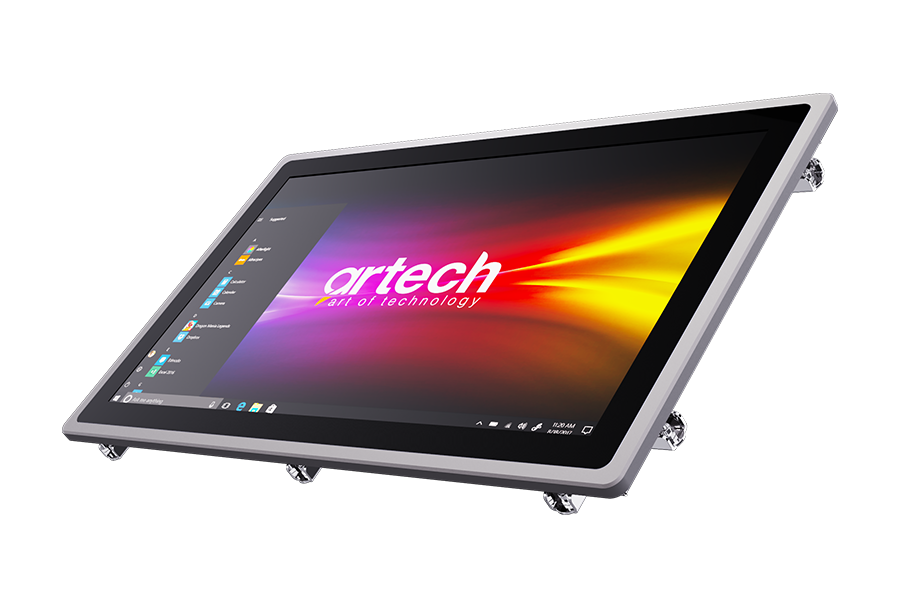

21" Touch Screen Industrial Panel PC
Artech Ultimate Series 21" Touchscreen Industrial Panel PC is designed to seamlessly integrate into the various challenges of production environments. These touchscreen industrial computers are capable of providing uninterrupted and high performance in harsh industrial conditions.
Key Features:
- Fanless iCore Next-Generation Processor: Combines advanced processing power with energy efficiency and silent operation.
- Enhanced Touch Technology: Offers maximum durability with 3 mm reinforced, resistive, and capacitive flat touch options.
- Flexible Storage Solutions: Easy to remove and replaceable disk slot for simplified data management.
- Multipurpose Expansion Slot: Equipped with various expansion options like PCIex, IO, additional USB, and serial ports.
- Reliable Power Supply: Ensures stable performance with 24 VDC power supply.
- Wide Operating Temperature Range: Smooth performance between 0-60 °C degrees.

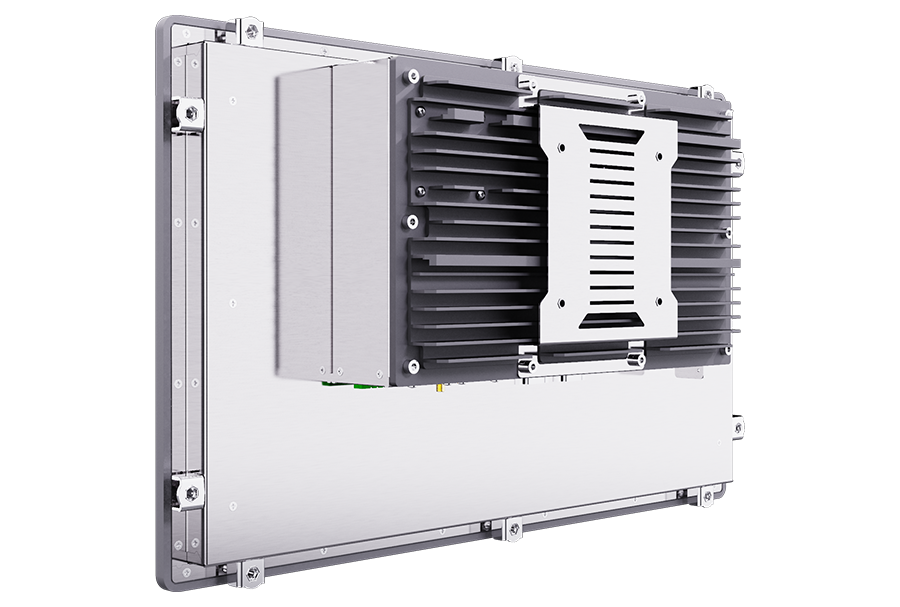

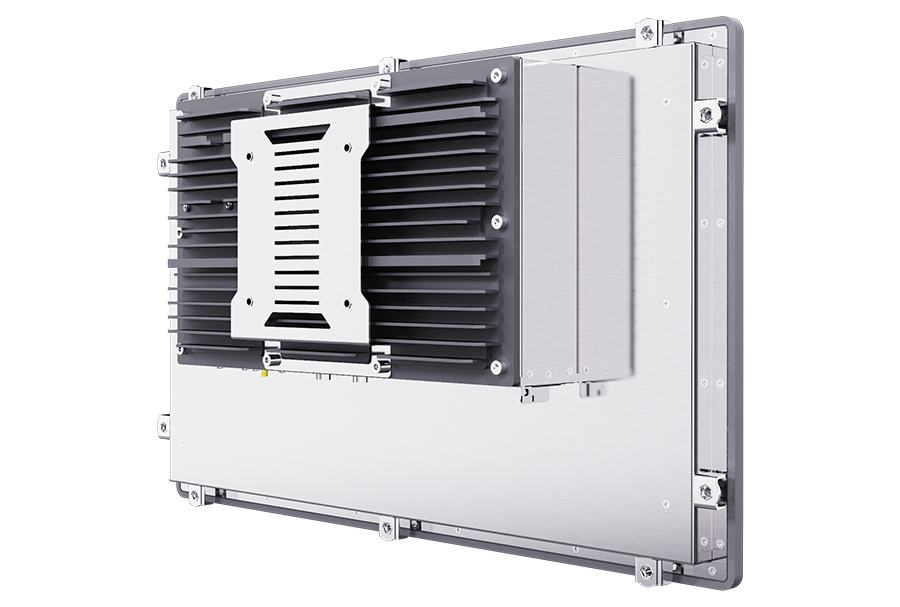

- Durable Construction: Fanless, fully enclosed, and dust-protected industrial-grade stainless steel metal body for long-lasting use.
Artech Ultimate Series 21" Touchscreen Industrial Panel PC offers a durable, long-lasting solution suitable for 24/7 continuous operation conditions, meeting all the requirements of industrial environments.

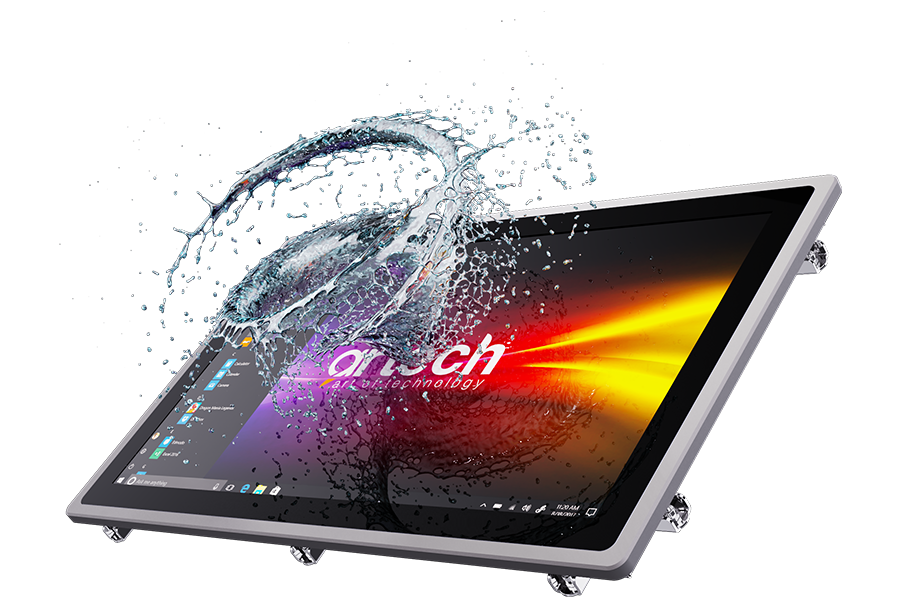

IP65 Front Panel Protection
10 '' / 15 '' / 17 '' / 21 '' TFT Screen Model Options
Bright and High Contrast TFT LCD Screen
High Precision Flat Touch Screen
Wide Viewing Angle
Sectors
Technical Specifications
System
CPU :
Intel i7/ i5/ i3
Cache :
By CPU
Memory :
8GB/ 16GB/ 32GB
Video RAM :
Shared Memory
Chipset :
H110
Watchdog Timer :
1sec. or 1min. Step
System Fan :
Fanless

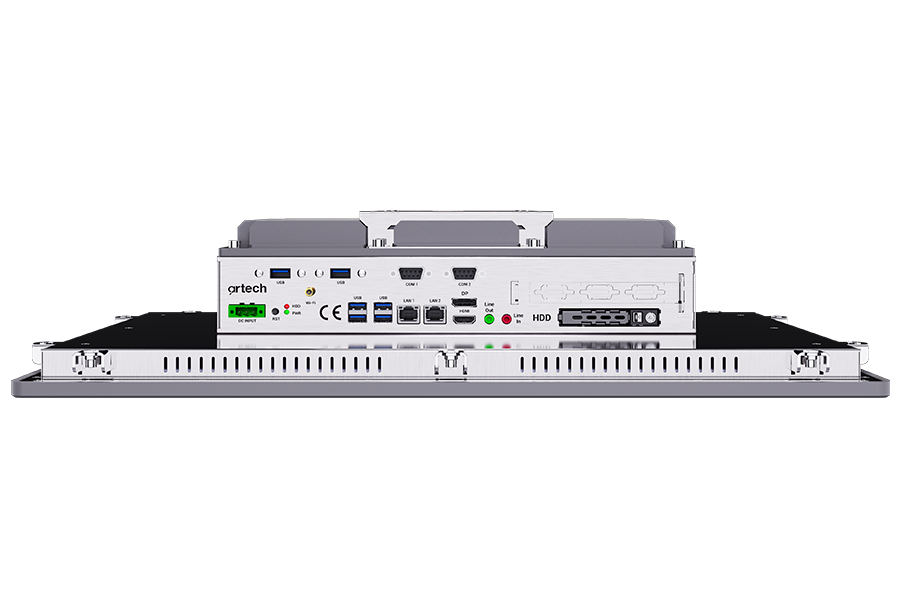

I/O
Serial Port :
2 x RS232/ 422/ 485
Parallel Port :
N.A
USB Port :
4 x USB 3.0 , 2 X USB 2.0
LAN :
2 x Ethernet Gigabit
Wireless LAN :
Optional (802.11 b/g/n* 2.4Ghz/5.0Ghz)
Audio :
Mic-in, Line-out
Expansion Slot :
1x M.2 A key/1x M.2 B key
Data Storage
HDD / Type :
N.A
SSD :
64GB/ 128GB/ 256GB/ 512GB
Feed
Input :
24 VDC ( Adapter Included )
Extra Video Output
Type :
HDMI (DP/DVI/VGA Opt)
Max. Resolution :
1920x1080 (2560x1600)
LCD Screen
Type and Size :
21,5” LVDS (16:9 Widescreen)
Max. Resolution :
1920 x 1080 Pixels
Pixel Pitch :
0.297(H) x 0.297(W)
Max Color :
16.7 M
Brightness (cd/m2) :
250cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 Hours
Touch Screen :
21,5" Touch - Projected Capacitive
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Stainless Steel Metal Case
Front Frame :
IP65 Aluminium
Weight :
8,8 kg
Dimensions :
Variable According to Screen Size

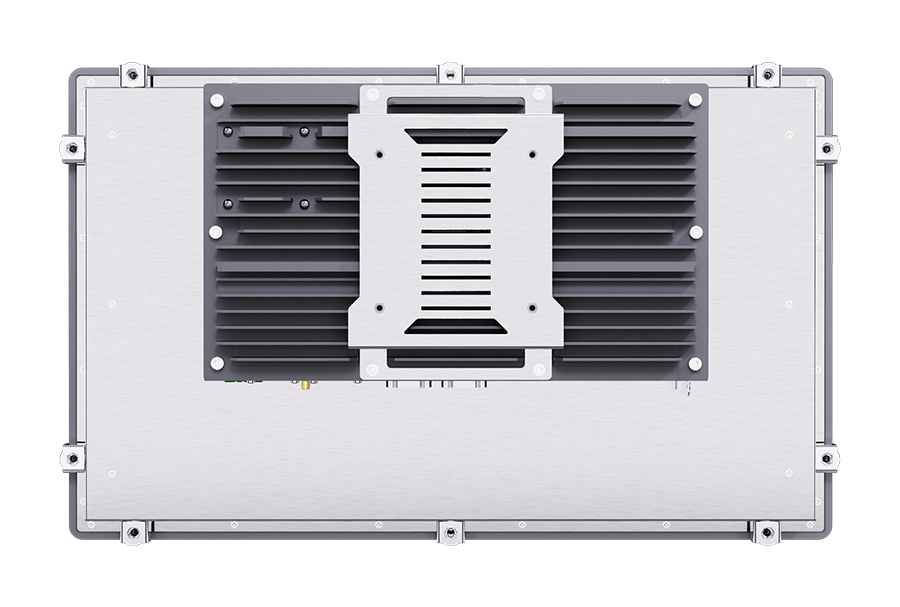

Mounting :
Panel and Vesa
Order Code
CPU :
i3 / i5 / i7
PSU :
24 VDC ( Adapter Included )
RAM :
R8 / R16 / R32
HDD :
500GB HDD(Opt) / SSD64-SSD128-SSD256-SSD512
Wifi :
Optional
