Technical Specifications
IPC-917 Ultra Series
17" Industrial Touch Panel PC

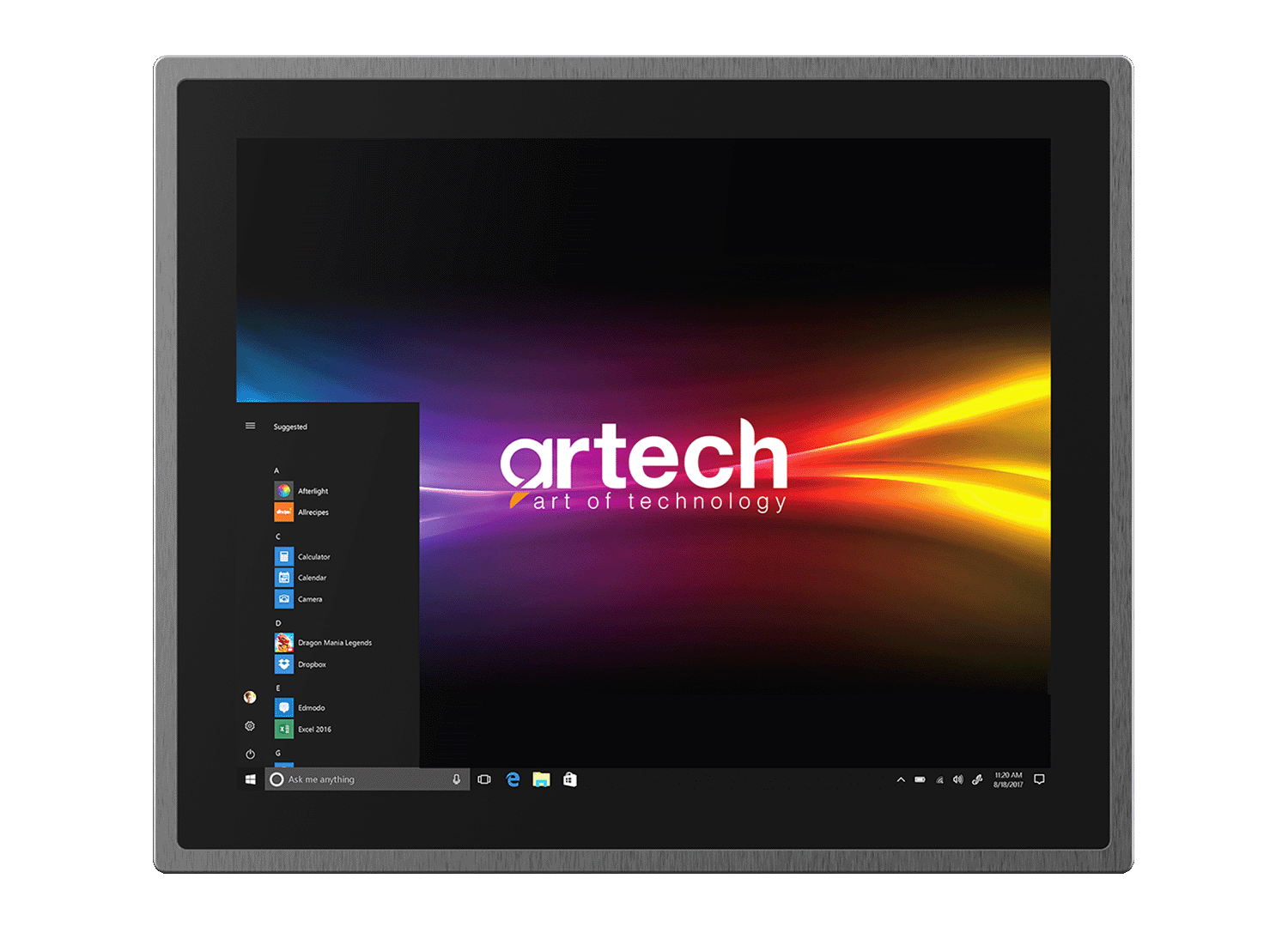

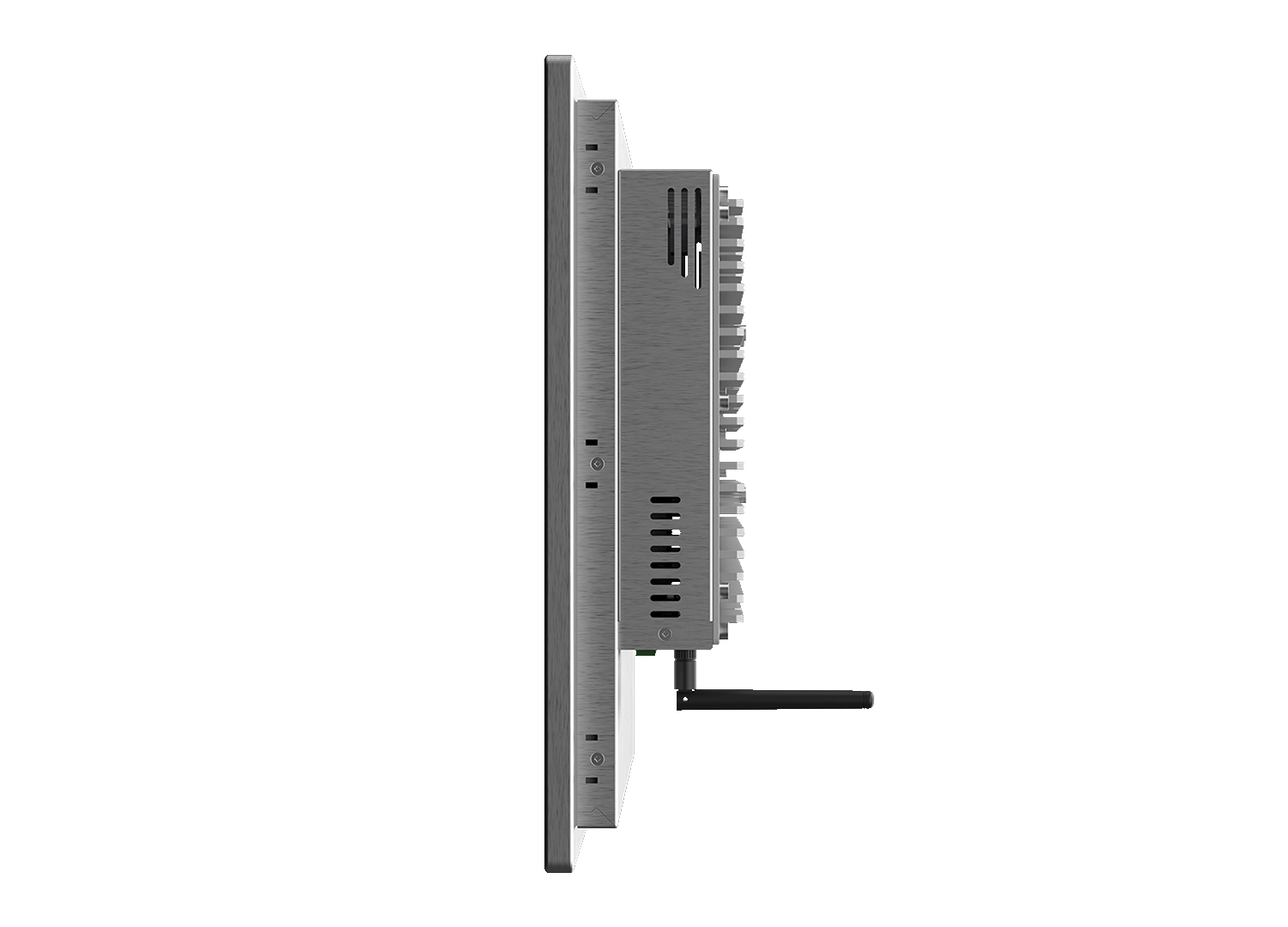

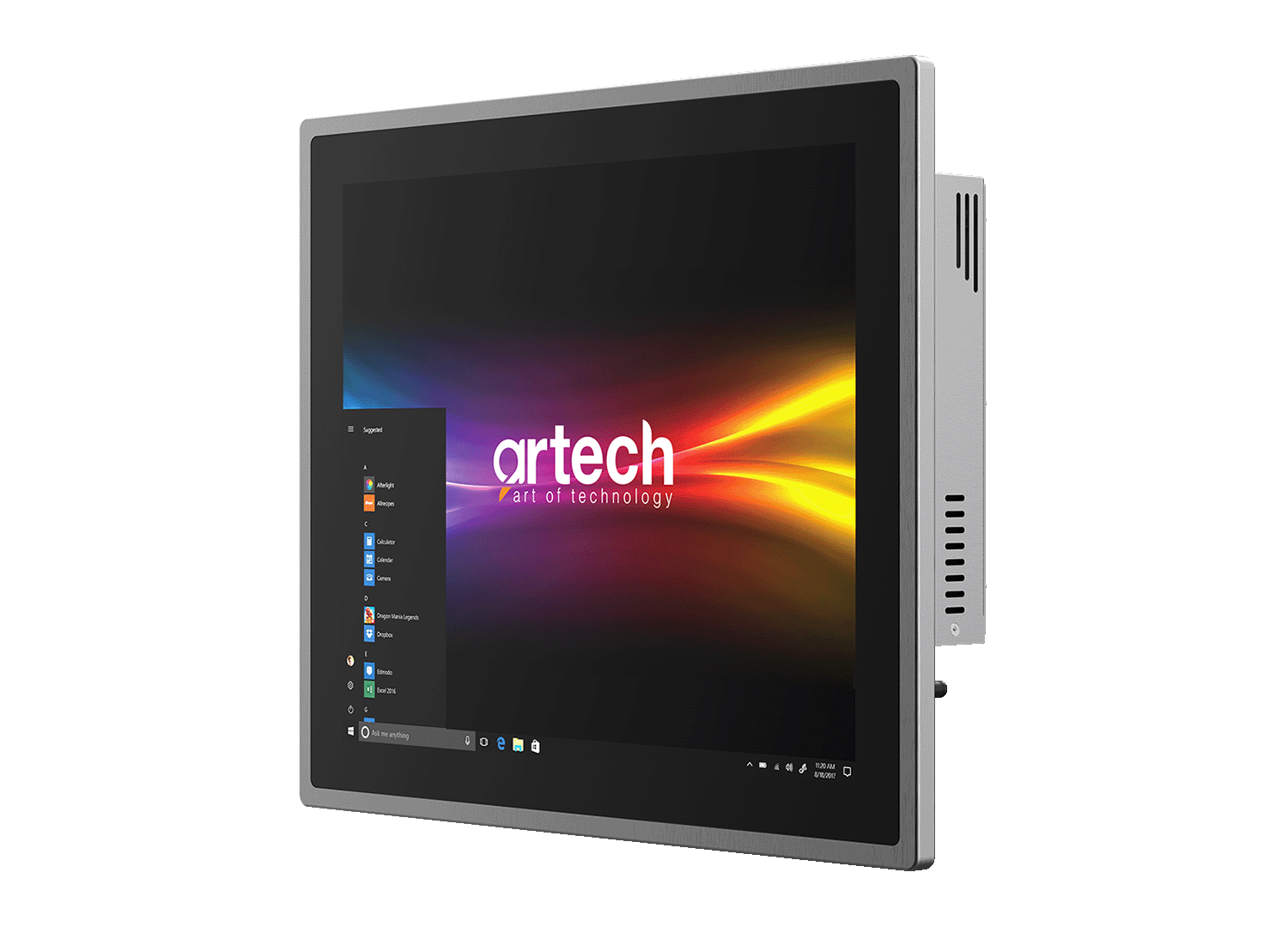

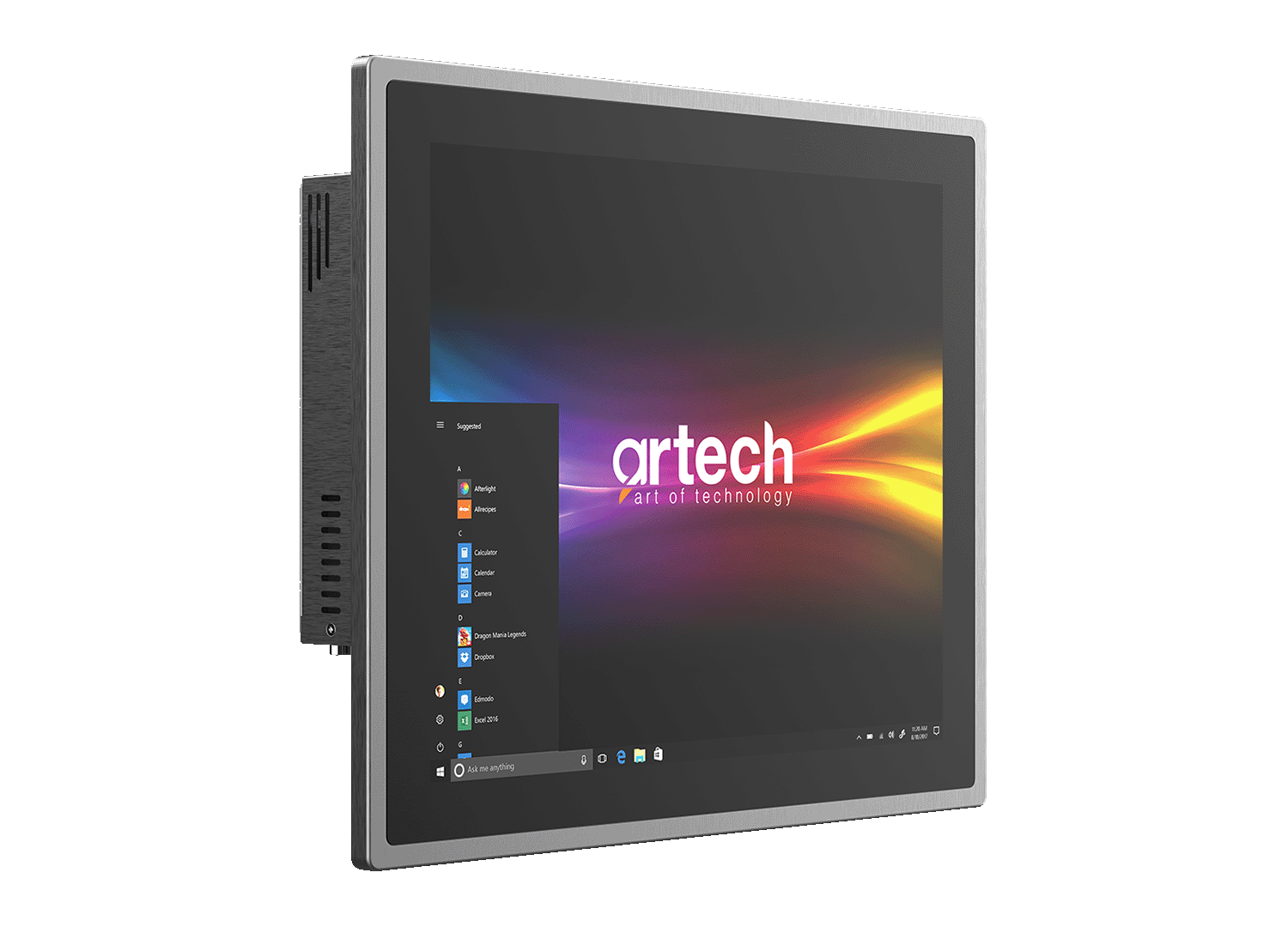

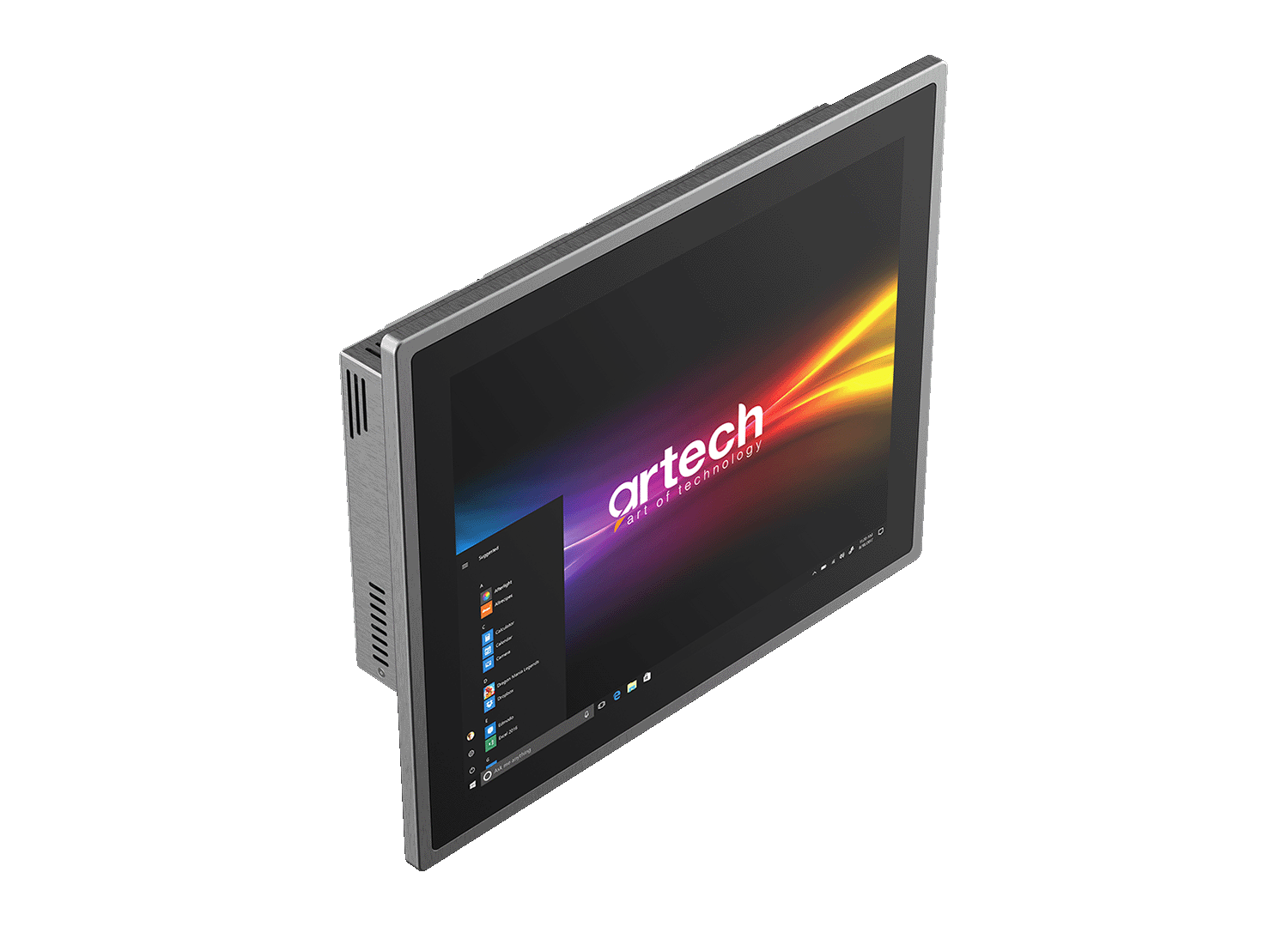

The IPC-917 Ultra Series is an industrial panel PC with a 17" 4:3 capacitive touchscreen and a 12th Generation Intel Core processor. As the only model in the series offering a 4:3 format, it integrates into legacy 17" 4:3 panel cutouts without requiring additional modification; it delivers strong performance in applications that require high processing power, such as CNC/machine tool control and MES/SCADA monitoring. With its fanless design, IP65-protected front panel, and stainless steel housing, it operates continuously 24/7 in the 0-60°C range; with support for up to 64GB of DDR4 memory and 6 USB ports (4 x USB 3.0, 2 x USB 2.0), it offers flexible configuration.
Key Features:
- Domestic Manufacturing Advantage: Fast technical support and spare parts access minimize production line downtime
- Intel Core – 12th Generation Processor: High processing power; lag-free performance in demanding applications such as MES/SCADA and multitasking
- 17" 4:3 Format: Integration into legacy panel cutouts without requiring additional labor/modification — saves time and cost in retrofit projects

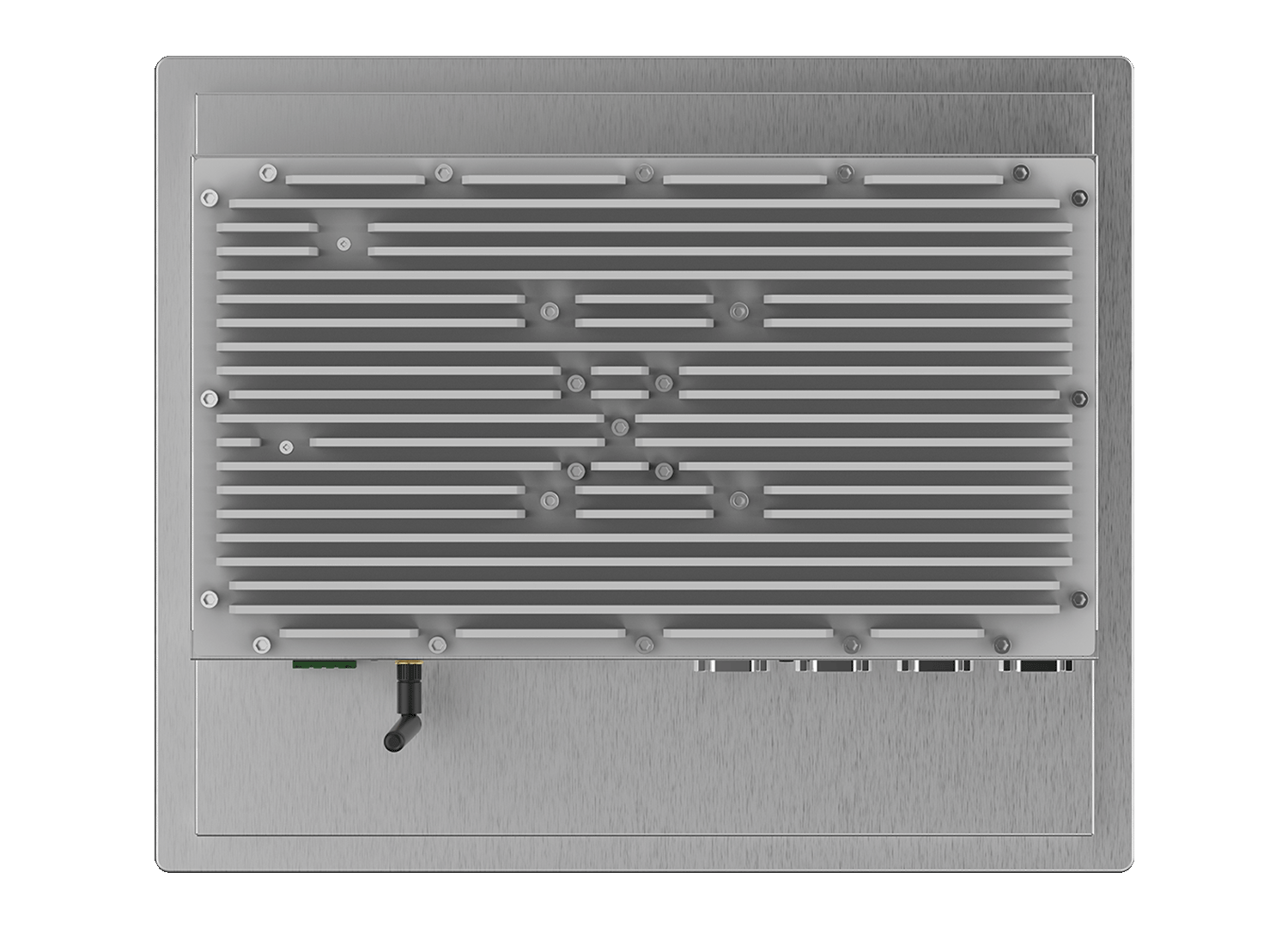

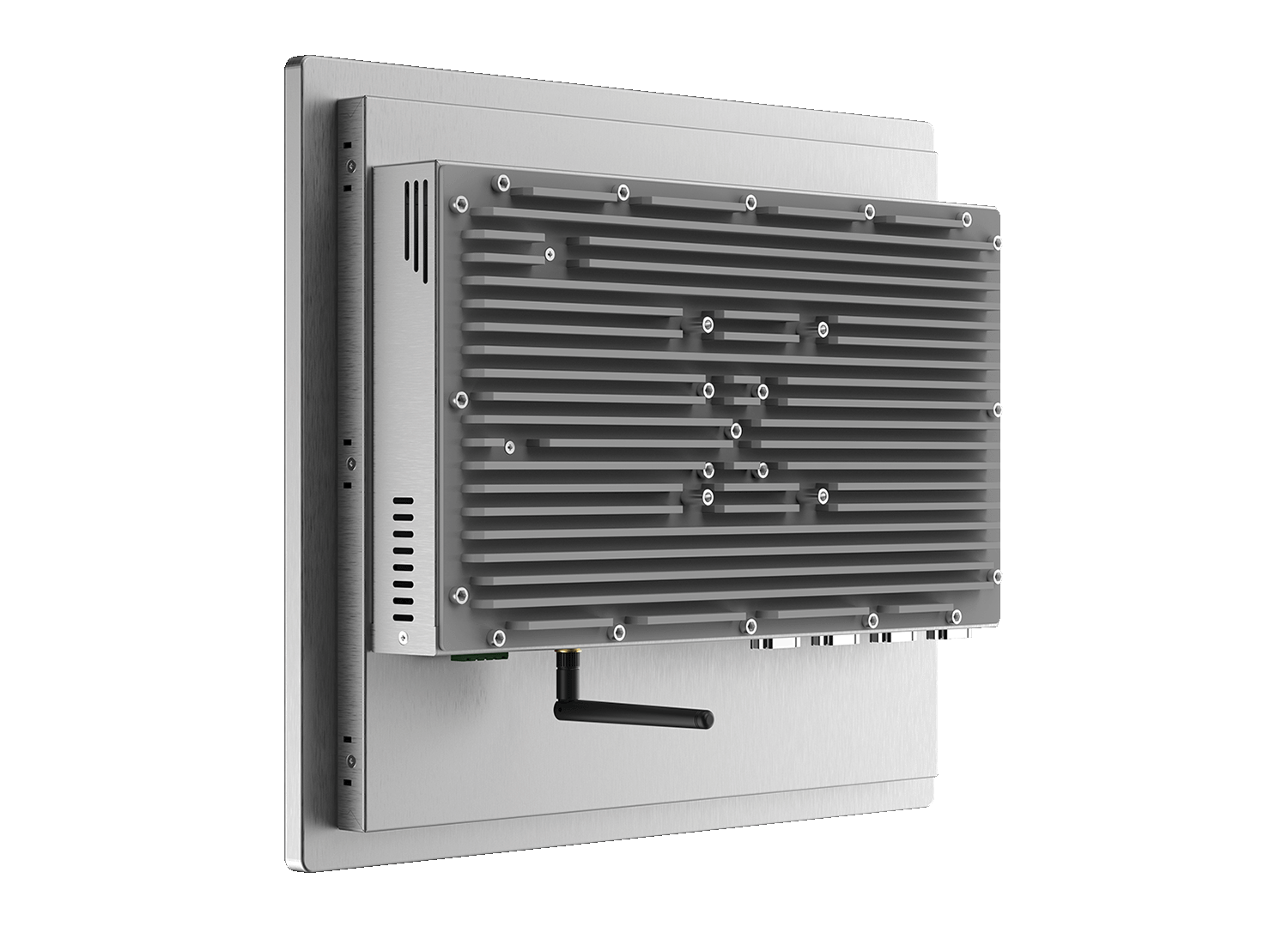

- Improved Cooling Design: Long-term stable operation despite the fanless structure

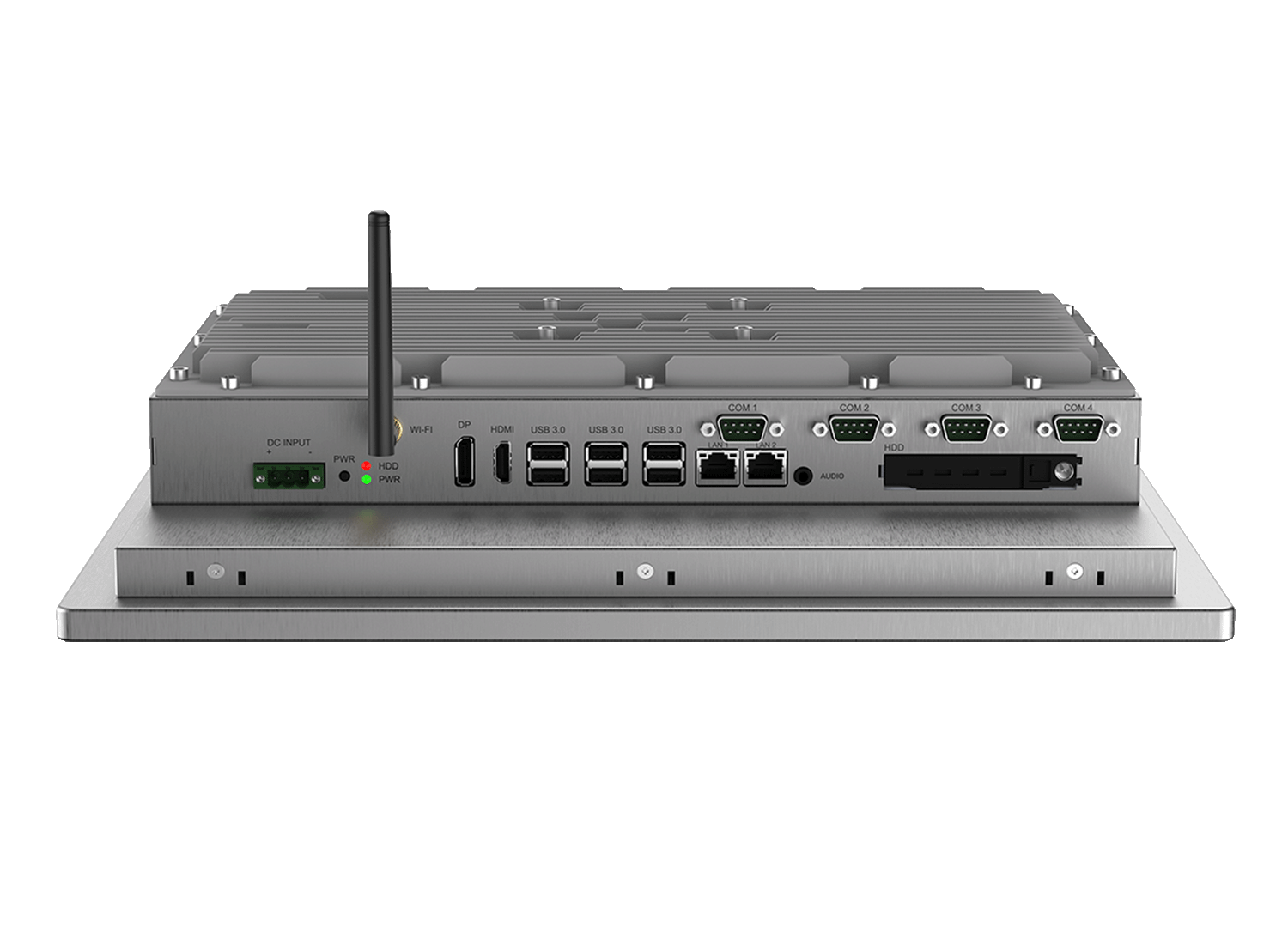

- 6 USB Ports (4 x USB 3.0, 2 x USB 2.0): Flexibility for connecting additional peripherals and accessories
- Capacitive Multi-Flat Touch Technology: Uninterrupted, multi-point touch experience
- Easily Removable and Replaceable Disk Slot: On-site disk replacement within minutes in case of failure, reducing production loss
- 0-60°C Operating Range: Operates reliably on press, casting, and machine tool lines with high heat
- IP65 Front Panel Protection: Superior protection against dust and liquid splashes
- Stainless Steel Housing: Corrosion resistance and long service life in environments with high moisture and chemical levels
- Suitable for 24/7 Operation: Runs without downtime risk in continuous shift patterns
- Flexible Power Supply Options (12/24 VDC): Integrates with different panel and machine power systems without requiring an additional converter
Looking for a custom configuration? Talk to our sales team
Example Application Areas
- Renovation of Existing Panel Cutouts (Retrofit): Thanks to its 4:3 format, it can be mounted into legacy 17" 4:3 panel cutouts without requiring additional modification.
- CNC / Machine Tool Operator Panels: On-machine control stations running CAM/CNC software with high processor power.
- MES/SCADA Monitoring Stations: Production line terminals where multiple data sources are processed simultaneously, powered by 12th Generation Intel Core performance.
- Injection Molding / Press Line Control Panels: Integration with existing equipment via the 4:3 format in high-heat environments.
- Image Processing Pre-Analysis Stations: Quality control and machine vision applications that require high CPU power.
Why IPC-917 Ultra?
- If a smaller 15.6" 16:9 screen + an economical processor is sufficient → IPC-916 Ultra
- Need a larger 18.5" 16:9 Full HD screen + 21.5" clarity in narrow spaces → IPC-918 Ultra
- Need a 4:3 format panel cutout + high processor performance (12th Generation Intel Core) → IPC-917 Ultra
Warranty and Technical Support
- Up to 3 years of standard warranty (covering manufacturing/workmanship defects)
- 5-year spare parts availability guarantee + 5-year guarantee of operation with equivalent replacement parts
- Initial response and fault diagnosis within 5 business days at the latest; repair/parts replacement within 15 business days at the latest after approval
- Site surveys, installation/commissioning, and periodic maintenance are all carried out by Artech's own technical team
Let's Determine the Right Configuration for Your Project Together
The IPC-917 Ultra can be configured to your project's needs with a range of processor, RAM, storage, and connectivity options. Our team will help you determine the most suitable model and configuration based on your site's conditions (temperature, dust, hygiene requirements), free of charge.
