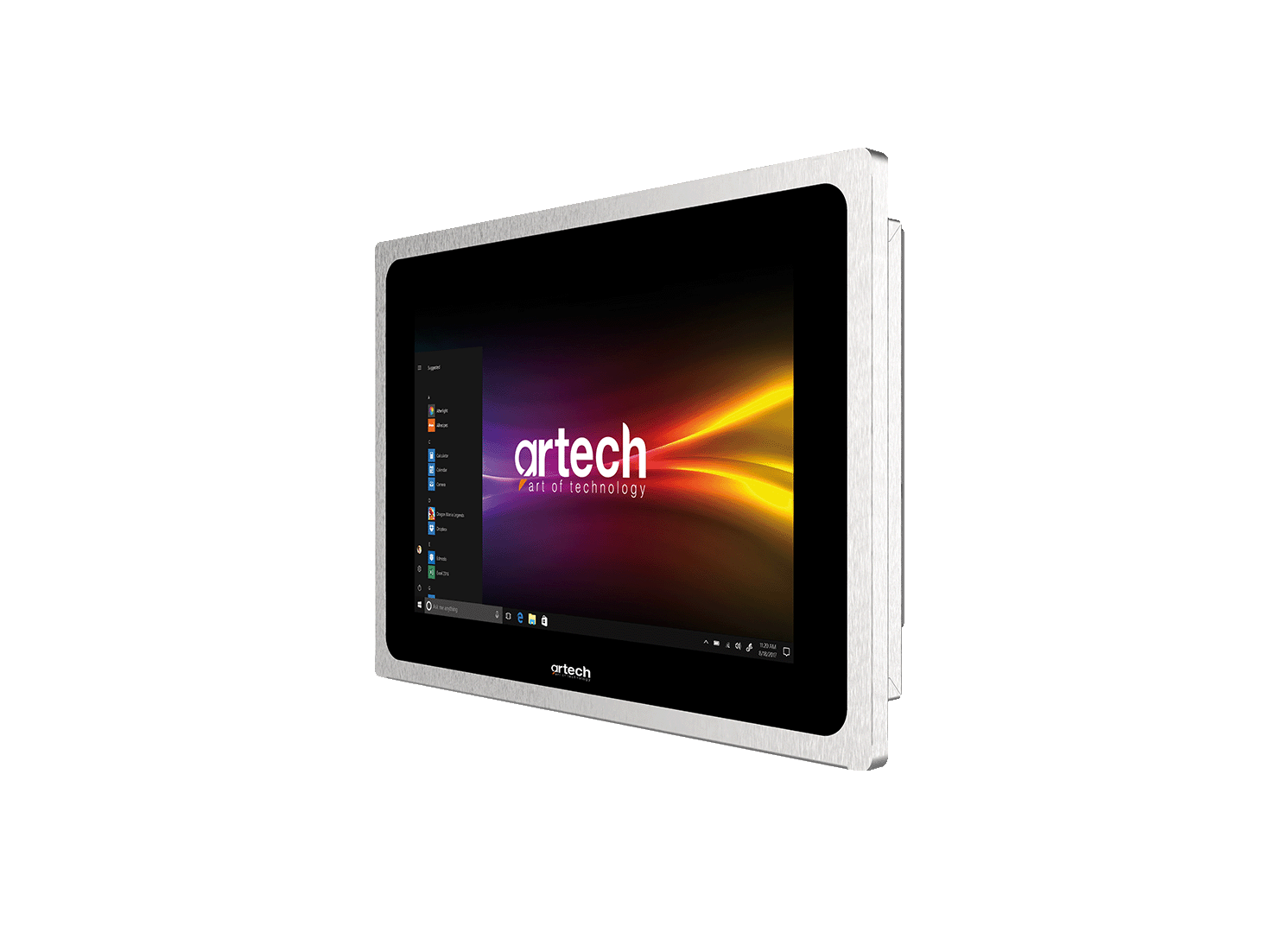

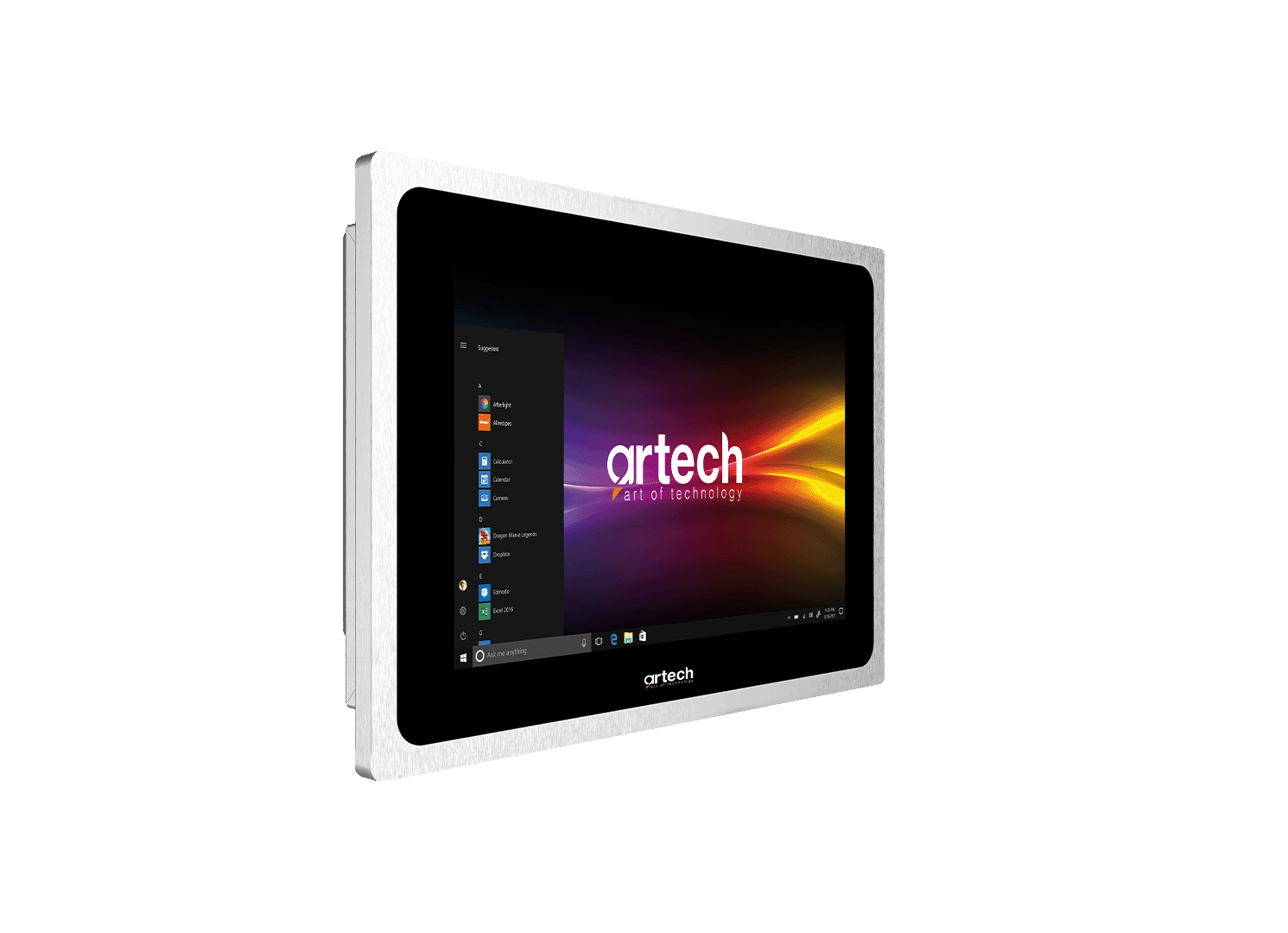

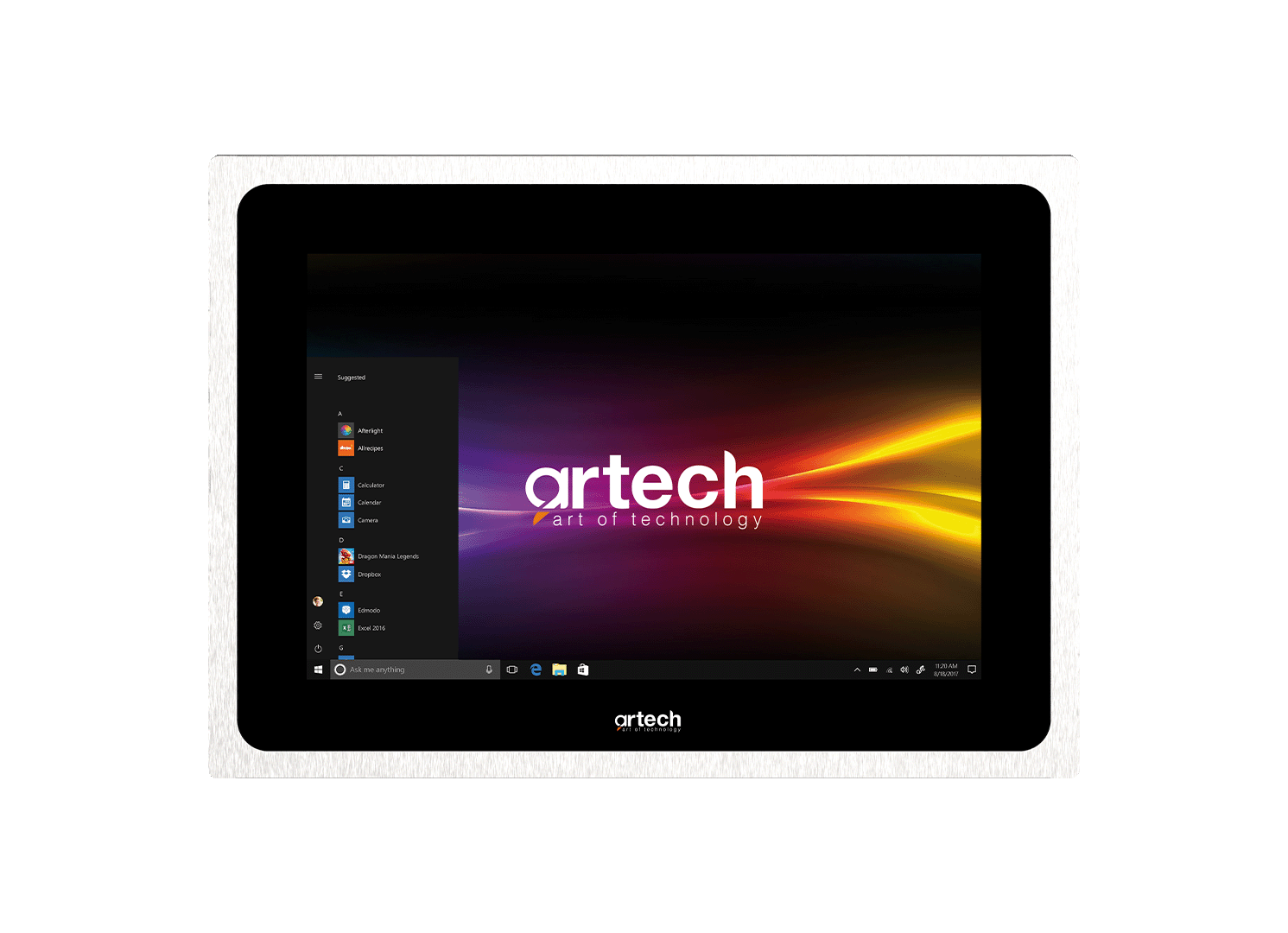

IPC-810 Stainless Series

10.1" Compact Industrial Touch Panel PC

The IPC-810 Stainless Series is an industrial panel PC with a 10.1" capacitive touchscreen and an Intel Core i5 11th Generation (fanless) processor. As the most compact model in the Stainless family, it delivers high-end processing power in tight installation spaces (on-machine, console, narrow cabinet) where standard panel PCs won't fit. With its IP65-protected front panel and fully enclosed stainless steel housing, it operates continuously 24/7 across a 0-60°C range; its 6 USB ports and dual HDMI output (the widest connectivity options in the series for this size) provide flexible integration.

Key Features:

• Domestic Manufacturing Advantage: Fast technical support and access to spare parts, minimizing production line downtime
• Intel Core i5 11th Generation Processor (fanless): High-end processing power even in a compact size; sufficient performance for applications requiring multitasking and data processing
• 10.1" Compact Body: Integrates into tight installation spaces (on-machine, console, narrow cabinet) where standard panel PCs won't fit

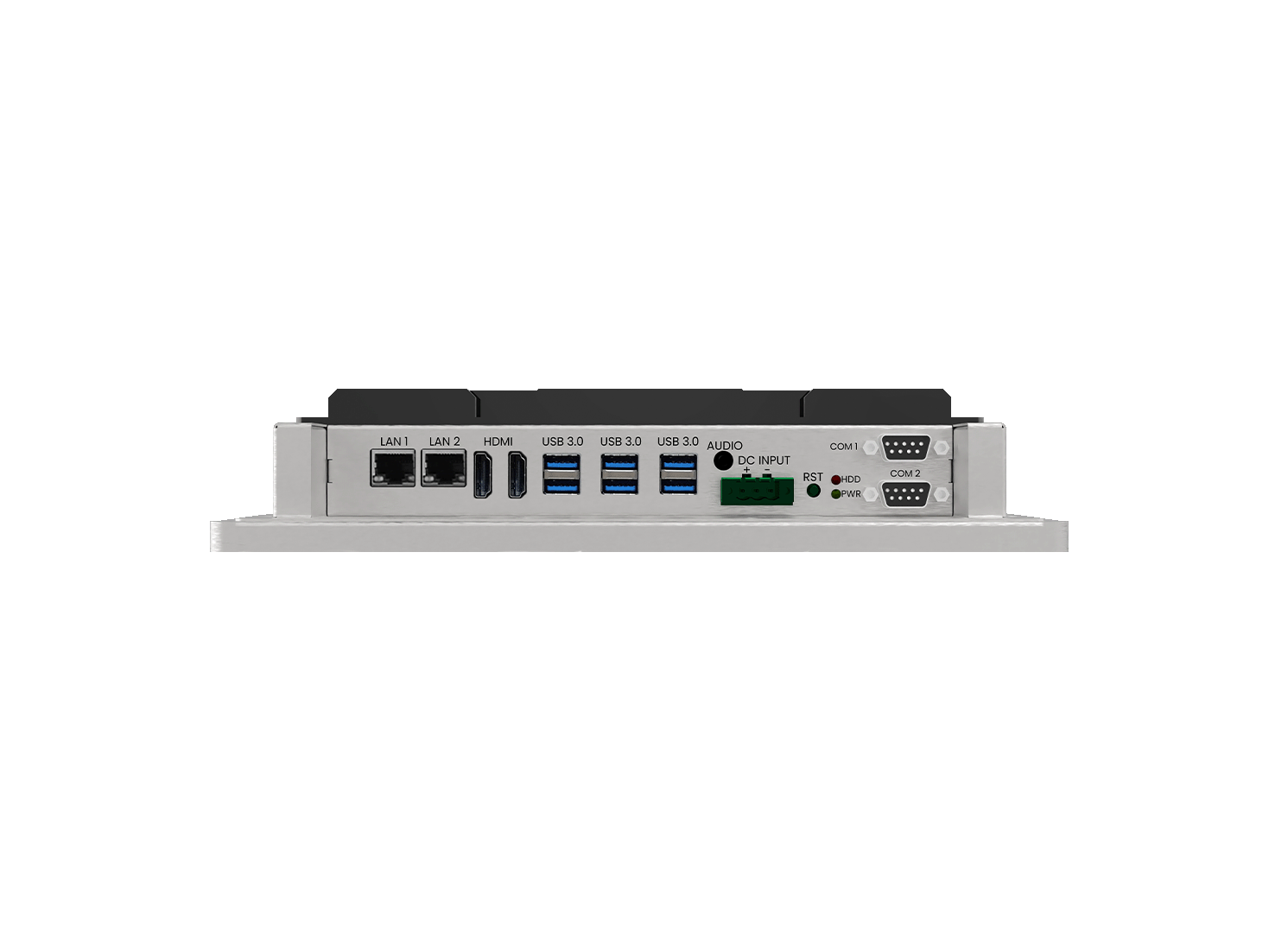

• 6 USB ports (4x USB 3.0, 2x USB 2.0): The widest port flexibility in the series for this screen size; additional peripheral connectivity
• 2x HDMI Display Output: Connection for an additional monitor or display, multi-point viewing
• Capacitive Multi-Touch (True Flat Multi Touch): Precise, uninterrupted touch interaction
• IP65 Front Panel Protection: Superior protection against dust and liquid splashes
• 0-60°C Operating Range: Operates reliably in high-temperature production environments
• Fully Enclosed Stainless Steel Housing: Corrosion resistance and long service life in environments with high chemical/moisture levels and requiring hygiene
• Suitable for 24/7 Operation: Runs without downtime risk in continuous shift environments
• Flexible Power Options (12/24 VDC): Integrates with different panel and machine power systems without requiring an additional converter

Looking for a custom configuration? Talk to our sales team

Example Application Areas

• Compact On-Machine Operator Panels: A compact control panel that can be mounted directly onto CNC, packaging, or wrapping machines.
• Narrow Cabinet / Console Spaces: HMI needs on narrow electrical cabinet or console surfaces where standard 15"+ panel PCs won't fit.
• Portable / Mobile Equipment Control Units: Compact control terminals mounted on forklifts, AGVs, or other mobile equipment.
• Entry Point Control/Confirmation Stations: Compact stations for single-transaction tasks such as shift check-in or quality approval points.
• Space-Constrained Monitoring Points in Food/Pharmaceutical Production: Point control on narrow-space production lines requiring hygiene, with a stainless steel housing.

Why IPC-810 Stainless?

• If a larger 15" 4:3 screen + an economical CPU is sufficient → IPC-815 Stainless
• Need a larger 15.6" Full HD screen + the same CPU segment (i5) → IPC-816 Stainless
• If mounting space is extremely limited and you need high-end CPU performance in a compact body → IPC-810 Stainless

Warranty and Technical Support

• Up to 3 years of standard warranty (covering manufacturing/workmanship defects)
• 5-year spare parts availability guarantee + 5-year guarantee of operation with equivalent replacement parts
• Initial response and fault diagnosis within 5 business days at the latest; repair/parts replacement within 15 business days at the latest after approval
• Site surveys, installation/commissioning, and periodic maintenance are all carried out by Artech's own technical team

Let's Determine the Right Configuration for Your Project Together

The IPC-810 Stainless can be configured to your project's needs with a range of processor, RAM, storage, and connectivity options. Our team will help you determine the most suitable model and configuration based on your site's conditions (temperature, dust, hygiene requirements), free of charge.

Get a Free Technical Consultation
