DPC-327 AND Series

Artech Professional Information Display: Optimal Solution for Digital Broadcasts

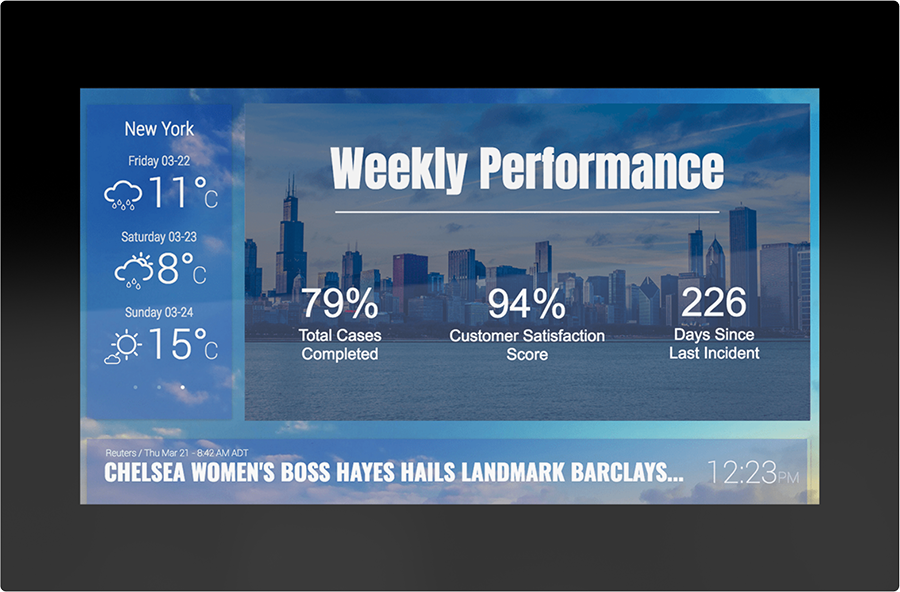

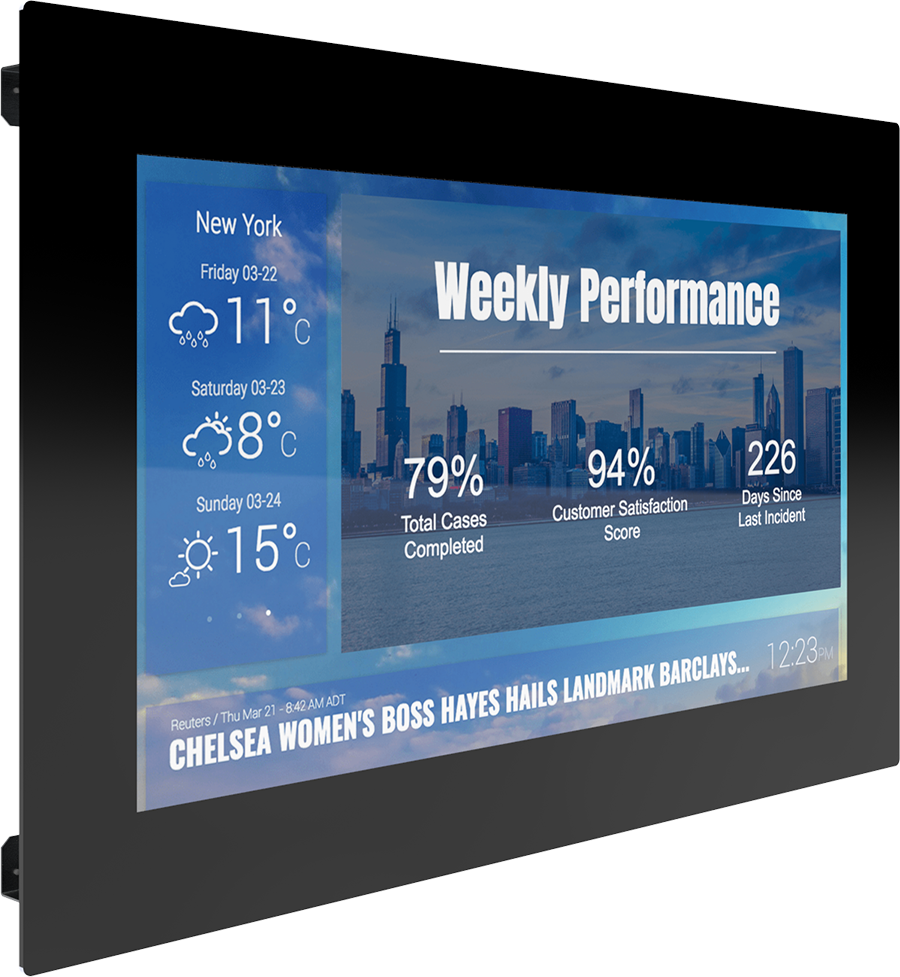

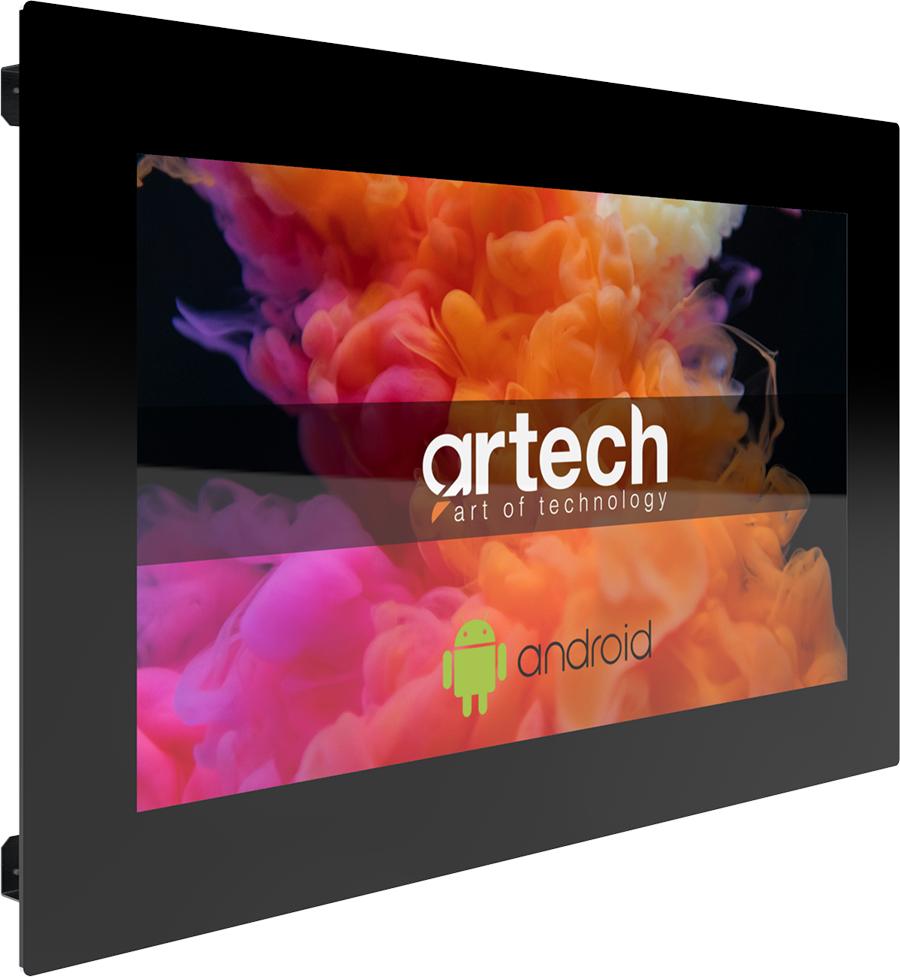

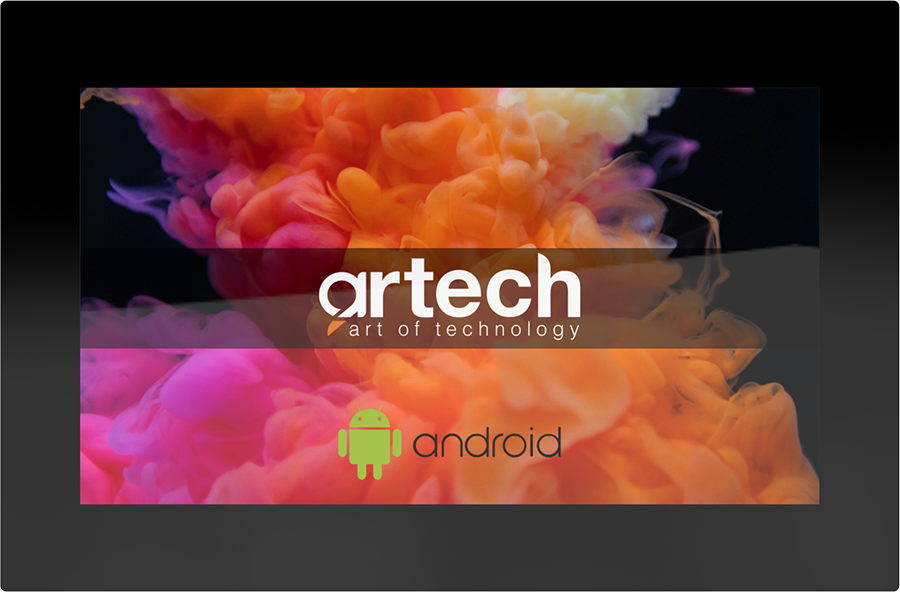

The Artech DPC-327 AND Series Professional Information Displays are specifically designed for digital broadcasting systems, providing a flawless, maintenance-free device that meets all their requirements. These 27-inch Android displays offer the most common and effective communication solution to reach your target audience. They feature a shock-resistant stainless steel body, 3mm anti-glare shatterproof glass, and precise filtering for superior protection against dust and humidity. Additionally, remote connection capabilities for problem analysis and resolution simplify your technical support processes.

Key Features:

Shock-Resistant Metal Body: Ensures long-lasting use with a robust structure.
3mm Anti-Glare Shatterproof Glass: Non-reflective and resistant to breakage.
Precise Filtering: Effective protection against dust and humidity.
Remote Connection: Facilitates rapid analysis and resolution of issues via remote technical support.
Corporate Logo and Color Options: Customization to align with your brand's aesthetics.

Custom Design

Sustainable Product

Support with Remote Connection

Sectors

Technical Specifications

System

Cache :

N.A.

Memory :

2GB

Video RAM :

N.A.

Control :

N.A.

Watchdog Timer :

Support

Android OS :

Android 8.0

Processor :

4x ARM Cortex-A17 @ 1.61 GHz

I/O

Serial Port :

N.A.

USB Port :

2 x USB 2.0

LAN :

1x Lan

Wireless LAN :

802.11 b / g (Optional)

Audio :

Support L/R phone jack and 10W / 8Rx2

Data Storage

EEMC :

16GB Flash

HDD / Type :

N.A

SSD :

N.A

Feed

Input :

220VAC

Extra Video Output

Type :

HDMI/DP/DVI/VGA (Optional)

Max. Resolution :

1920x1080(2560x1600 Optional)

LCD Screen

Type and Size :

27" LVDS

Max. Resolution :

1920x1080

Pixel Pitch :

0.311mm x 0.311mm

Max Color :

16.7 M

Brightness (cd/m2) :

300cd

Contrast Ratio :

1000/1

Viewing Angle :

160°(H),160°(V)

Back Light MTBF :

50,000 hours

Mechanical & Environmental Features

Operating Temperature :

0 ~ 60°C

Storage Humidity :

5 ~ 95% (non-condensing)

Case :

Heavy-Duty Metal Case

Front Frame :

Metal Frame / Glass (Optional)

Weight :

Variable according to screen size (1—5 kg)

Dimensions :

Variable by screen size

Mounting :

Surface Mount / Built-in

Order Code

CPU :

4x ARM Cortex-A17 @ 1.61 GHz

PSU :

AC - 220VAC

RAM :

HDD :

EEMC 16GB Flash

Wifi :

Optional
