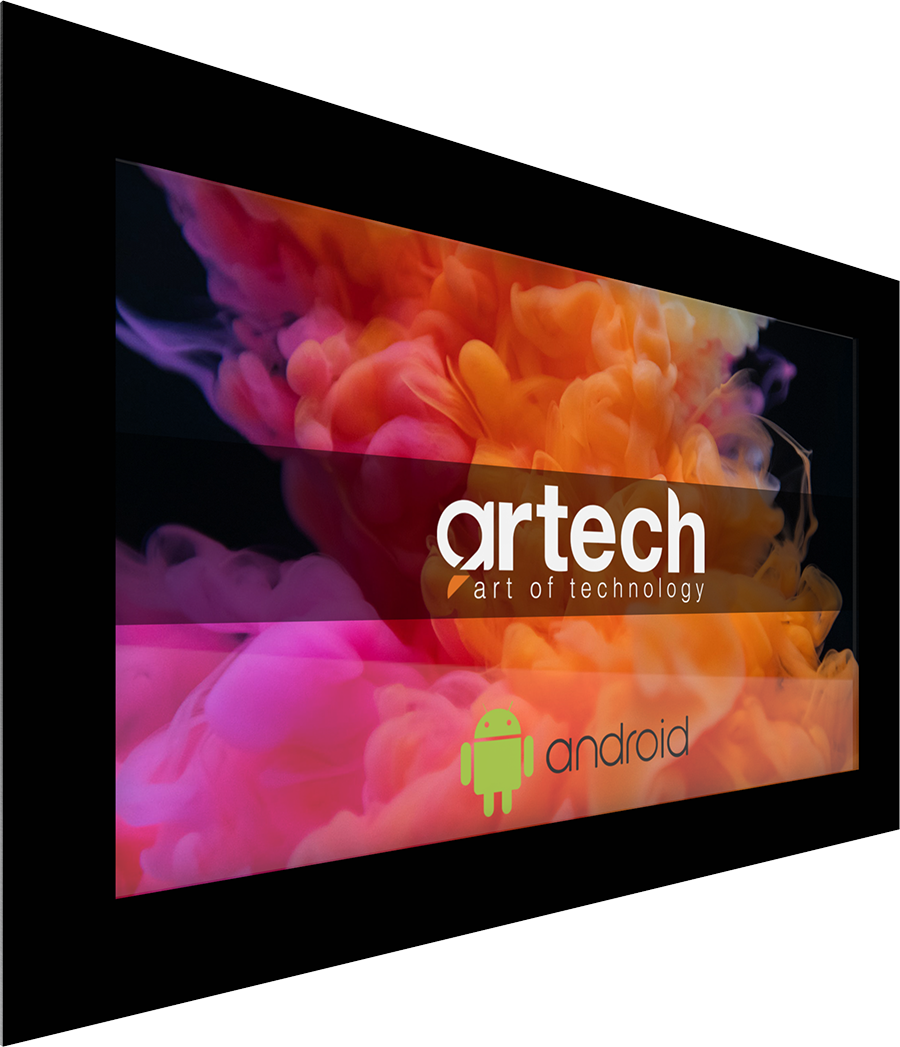

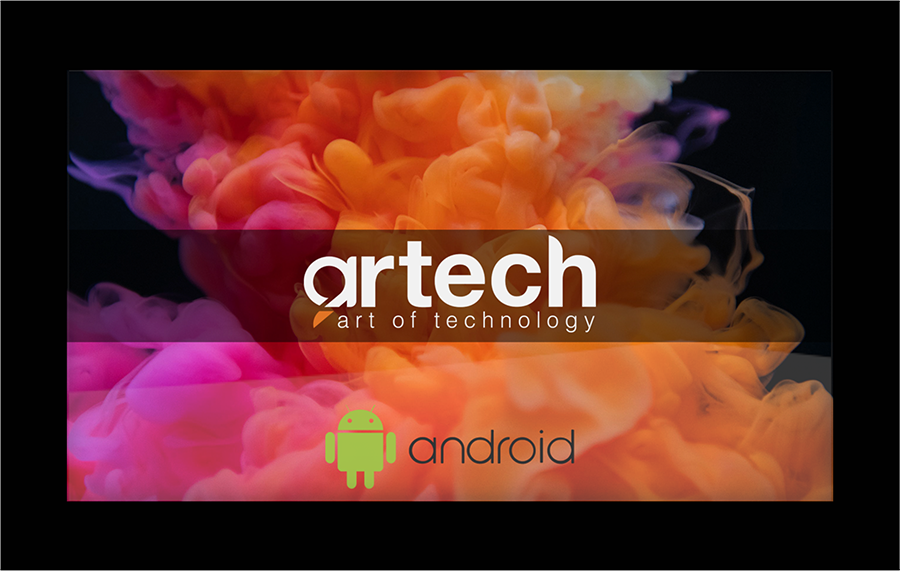

DPC-343 AND Series

Information screens that are developed considering your corporate needs with their ability to be managed from one center and publish different content. It offers the most common and effective communication solution to reach your customers.

"Digital Signage System", which is the most effective communication instrument used by many companies operating in different sectors all over the world today; has the advantages of cost efficiency, time saving, multi-purpose use, real-time announcement publishing and creating a prestigious corporate image.

Artech Information Displays,stand out with the ability to be managed from a single center and publish different contents.

  • Corporate Color Options
  • Stylish Design Suitable for Elevator Structure
  • Shockproof Stainless Metal Body
  • 3mm. Anti-Glare Unbreakable Glass
  • Protection Against Dust and Humidity with Sensitive Filter
  • Remote Connection Problem Analysis and Solution
Sustainable Product
Sustainable Product
Support with Remote Connection
Support with Remote Connection
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo

Sectors

Technical Specifications

System
CPU :
All Winner R18, Quad Core,Cortex A53 1.5 GHz
Cache :
N.A.
Memory :
1G LPDDR3 (Option 2G)
Video RAM :
N.A.
Control :
N.A.
Watchdog Timer :
Support
System :
Android 6.0
I/O
Serial Port :
N.A
USB Port :
2 x USB 2.0
LAN :
1x Lan
Wireless LAN :
802.11 b / g (Optional)
Audio :
Support L/R phone jack and 10W / 8Rx2
Data Storage
EEMC :
8G(32 GB OPS)
HDD / Type :
N.A
SSD :
N.A
Feed
Input :
220VAC
LCD Screen
Type and Size :
43" LVDS
Max. Resolution :
1920x1080
Pixel Pitch :
0.311mm x 0.311mm
Max Color :
16.7 M
Brightness (cd/m2) :
300cd
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Extra Video Output
Type :
HDMI (Optional)
Max. Resolution :
1920x1080(Optional)
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Metal Frame / Glass (Optional)
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
1—5 kg) Dimensions
Mounting :
Surface Mount / Built-in
Order Code
CPU :
Cortex A53
PSU :
AC - 220VAC
RAM :
R2
HDD :
EEMC 8G, EEMC 32G
Wifi :
Optional

Support

Please contact us for information about the products or for technical support.
