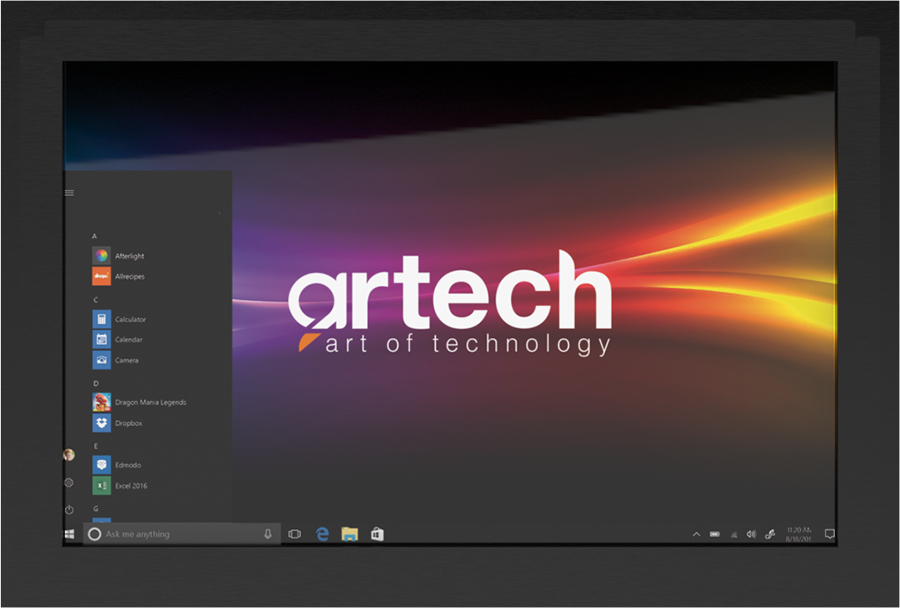

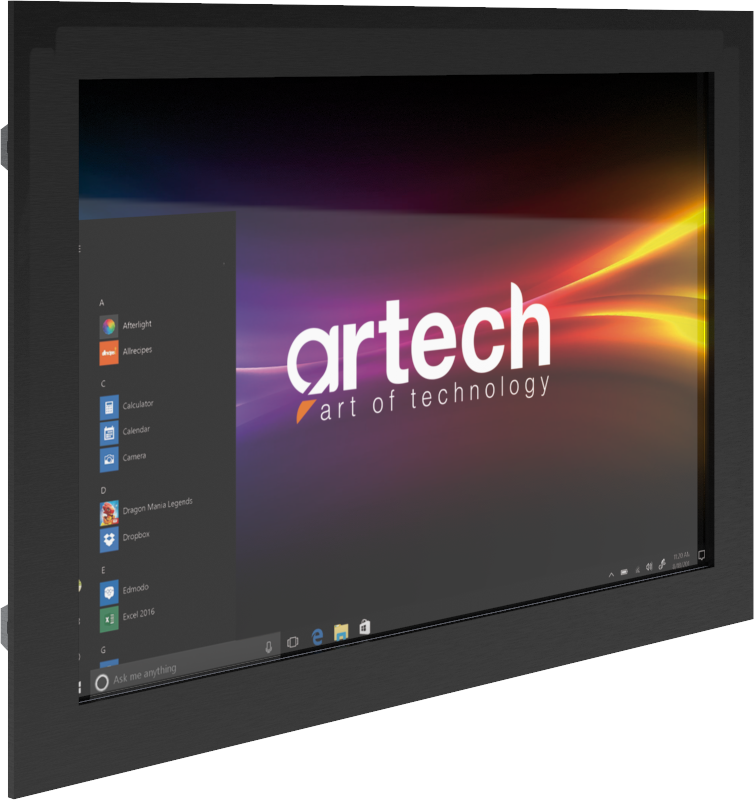

OPC-317 Series

  • Access to Patient Information with HIS
  • Slim Industrial Stainless Case
  • 0-60 ° C Operating Temperature
  • Corporate Color and Logo Options
Elegant Design
Elegant Design
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo
Durable and Long Lasting
Durable and Long Lasting

Sectors

Technical Specifications

System
CPU :
Intel® Celeron™ Processor J1900 Low Power Fanless
Cache :
2MB
Memory :
2 x DDR3 SoDIMM max 4GB / 8GB Pixel Pitch
Video RAM :
Max 128 MB shared memory
Control :
N.A.
Watchdog Timer :
255 Level Reset
System Fan :
1 x 4cm / 10CFM
I/O
Serial Port :
3 x RS-232 ports
Parallel Port :
N.A.
USB Port :
4 x USB 2.0
KB / MS :
1 x PS2 K/B and Mouse
LAN :
1 x LAN Realtek Gigabit Ethernet,
Wireless LAN :
802.11 b / g (Optional)
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
MiniPCIe
Data Storage
HDD / Type :
2.5” HDD/SSD
Feed
Input :
110 / 220VAC - 12 / 24VDC - PoE
LCD Screen
Type and Size :
17" / 4:3
Max. Resolution :
1280x1024, XGA
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
350
Contrast Ratio :
1000/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
N.A
Extra Video Output
Type :
HDMI
Max. Resolution :
1600 x 1200
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Glass
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Built-in
Order Code
CPU :
J1900
PSU :
AC110/220, DC12/24, PoE
RAM :
R4, R8
HDD :
HDD 320GB, SSD 32 GB, SSD 64 GB
Wifi :
Optional

Support

Please contact us for information about the products or for technical support.
