TPC-310 Series

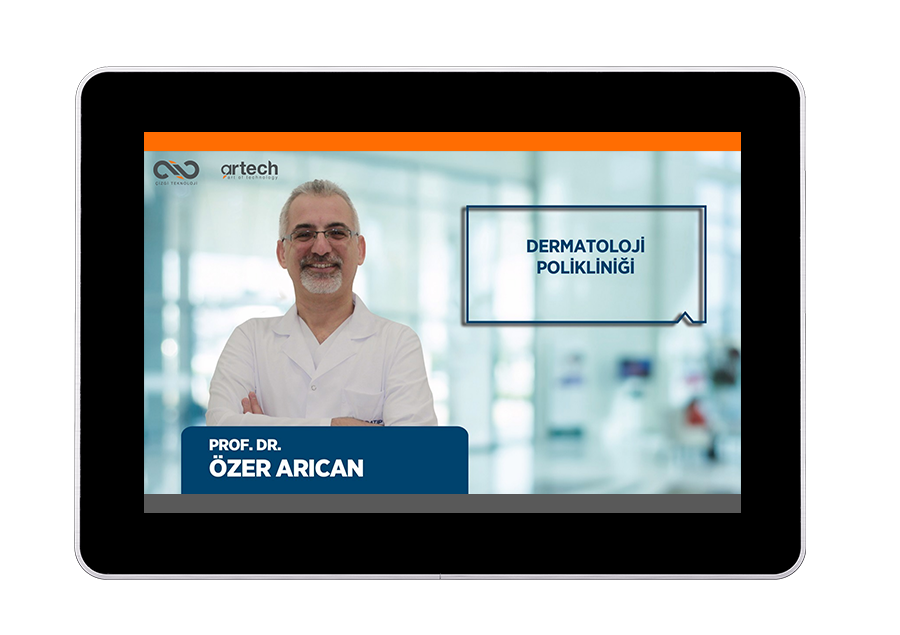

Artech Door Information Screens are specially designed for your corporate identity and architectural decoration and used for guidance and information purposes in places such as hotels, hospitals, meeting rooms, conference rooms.

  • Publishing Current Information and Announcements
  • Special Design for Your Institution
  • Durable Industrial Stainless Case
  • 0-60 ° C Working Temperature
  • Instant Connection Analysis and Solution Support via remote connection
Elegant Design
Elegant Design
Customizing with Corporate Color and Logo
Customizing with Corporate Color and Logo
Durable and Long Lasting
Durable and Long Lasting

Sectors

Technical Specifications

System
CPU :
Intel® Celeron™ Processor J1900 Low Power Fanless
Cache :
2MB
Memory :
2 x DDR3 SoDIMM max 4GB / 8GB
Video RAM :
Max 128 MB shared memory
Control :
N.A.
Watchdog Timer :
255 Level Reset
System Fan :
1 x 4cm / 10CFM
I/O
Serial Port :
3 x RS-232 ports
Parallel Port :
N.A.
USB Port :
4 x USB 2.0
KB / MS :
1 x PS2 K/B and Mouse
LAN :
1 x LAN Realtek Gigabit Ethernet,
Wireless LAN :
802.11 b / g (Optional)
Audio :
Line in & out (AC’97 codec audio)
Expansion Slot :
MiniPCIe
Data Storage
HDD / Type :
2.5” HDD/SSD
Feed
Input :
110 / 220VAC - 12 / 24VDC - PoE
LCD Screen
Type and Size :
10.1” / 16:9
Max. Resolution :
1280 x 800
Pixel Pitch :
0.297mm x 0.297mm
Max Color :
16.7 M
Brightness (cd/m2) :
250cd
Contrast Ratio :
700/1
Viewing Angle :
160°(H),160°(V)
Back Light MTBF :
50,000 hours
Touch Screen :
10.1” Capacitive Touch
Extra Video Output
Type :
HDMI
Max. Resolution :
1920 x 1080
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Metal Case
Front Frame :
Glass
Weight :
Variable according to screen size (1—5 kg)
Dimensions :
(WxHxD) Variable by screen size
Mounting :
Built-in
Order Code
CPU :
J1900
PSU :
AC110/220, DC12/24, PoE
RAM :
R4, R8
HDD :
HDD 320GB, SSD 32 GB, SSD 64 GB
Wifi :
Optional

Support

Please contact us for information about the products or for technical support.
